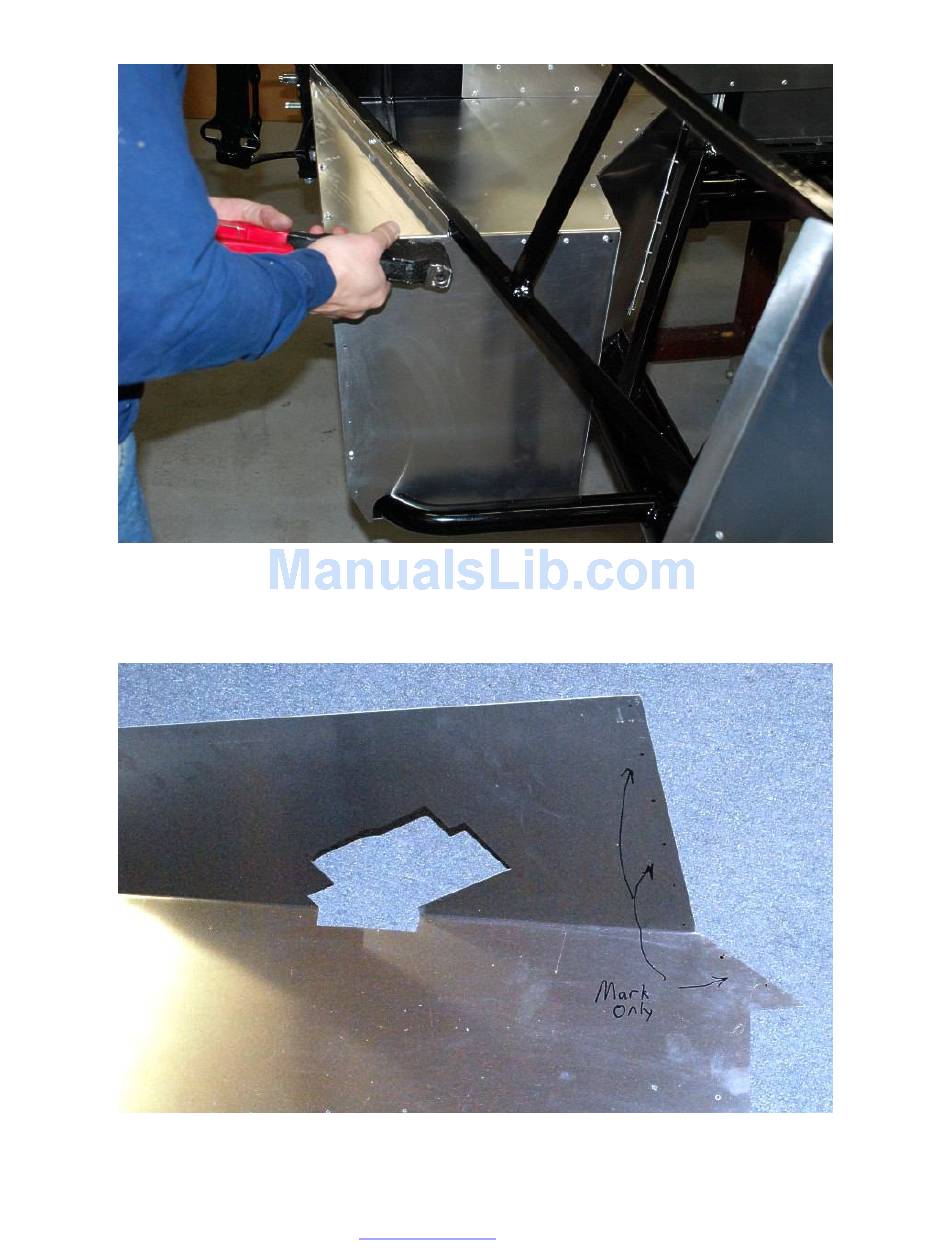

Silicone the remaining flanges then install the outer wall/top on the footbox with rivets. Make sure the

rear edge is flush to the chassis and not caught up on the door hinge before you start riveting.

Passenger Floor

Drill the passenger side floor where it was marked to attach to the chassis. Mark the two front flanges

but do not drill yet.
