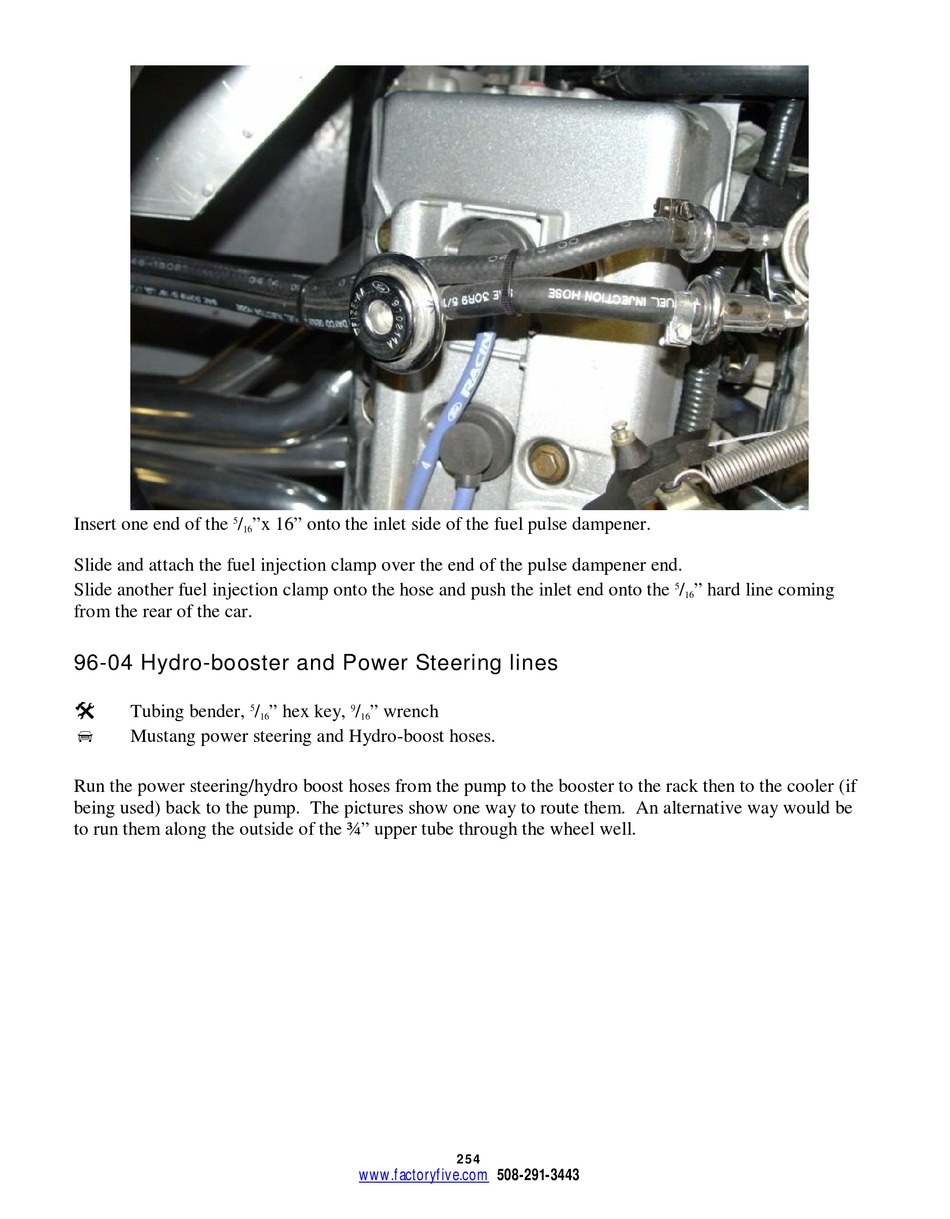

Insert one end of the 5 /
16
Slide and attach the fuel injection clamp over the end of the pulse dampener end.
Slide another fuel injection clamp onto the hose and push the inlet end onto the
from the rear of the car.

96-04 Hydro-booster and Power Steering lines


Tubing bender,

Mustang power steering and Hydro-boost hoses.
Run the power steering/hydro boost hoses from the pump to the booster to the rack then to the cooler (if
being used) back to the pump. The pictures show one way to route them. An alternative way would be
to run them along the outside of the ¾" upper tube through the wheel well.
"x 16" onto the inlet side of the fuel pulse dampener.
5 / " hex key, 9 / " wrench
16 16
