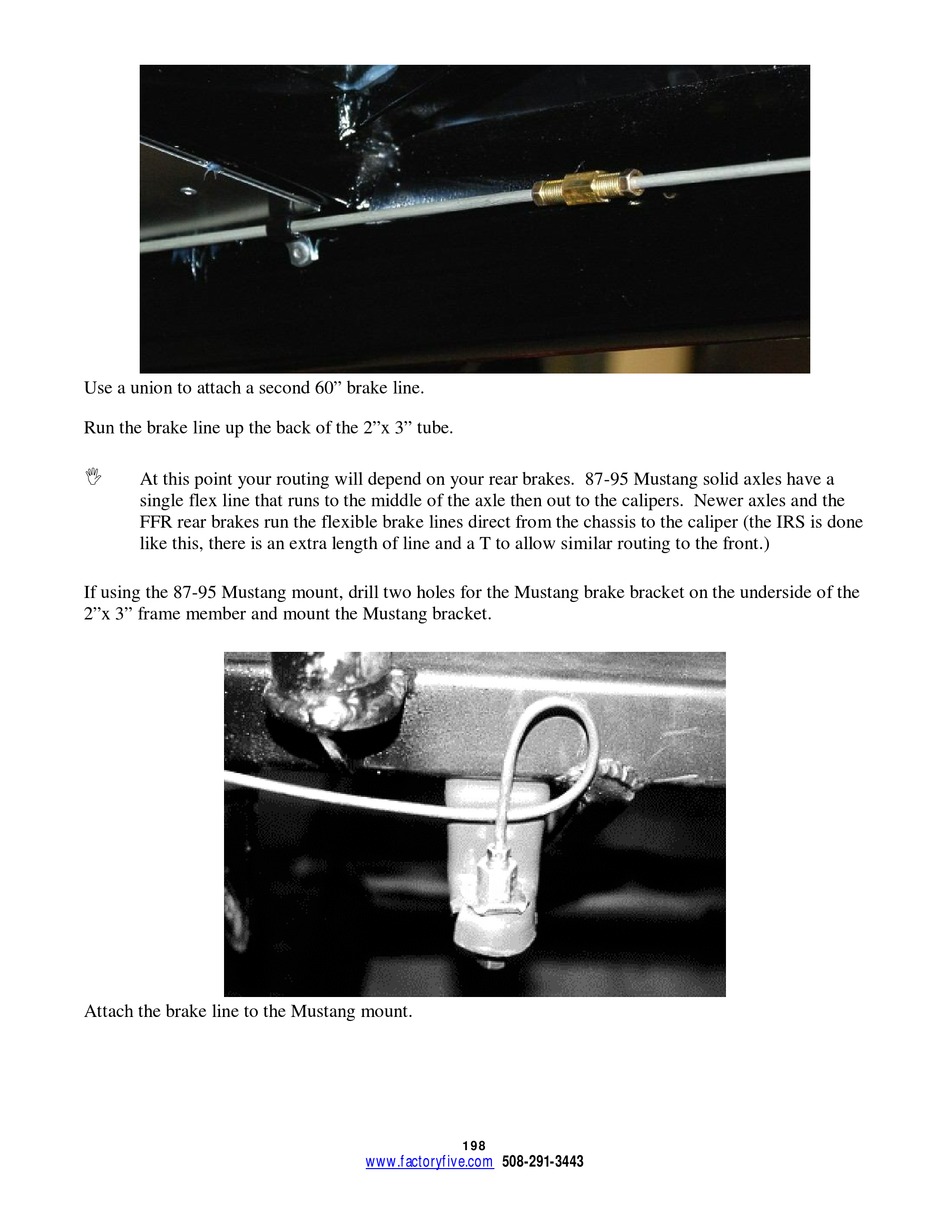

Use a union to attach a second 60" brake line.

Run the brake line up the back of the 2"x 3" tube.

At this point your routing will depend on your rear brakes. 87-95 Mustang solid axles have a

single flex line that runs to the middle of the axle then out to the calipers. Newer axles and the

FFR rear brakes run the flexible brake lines direct from the chassis to the caliper (the IRS is done

like this, there is an extra length of line and a T to allow similar routing to the front.)

If using the 87-95 Mustang mount, drill two holes for the Mustang brake bracket on the underside of the

2"x 3" frame member and mount the Mustang bracket.

Attach the brake line to the Mustang mount.
