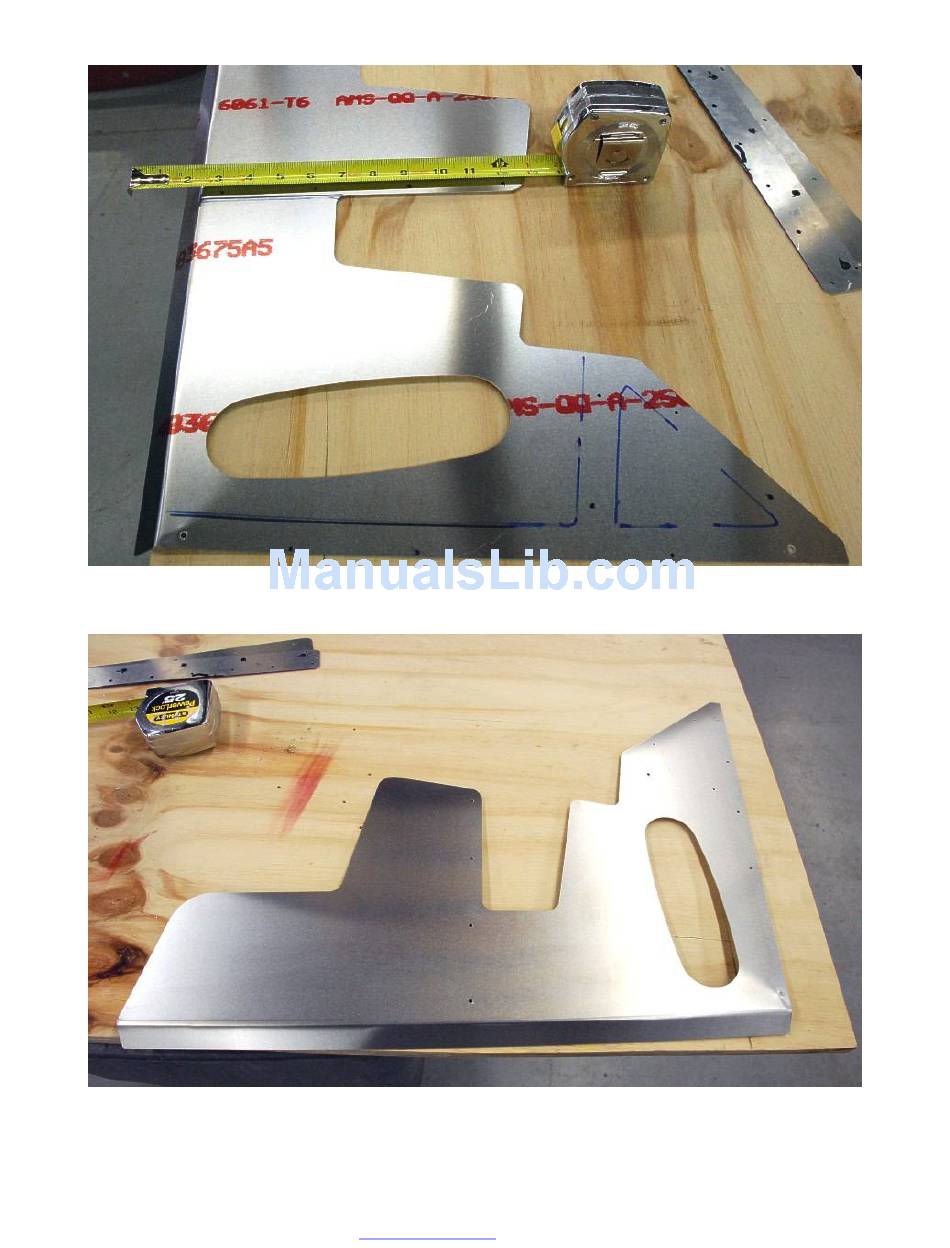

The "F" shaped aluminum panels that mount behind the suspension are mounted first. Locate them and
mark your rivet pattern in the location you traced.
Drill the panels using a
/
" bit then clean the marker lines and labeling off using acetone or brake
1
8
cleaner.
88
