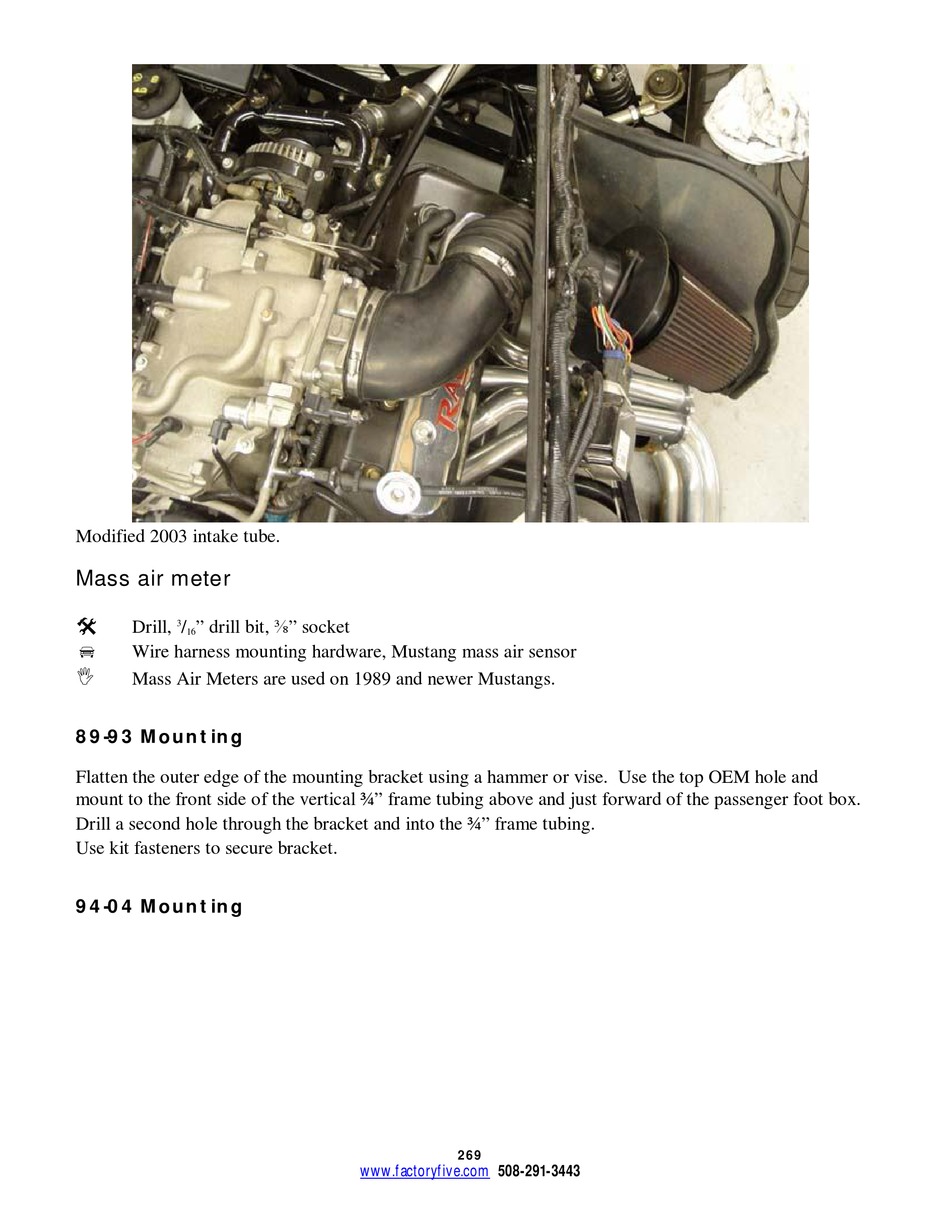

Modified 2003 intake tube.

Mass air meter


Drill, 3 / " drill bit, ⅜" socket
16

Wire harness mounting hardware, Mustang mass air sensor

Mass Air Meters are used on 1989 and newer Mustangs.

89-93 Mounting

Flatten the outer edge of the mounting bracket using a hammer or vise. Use the top OEM hole and
mount to the front side of the vertical ¾" frame tubing above and just forward of the passenger foot box.
Drill a second hole through the bracket and into the ¾" frame tubing.
Use kit fasteners to secure bracket.
94-04 Mounting
