Rear Wheel

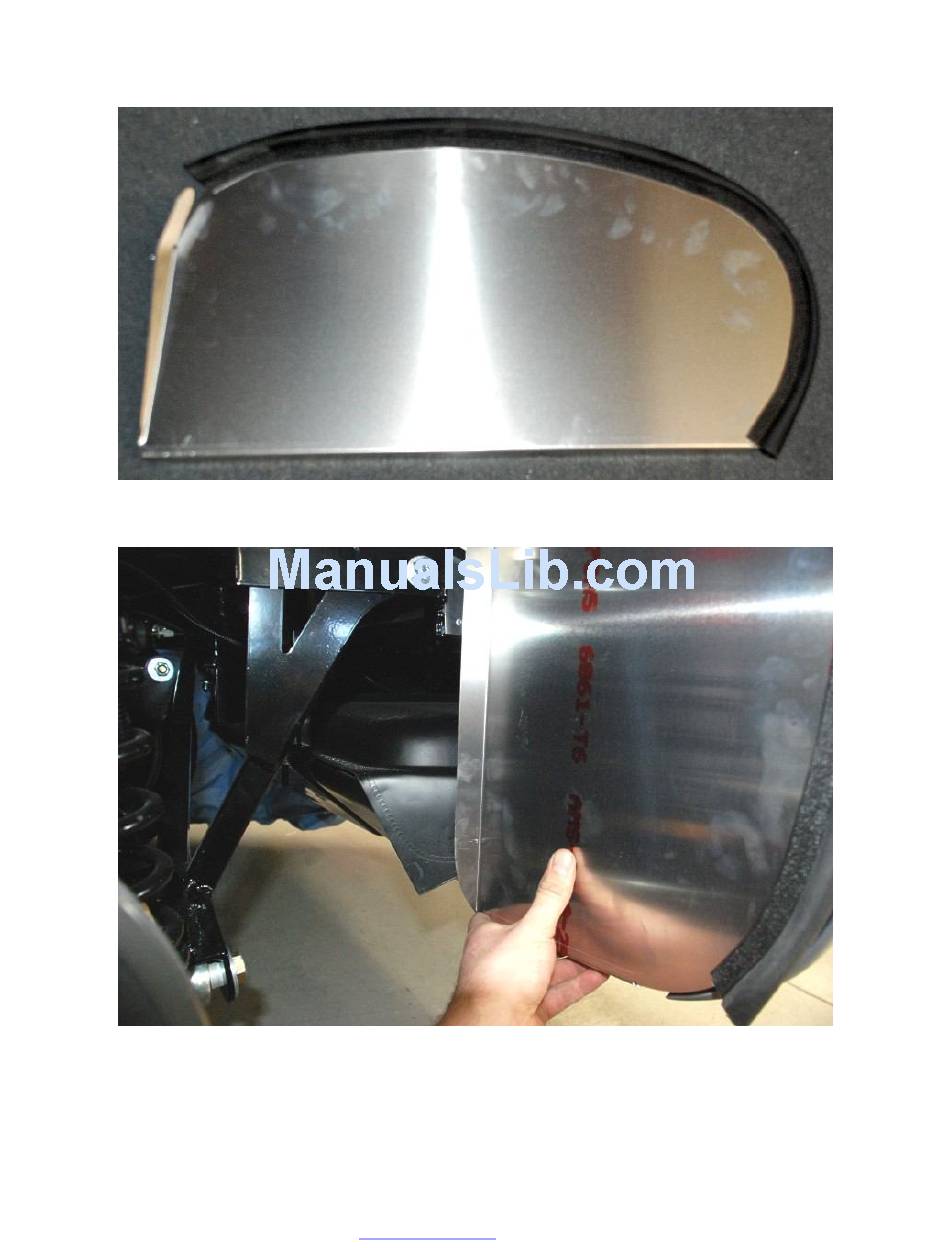

Push a piece of the bulb seal weather stripping around both rear splash guards where they will contact
the body.
Fit the panels in place and trim the outside perimeter if needed. The small tab on the bottom faces
towards the rear of the car and is on the bottom. The bent edge should be vertical and aligned with the
trunk side pieces where they drop down, behind the quad shock mounts. It should sit on top of the ¾"
vertical tube that is behind the trunk wall. You may also need to bend the flange of the gas tank down a
little to get the panel in place.
