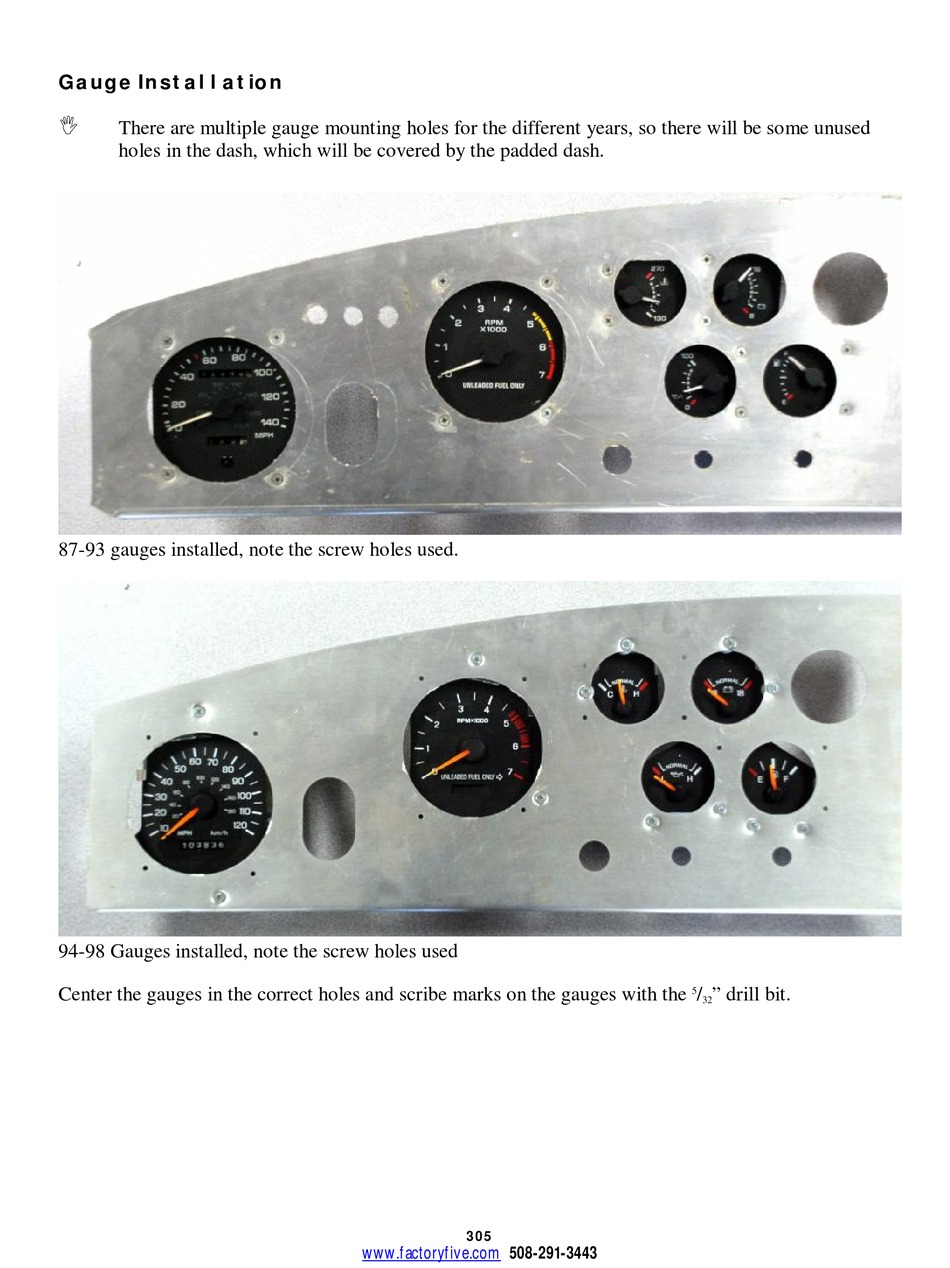

Gauge Installation
There are multiple gauge mounting holes for the different years, so there will be some unused
holes in the dash, which will be covered by the padded dash.
87-93 gauges installed, note the screw holes used.
94-98 Gauges installed, note the screw holes used
Center the gauges in the correct holes and scribe marks on the gauges with the
305
www.factoryfive.com
508-291-3443
5
/
" drill bit.
32
