2000-2004 Version - Factory Five Racing Mk4 Roadster Assembly Manual

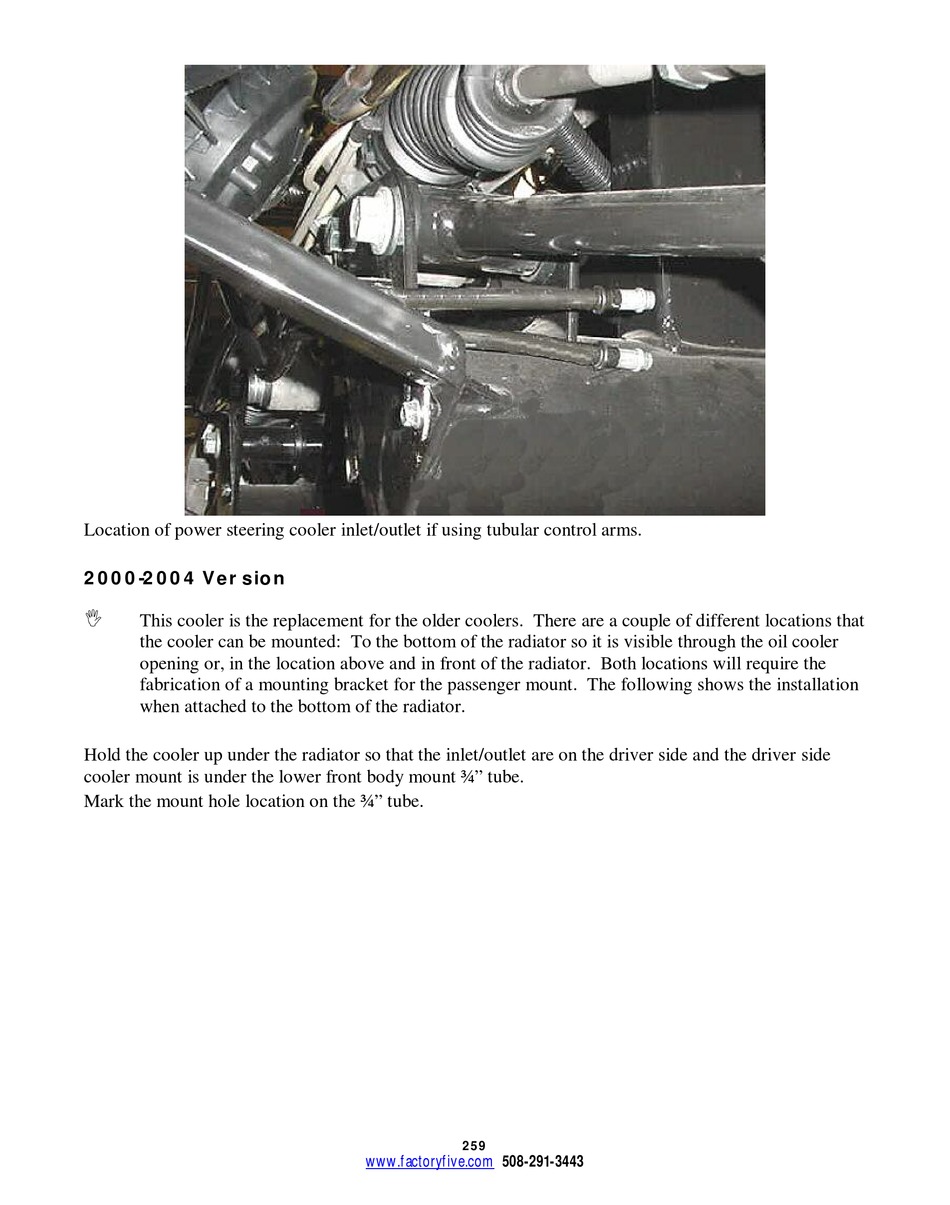

Location of power steering cooler inlet/outlet if using tubular control arms.

2000-2004 Version


This cooler is the replacement for the older coolers. There are a couple of different locations that
the cooler can be mounted: To the bottom of the radiator so it is visible through the oil cooler
opening or, in the location above and in front of the radiator. Both locations will require the
fabrication of a mounting bracket for the passenger mount. The following shows the installation
when attached to the bottom of the radiator.
Hold the cooler up under the radiator so that the inlet/outlet are on the driver side and the driver side
cooler mount is under the lower front body mount ¾" tube.
Mark the mount hole location on the ¾" tube.
