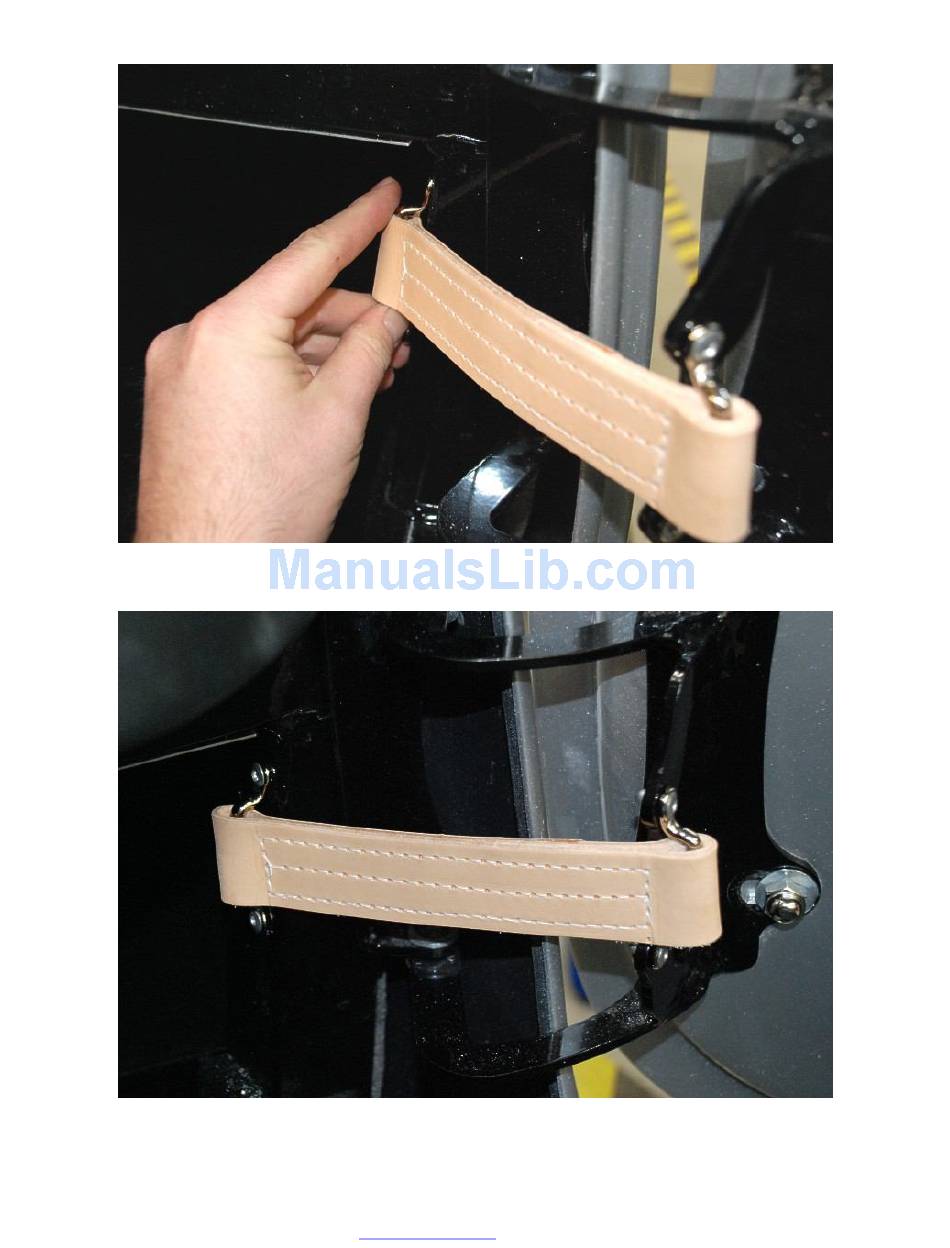

While holding the door open, pull the check strap tight and mark the location of the mount holes on the
inside face of the 2"x 2" tube.
Drill
3
/
" holes at the marked locations and rivet the mount to the chassis.
16
459
www.factoryfive.com
508-291-3443
