Factory Five Racing Mk4 Roadster Assembly Manual page 315

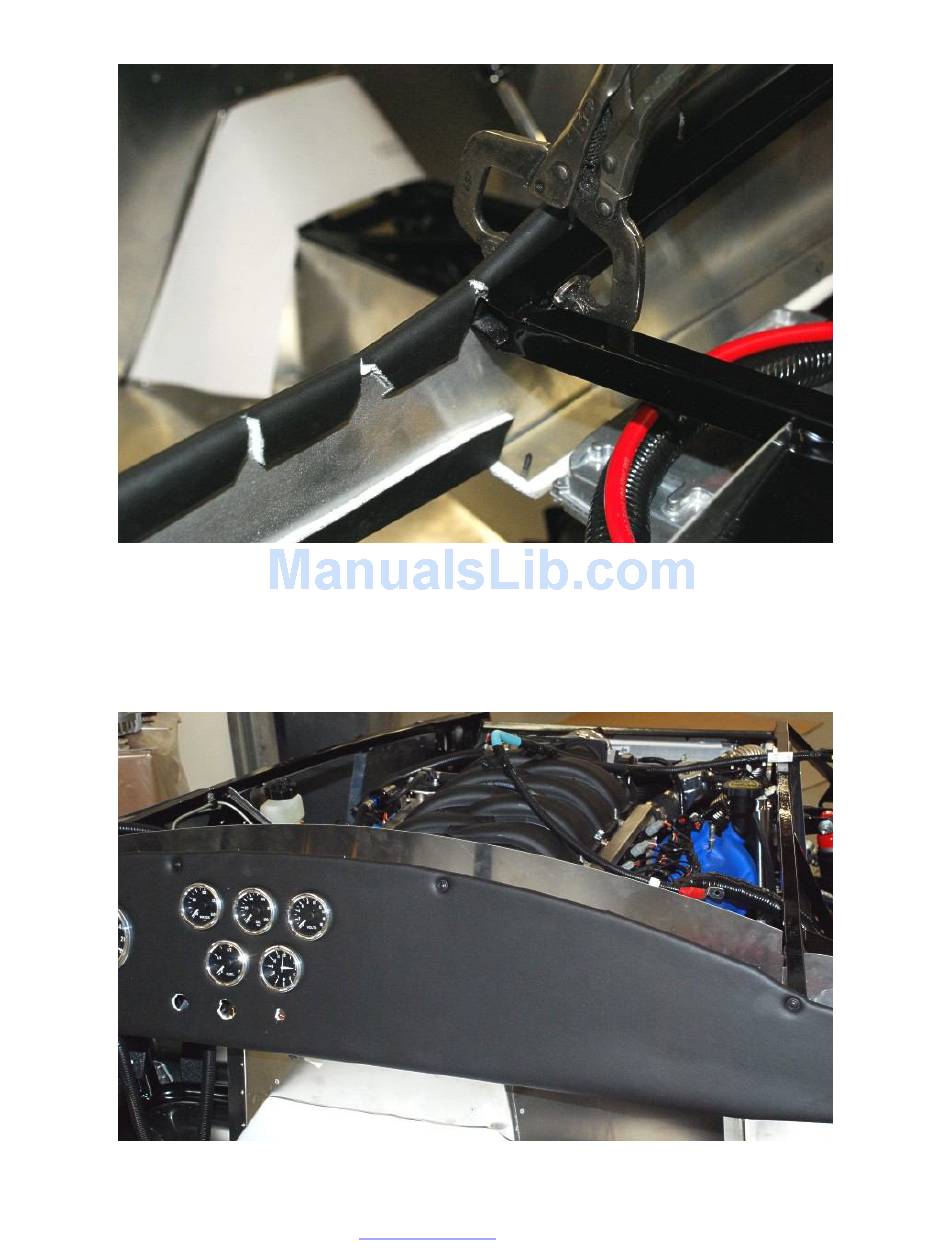

Line the dash up with the hoop on the chassis. The corners of the dash support tube are 3 / " below the
16
top edge of the dash. The tube will be lower as it goes to the middle.
Make sure the gauges do not hit the ¾" tubing.
Drill for the dash mounting screws (5 evenly spread) through the dash and chassis with a / " drill bit
1 8
then drill back through the dash only with a / " bit and screw the dash to the chassis.
3
16
Screw the dash to the dash support hoop using the Phillips head screws with countersunk washers.
Optional gauges shown.
