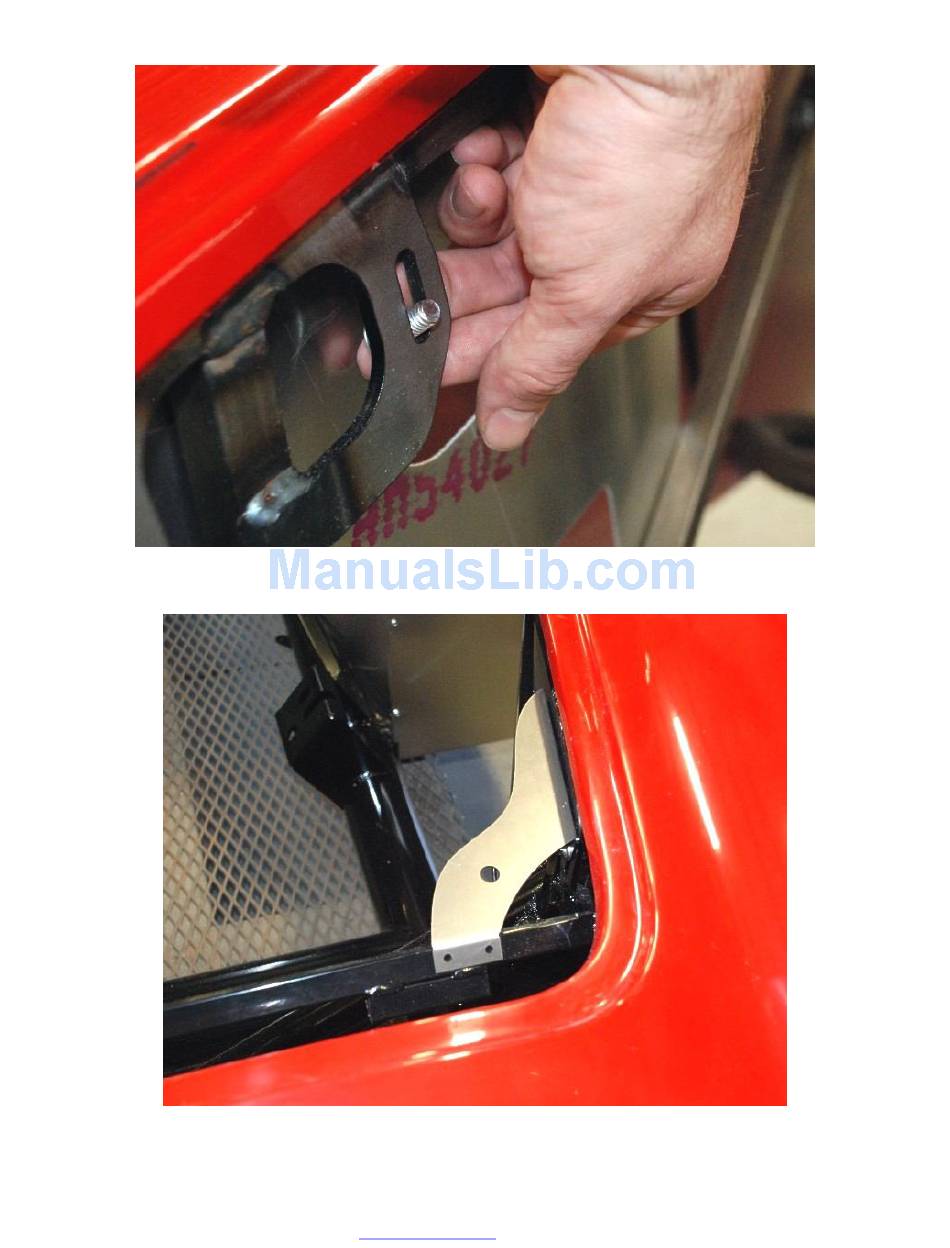

Loosely attach the hood pin mount plates to the chassis using the carriage bolts. The bolts push in from
the outside.
Position the Hood pin plates on the frame.
Attach the hood pin vertical posts hand tight to the mounting plate. One nut goes on each side of the
plate.
344
www.factoryfive.com
508-291-3443
