3.

Basic System Operation

3.1.

Front and Back Panel Layouts

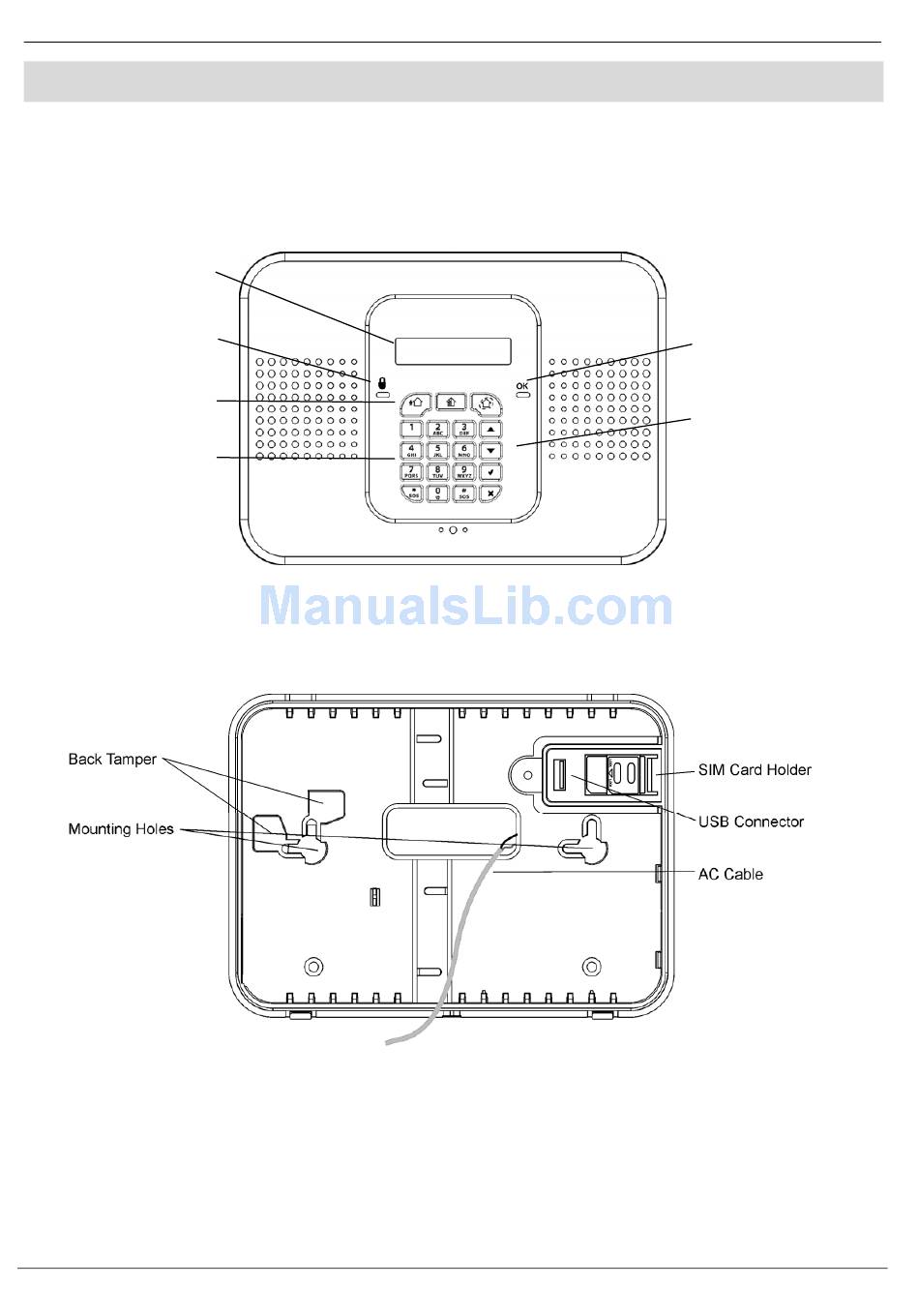

The front panel provides a detailed interface for operating and programming the system. The
following diagram will familiarize you with the various elements of the front panel.
LCD
Display
Arm
Status
LED
Arming
Keys
Alphanumeric
Keypad
Figure 3-1: Front Panel
Next diagram shows the Control Systemʹs back panel that provides access to the SIM card, the USB
Connector and the battery power switch used at first installation – see Figure 3‐2 below.
Figure 3-2: Back Cover
CommPact Installation Manual
OK
LED
Menu
Navigation
Keys
