EL-2614E
The EL‐2614E is a four‐button keyfob transmitter that offers a number of functions including arm,
disarm and SOS Panic.
When the battery is low, the EL‐2614E's LED flashes during transmission and a Low Battery signal
is sent to the receiver. When either of these two indications is observed, replace the batteries.
Batteries must be replaced within seven days of receiving a low battery indication. The
estimated battery life is 2 years (avg. 4 activations per day).
EL‐2614E complies with EN‐50131 Grade 2 Class II Power Supply Type C.
EL-2714
The EL‐2714 is a four‐button keyfob transmitter that offers a number of functions including arm,
disarm and SOS Panic.
When the battery is low, the EL‐2714's LED flashes during transmission and a Low Battery signal is
sent to the receiver. When either of these two indications is observed, replace the batteries.
Batteries must be replaced within seven days of receiving a low battery indication. The
estimated battery life is 2 years (avg. 4 activations per day).
EL‐2714 complies with EN‐50131 Grade 2 Class II Power Supply Type C.
To replace the battery:
1. Insert a small screwdriver into the pry‐off slot – see Figure B‐ 33. Carefully twist the
screwdriver to separate the front and back of the casing.
2. Observing correct polarity, replace the battery (3V lithium, size: CR2032).
3. Close the casing making sure that the front and back click shut.

1-Way Wireless Keypad (EL-2620)

The EL‐2620 is a one‐way wireless keypad primarily designed as additional arming station,
including three arming keys that enable Full, Part, and Perimeter arming modes. Pressing the Full
and Perimeter buttons simultaneously generates an SOS panic alarm. A slide‐out reference card on
the rear of the EL‐2620 can be used for writing essential information.

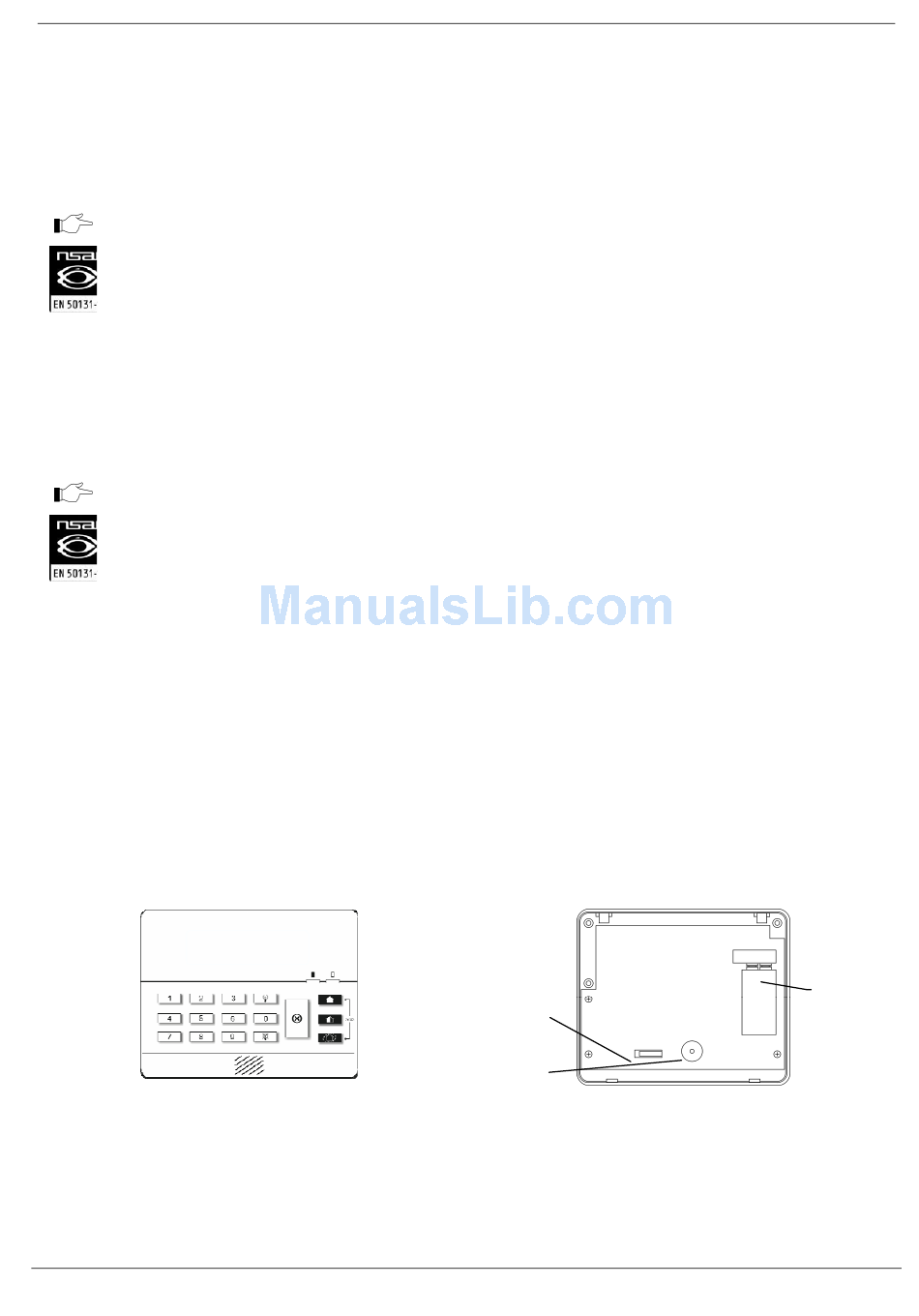

Figure B- 34: EL-2620
118
Tamper
Switch
Buzzer
Figure B- 35: EL-2620 (Back Cover Off)
Appendix B: Transmitter Installation
CommPact Installation Manual
9V Alkaline
Battery
