Magnetic Contact (EL-2601)

The EL‐2601 is a magnetic contact designed for installation on doors and windows.
The  EL‐2601  implements  a  feature  to  combat  the  problem of multiple transmissions that  drastically
reduce the life of the batteries. After each detection, the detector initiates a three‐minute delay during
which transmissions will not be sent. When batteries need replacing, the EL‐2601 sends a low battery
indication to the Control System.









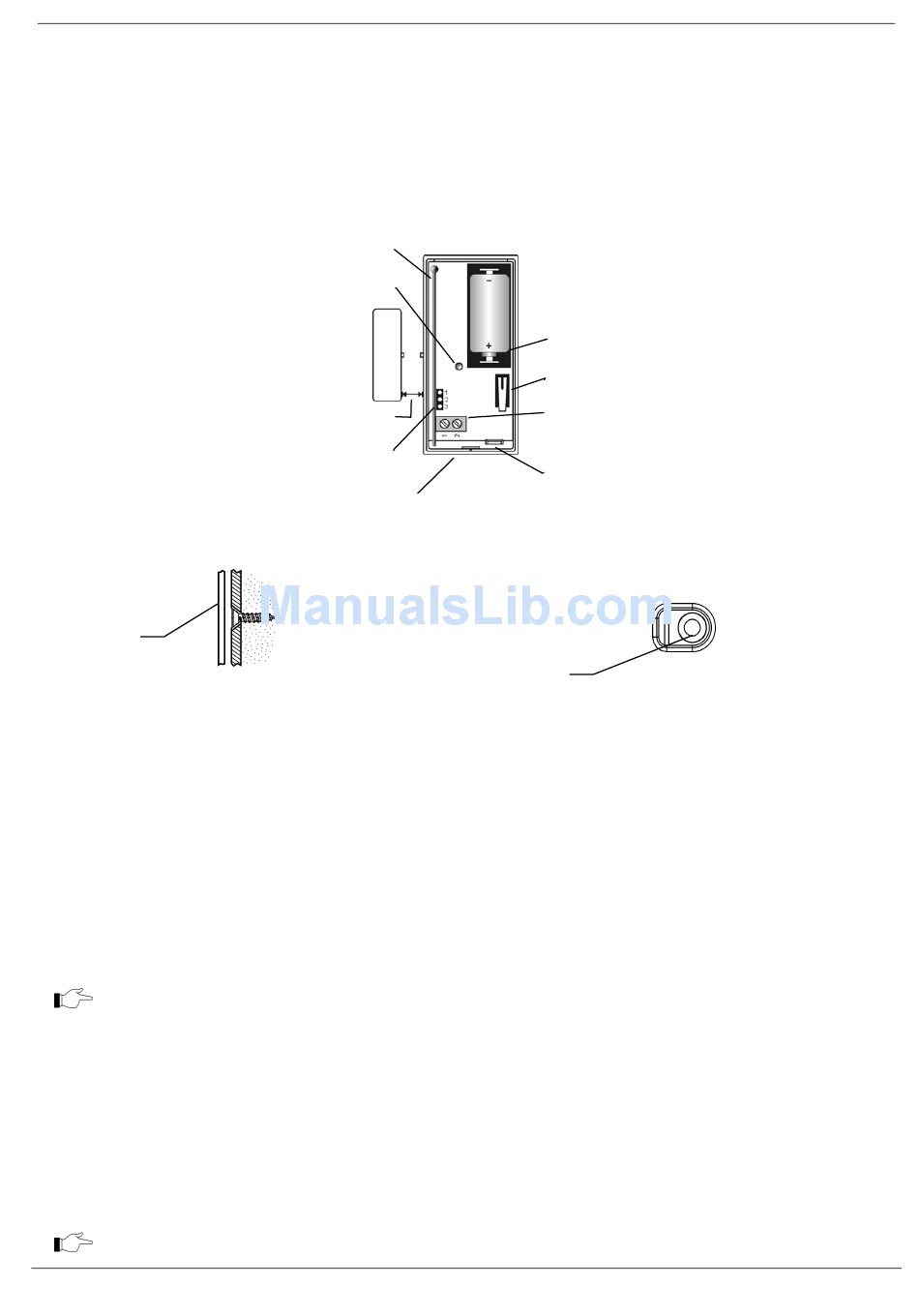

Figure B- 14: EL-2601 (Cover Off)
PCB
Figure B- 15: Mounting Screw Position
Installation Procedure
To install magnetic contacts:
1.
To open the housing, insert a small screwdriver at the bottom of the unit between the
front and back cover and twist the screwdriver to release the cover.
2.
Remove the divider separating the battery from the contacts on the battery holder. When
you apply power and the tamper switch is open, the EL‐2601 enters Test mode during
which a transmission is sent every few seconds. You can terminate the Test mode by
closing the tamper switch. Test mode is automatically terminated after approximately
five minutes.
Due  to  the  occurrence  of  voltage  delay  in  lithium  batteries  that  have  been  in  storage,  the
batteries may initially appear to be dead. In this case, leave the unit in Test mode for a few
minutes until the battery voltage level is stabilized.
3.
From the Programming menu, select Devices, Zones [911].
4.
Select the zone to which you want to register the transmitter; the system initiates
Registration mode. When Save? appears on the Control System's LCD display, press ʹ√ʹ.
5.
After registration, press the EL‐2601's tamper switch to terminate Test mode.
6.
Before permanently mounting the unit, test the transmitter from the exact mounting
position
The  alarm  is  generated  by  magnet  removal  at  24  (+/‐  0.5)  mm  and  is  cleared  by  magnet
100
Antenna
LED
Indicator
1cm max.
Operation
Mode Jumper
Location
of wiring
knockout
Back tamper
mounting hole
Figure B- 16: Back Tamper Release
Appendix B: Transmitter Installation
Battery
Holder
Tamper
Switch
Loop
Terminals
PCB
Release
Tab
