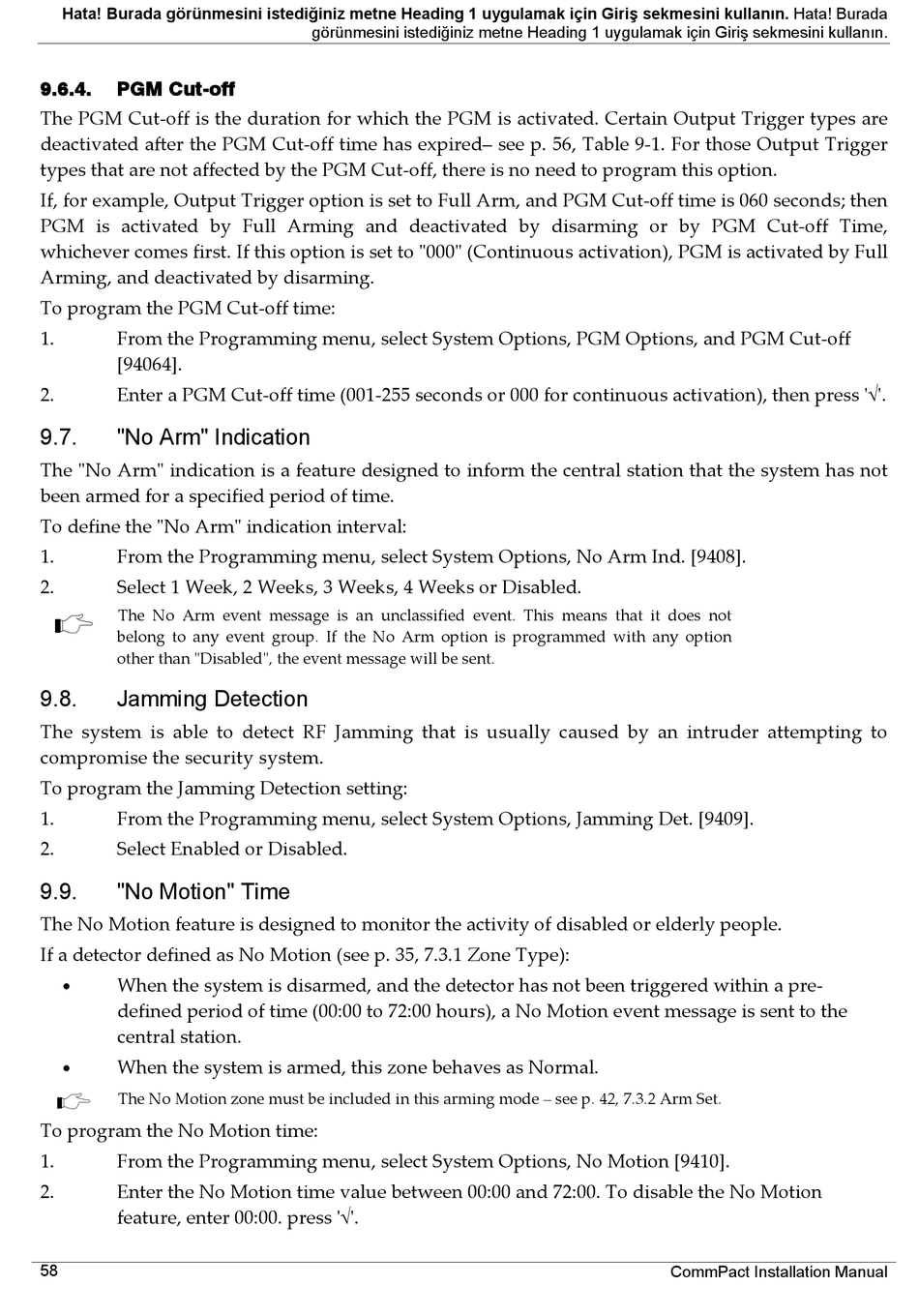

9.6.4. PGM Cut-off
The PGM Cut‐off is the duration for which the PGM is activated. Certain Output Trigger types are
deactivated after the PGM Cut‐off time has expired– see p. 56, Table 9‐1. For those Output Trigger
types that are not affected by the PGM Cut‐off, there is no need to program this option.
If, for example, Output Trigger option is set to Full Arm, and PGM Cut‐off time is 060 seconds; then
PGM is activated by Full Arming and deactivated by disarming or by PGM Cut‐off Time,
whichever comes first. If this option is set to ʺ000ʺ (Continuous activation), PGM is activated by Full
Arming, and deactivated by disarming.
To program the PGM Cut‐off time:
1. From the Programming menu, select System Options, PGM Options, and PGM Cut‐off
[94064].
2. Enter a PGM Cut‐off time (001‐255 seconds or 000 for continuous activation), then press ʹ√ʹ.
9.7.

"No Arm" Indication

The ʺNo Armʺ indication is a feature designed to inform the central station that the system has not
been armed for a specified period of time.
To define the ʺNo Armʺ indication interval:
1. From the Programming menu, select System Options, No Arm Ind. [9408].
2. Select 1 Week, 2 Weeks, 3 Weeks, 4 Weeks or Disabled.
The No Arm event message is an unclassified event. This means that it does not
belong to any event group. If the No Arm option is programmed with any option
other than ʺDisabledʺ, the event message will be sent.
9.8.

Jamming Detection

The system is able to detect RF Jamming that is usually caused by an intruder attempting to
compromise the security system.
To program the Jamming Detection setting:
1. From the Programming menu, select System Options, Jamming Det. [9409].
2. Select Enabled or Disabled.
9.9.

"No Motion" Time

The No Motion feature is designed to monitor the activity of disabled or elderly people.
If a detector defined as No Motion (see p. 35, 7.3.1 Zone Type):

When the system is disarmed, and the detector has not been triggered within a pre‐
defined period of time (00:00 to 72:00 hours), a No Motion event message is sent to the
central station.

When the system is armed, this zone behaves as Normal.
The No Motion zone must be included in this arming mode – see p. 42, 7.3.2 Arm Set.
To program the No Motion time:
1. From the Programming menu, select System Options, No Motion [9410].
2. Enter the No Motion time value between 00:00 and 72:00. To disable the No Motion
feature, enter 00:00. press ʹ√ʹ.
