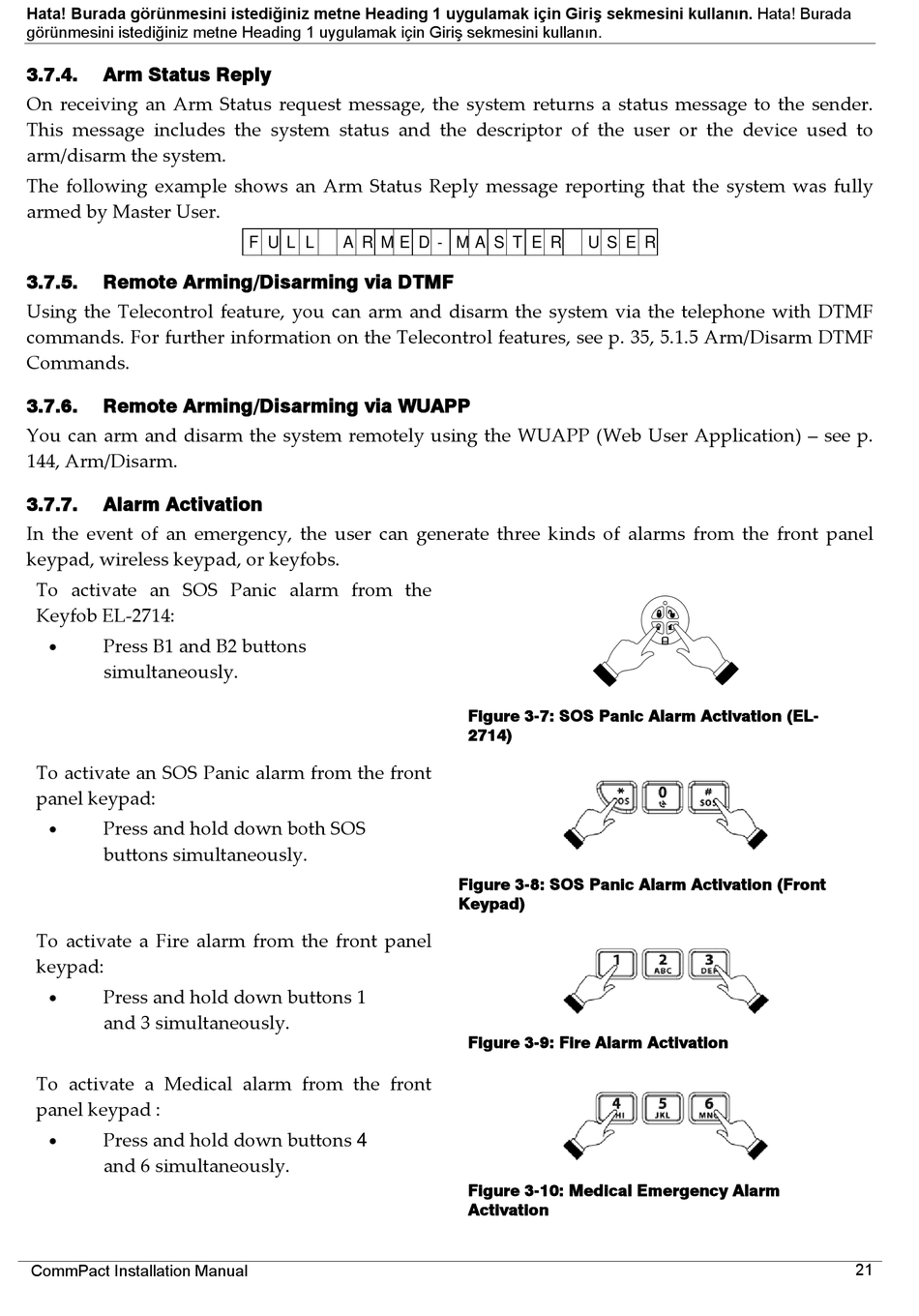

3.7.4. Arm Status Reply
On receiving an Arm Status request message, the system returns a status message to the sender.
This message includes the system status and the descriptor of the user or the device used to
arm/disarm the system.
The following example shows an Arm Status Reply message reporting that the system was fully
armed by Master User.
3.7.5. Remote Arming/Disarming via DTMF
Using the Telecontrol feature, you can arm and disarm the system via the telephone with DTMF
commands. For further information on the Telecontrol features, see p. 35, 5.1.5 Arm/Disarm DTMF
Commands.
3.7.6. Remote Arming/Disarming via WUAPP
You can arm and disarm the system remotely using the WUAPP (Web User Application) – see p.
144, Arm/Disarm.
3.7.7. Alarm Activation
In the event of an emergency, the user can generate three kinds of alarms from the front panel
keypad, wireless keypad, or keyfobs.
To activate an SOS Panic alarm from the
Keyfob EL‐2714:

Press B1 and B2 buttons
simultaneously.
To activate an SOS Panic alarm from the front
panel keypad:

Press and hold down both SOS
buttons simultaneously.
To activate a Fire alarm from the front panel
keypad:

Press and hold down buttons 1
and 3 simultaneously.
To activate a Medical alarm from the front
panel keypad :

Press and hold down buttons 4
and 6 simultaneously.
CommPact Installation Manual
F U L L A R M E D - M A S T E R U S E R
Figure 3-7: SOS Panic Alarm Activation (EL-
2714)
Figure 3-8: SOS Panic Alarm Activation (Front
Keypad)
Figure 3-9: Fire Alarm Activation
Figure 3-10: Medical Emergency Alarm
Activation
