Installing the Detector
1. R emove the mounting bracket from your unit according to Figure B‐ 40.

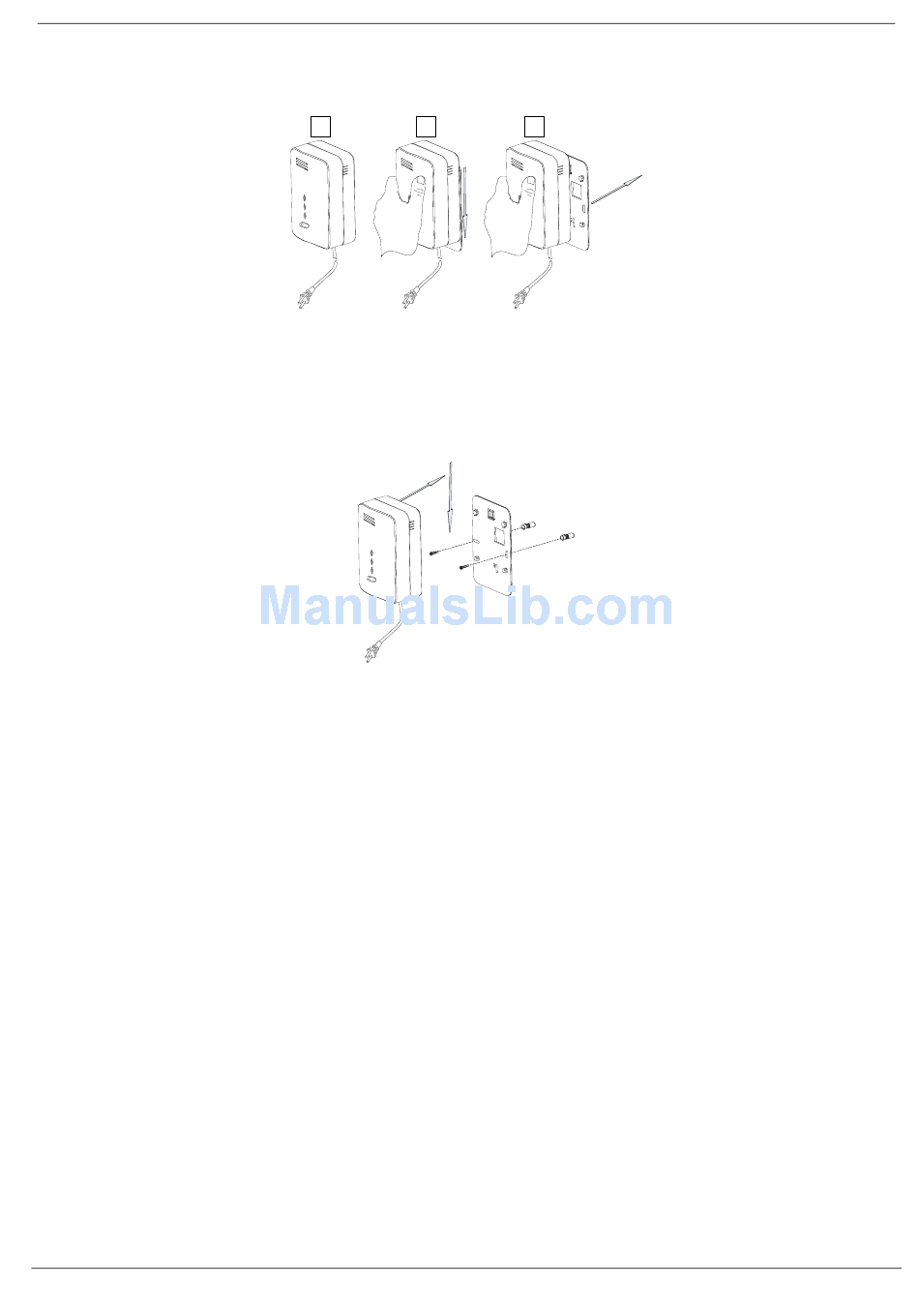

Figure B- 40: Mounting the Detector
2. Hold the Mounting bracket against the wall as a template and mark the locations for the
2 mounting holes.
3. U sing a 3/16‐inch (5 mm) drill bit, drill two holes at the marks and insert wall plugs
(Figure B‐ 41).
Figure B- 41: Securing the Detector
Secure the Mounting Bracket to the Wall
1. Line up the side slot of the bracket and the detector. Push the detector onto the mounting
bracket and fix it (see arrow direction, Figure B‐ 41). Pull the detector outwards to make
sure that it is securely attached to the mounting bracket.
2. Connect the detector power cable to the wall power outlet.
Transmitter/Receiver Communication Setup
1. Set the panel to registration mode.
2. I nsert the batteries into compartment. The detector enters registration mode during
which a transmission is sent every few seconds. You can terminate registration mode by
pressing the Test Button. Test mode is automatically terminated after approximately five
minutes.
3. V erify that the detector has been identified by the receiver.

Testing the Detector

To test the detector (do not test when detector is at warm up mode), press the Test Button.
T he red and orange LEDʹs will flash and a sound will be heard
124
1 2
Appendix B: Transmitter Installation
