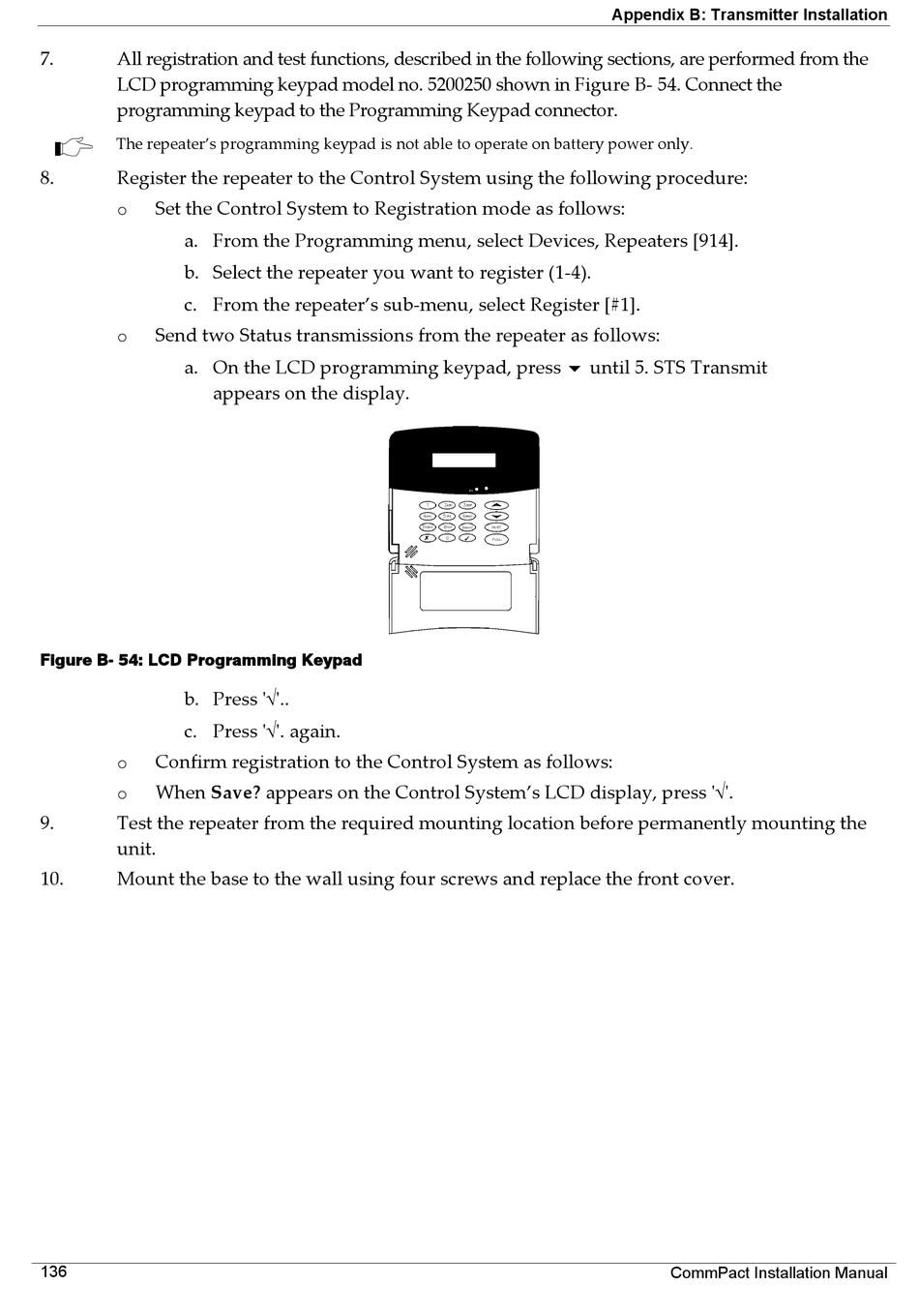

7. All registration and test functions, described in the following sections, are performed from the
LCD programming keypad model no. 5200250 shown in Figure B‐ 54. Connect the
programming keypad to the Programming Keypad connector.
The repeater's programming keypad is not able to operate on battery power only.
8. Register the repeater to the Control System using the following procedure:
Set the Control System to Registration mode as follows:
o
a. From the Programming menu, select Devices, Repeaters [914].
b. Select the repeater you want to register (1‐4).
c. From the repeater's sub‐menu, select Register [#1].
Send two Status transmissions from the repeater as follows:
o
a. On the LCD programming keypad, press  until 5. STS Transmit
appears on the display.
Figure B- 54: LCD Programming Keypad
b. Press ʹ√ʹ..
c. Press ʹ√ʹ. again.
Confirm registration to the Control System as follows:
o
When Save? appears on the Control System's LCD display, press ʹ√ʹ.
o
9. Test the repeater from the required mounting location before permanently mounting the
unit.
10. Mount the base to the wall using four screws and replace the front cover.
