Wireless PIR (EL-2652SR)

The EL‐2652SR is a wireless PIR detector designed for use with Electronics Line 3000's supervised
wireless range of receivers. The detector is designed for both indoor and external installations and
provides good immunity to nuisance alarms caused by pets weighing up to 10kg (22lbs). The EL‐
2652SR implements a feature to combat the problem of multiple transmissions that drastically
reduce the life of the batteries. After each detection the detector initiates a three‐minute delay
during which transmissions will not be sent.

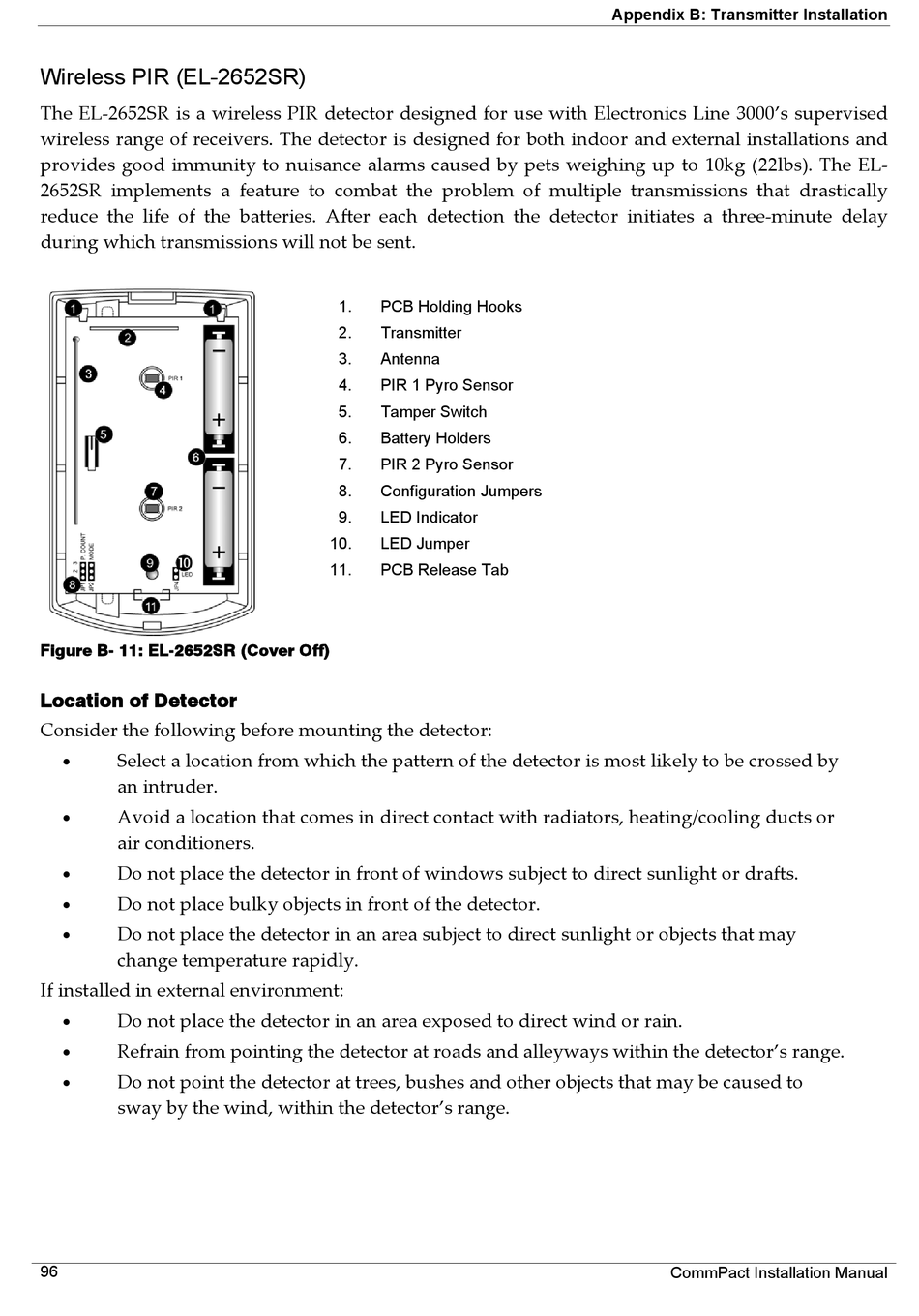

Figure B- 11: EL-2652SR (Cover Off)
Location of Detector
Consider the following before mounting the detector:

S elect a location from which the pattern of the detector is most likely to be crossed by
an intruder.

A void a location that comes in direct contact with radiators, heating/cooling ducts or
air conditioners.

D o not place the detector in front of windows subject to direct sunlight or drafts.

D o not place bulky objects in front of the detector.

D o not place the detector in an area subject to direct sunlight or objects that may
change temperature rapidly.
If installed in external environment:

D o not place the detector in an area exposed to direct wind or rain.

R efrain from pointing the detector at roads and alleyways within the detector's range.

D o not point the detector at trees, bushes and other objects that may be caused to
sway by the wind, within the detector's range.
96
1. PCB Holding Hooks
2. Transmitter
3. Antenna
4. PIR 1 Pyro Sensor
5. Tamper Switch
6. Battery Holders
7. PIR 2 Pyro Sensor
8. Configuration Jumpers
9. LED Indicator
10. LED Jumper
11. PCB Release Tab
