Appendix B: Transmitter Installation

LED Indication

The LED indicator turns red to indicate non‐permitted motion and green to indicate motion
detection in either direction. In the event of an alarm, the LED turns red. To disable the LED,
remove the LED Jumper, JP1 located next to the LED indicator – see Table B‐ 5.
Do not disable the LED until you have successfully walk tested the detector.
PIR Supervision
The circuit operation of the PIR is checked once per hour. In the event of PIR failure the red
LED flashes.

Battery Replacement

Open the housing by removing the front cover (see Installation Instructions), replace the battery, and
close the front cover.
Close the front cover immediately after each battery replacement.
Table B-3: EL-2650XL's
Mode JumperJP3
Mode
Jumper
JP3
Curtain
Directional
Signals and Messages:
In case of a low battery (2.5 V and below), the detector low battery condition is reported to the
Control System and low battery message is displayed. When the Back Tamper switch is released,
the detector sends a tamper condition to the Control System that generates tamper alarm.
Wall Mounted

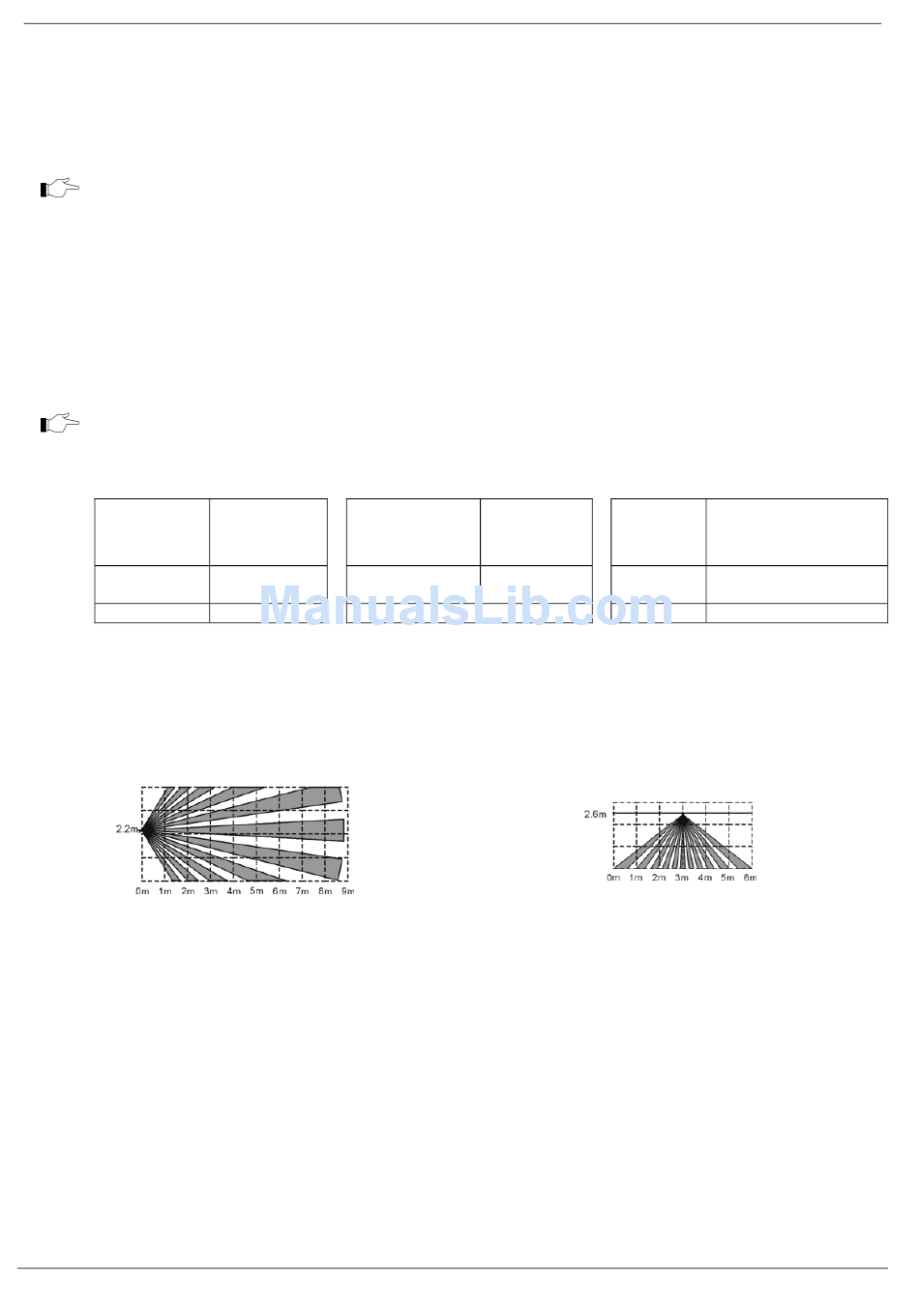

Figure B- 10: Lens Coverage Pattern (Side View)
CommPact Installation Manual
Table B-4: EL-2650XL's Alarm
Delay Jumper JP
Alarm Delay
Jumper
Jumper JP2
Position
Removed 1 minute
Installed 4 minutes
Table B- 5: EL-2650XL's LEDs
Jumper LED
Position
Removed Red
Installed Green
Ceiling mounted
Indication
Non-Permitted
motion
Permitted Motion
95
