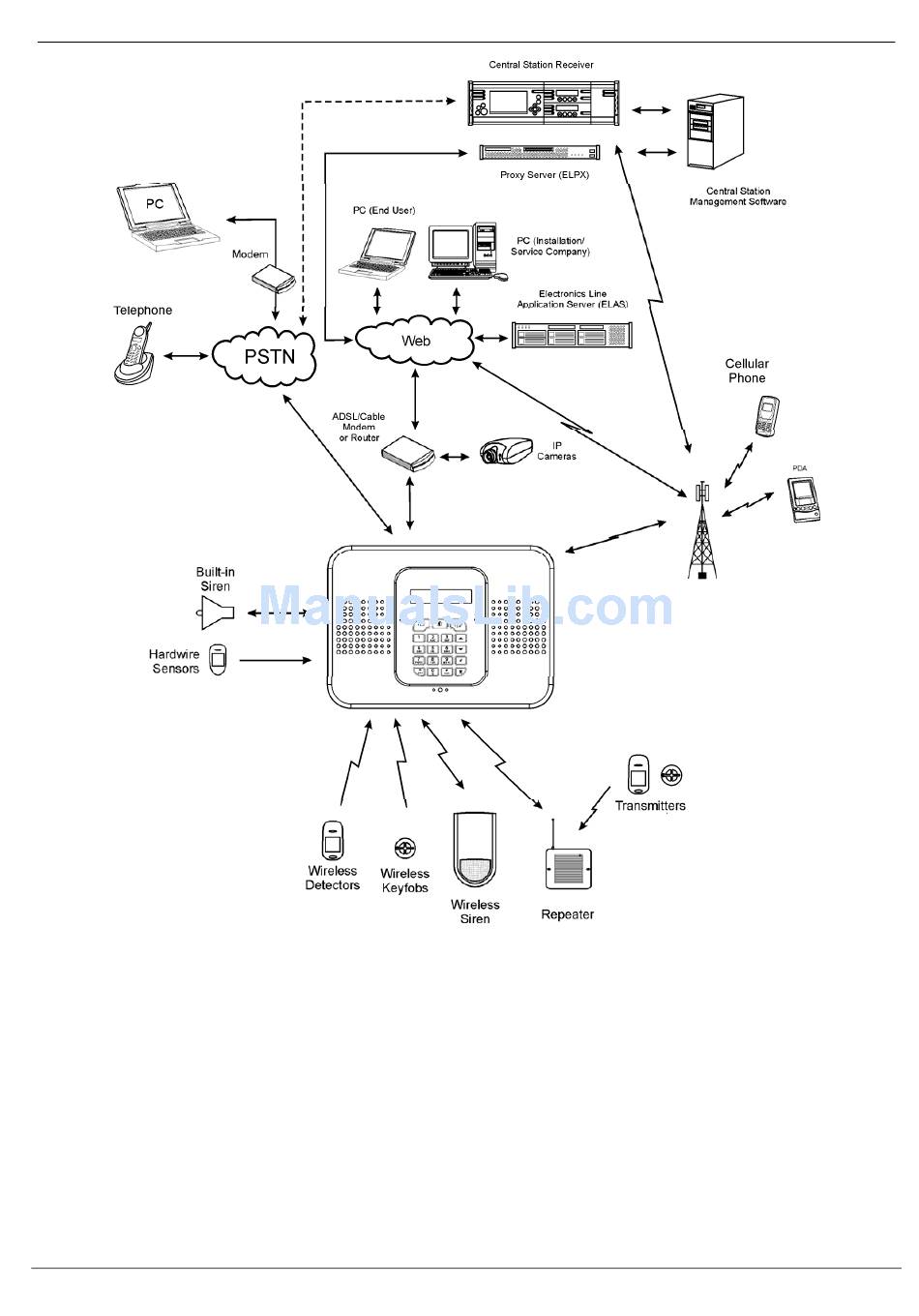

Figure 1-1: System Architecture
1.4.
Hardware Layout
The aim of this section is to acquaint you with the circuit boards that make up the system. The
CommPact Control System housing has two PCBs: the Main Board and the P ower Supply and
Connections Board.
