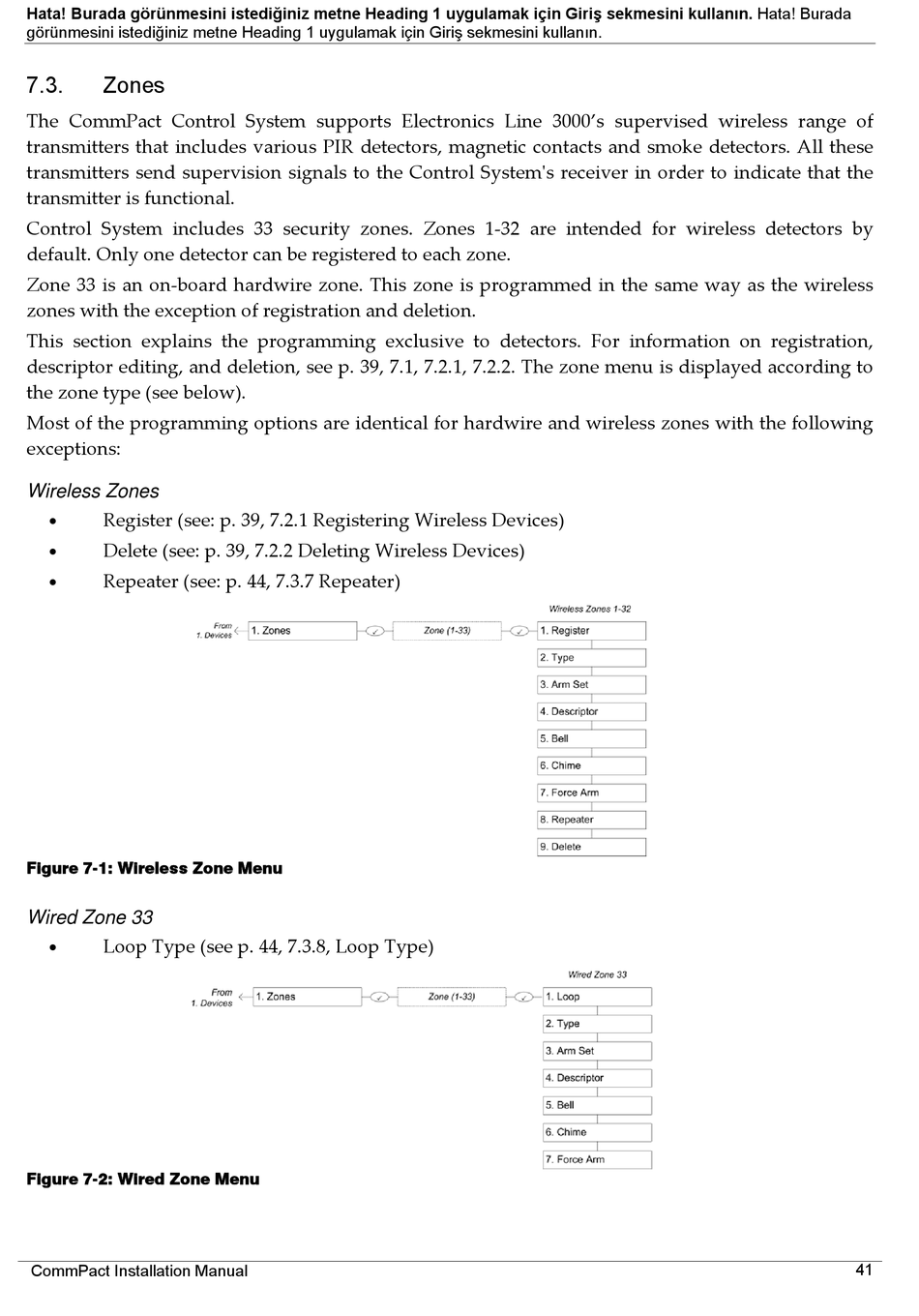

7.3.

Zones

The CommPact Control System supports Electronics Line 3000's supervised wireless range of
transmitters that includes various PIR detectors, magnetic contacts and smoke detectors. All these
transmitters send supervision signals to the Control Systemʹs receiver in order to indicate that the
transmitter is functional.
Control System includes 33 security zones. Zones 1‐32 are intended for wireless detectors by
default. Only one detector can be registered to each zone.
Zone 33 is an on‐board hardwire zone. This zone is programmed in the same way as the wireless
zones with the exception of registration and deletion.
This section explains the programming exclusive to detectors. For information on registration,
descriptor editing, and deletion, see p. 39, 7.1, 7.2.1, 7.2.2. The zone menu is displayed according to
the zone type (see below).
Most of the programming options are identical for hardwire and wireless zones with the following
exceptions:
Wireless Zones

Register (see: p. 39, 7.2.1 Registering Wireless Devices)

Delete (see: p. 39, 7.2.2 Deleting Wireless Devices)

Repeater (see: p. 44, 7.3.7 Repeater)
Figure 7-1: Wireless Zone Menu
Wired Zone 33

Loop Type (see p. 44, 7.3.8, Loop Type)
Figure 7-2: Wired Zone Menu
