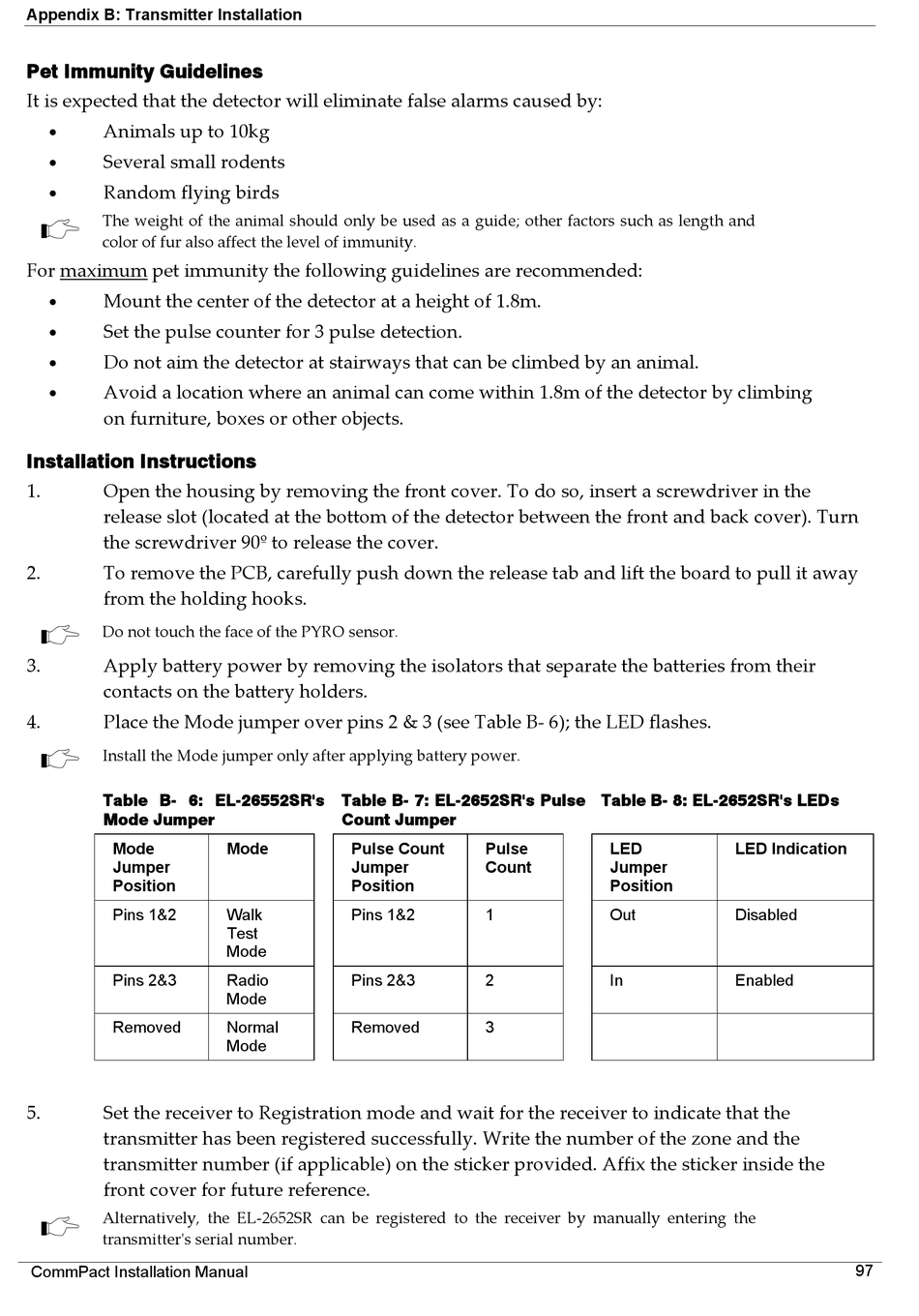

Appendix B: Transmitter Installation
Pet Immunity Guidelines
It is expected that the detector will eliminate false alarms caused by:

Animals up to 10kg

Several small rodents

R andom flying birds
The weight of the animal should only be used as a guide; other factors such as length and
color of fur also affect the level of immunity.
For maximum pet immunity the following guidelines are recommended:

M ount the center of the detector at a height of 1.8m.

S et the pulse counter for 3 pulse detection.

D o not aim the detector at stairways that can be climbed by an animal.

A void a location where an animal can come within 1.8m of the detector by climbing
on furniture, boxes or other objects.
Installation Instructions
1. O pen the housing by removing the front cover. To do so, insert a screwdriver in the
release slot (located at the bottom of the detector between the front and back cover). Turn
the screwdriver 90º to release the cover.
2. To remove the PCB, carefully push down the release tab and lift the board to pull it away
from the holding hooks.
Do not touch the face of the PYRO sensor.
3. A pply battery power by removing the isolators that separate the batteries from their
contacts on the battery holders.
4. P lace the Mode jumper over pins 2 & 3 (see Table B‐ 6); the LED flashes.
Install the Mode jumper only after applying battery power.
Table B- 6: EL-26552SR's
Mode Jumper
Mode
Jumper
Position
Pins 1&2
Pins 2&3
Removed
5. Set the receiver to Registration mode and wait for the receiver to indicate that the
transmitter has been registered successfully. Write the number of the zone and the
transmitter number (if applicable) on the sticker provided. Affix the sticker inside the
front cover for future reference.
Alternatively, the EL‐2652SR can be registered to the receiver by manually entering the
transmitterʹs serial number.
