Chapter Three: Basic System Operation

3.1: Front Panel Layout

The front panel provides a detailed interface for operating and programming the system.
The following diagram will familiarize you with the various elements on the front panel.
LCD
Display
Arming
Keys
Alpha-
numeric
Keypad

3.2: System Status LEDs

The two LEDs, Armed and Power, provide essential information on the status of
the system.
If the Armed LED is...
Off
On
Flashing
Table 3.1: Armed LED Indication
Alarm indication is not displayed after a silent panic alarm.
If the Power LED is...
Off
On
Flashing (slow)
Flashing (fast)
Table 3.2: Power LED Indication

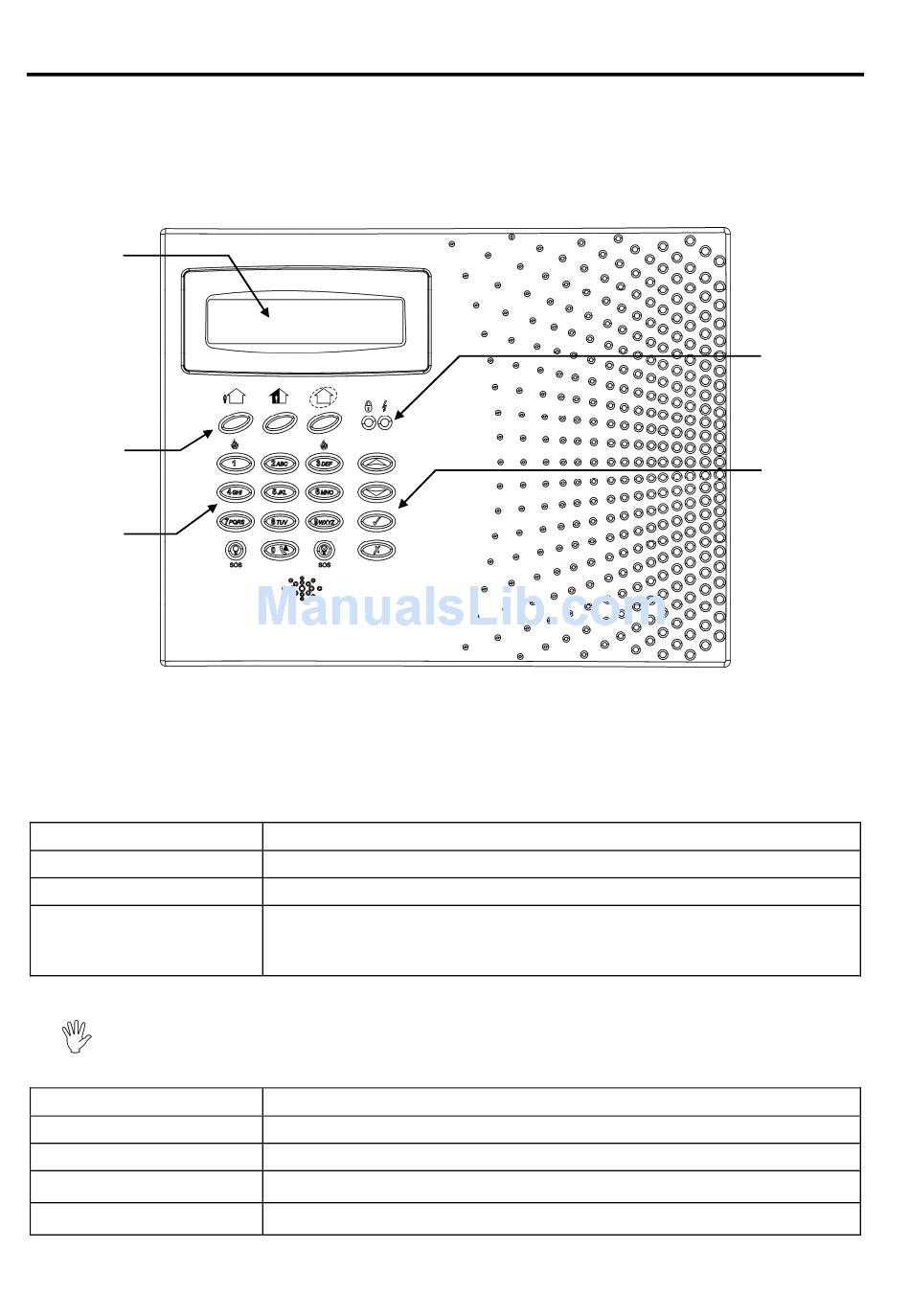

Figure 3.1: Front Panel
It means...
The system is disarmed.
The system is armed.
An alarm has occurred. Alarm indication is cleared the next time that
an arming sequence is initiated or after the relevant event has been
viewed in the event log.
It means...
Both AC and Battery power are disconnected.
System Power is OK.
Backup battery low or low battery from transmitters.
AC loss.
-20-
System
Status
LEDs
Menu
Navigation
Keys
