Appendix B: Transmitter Installation

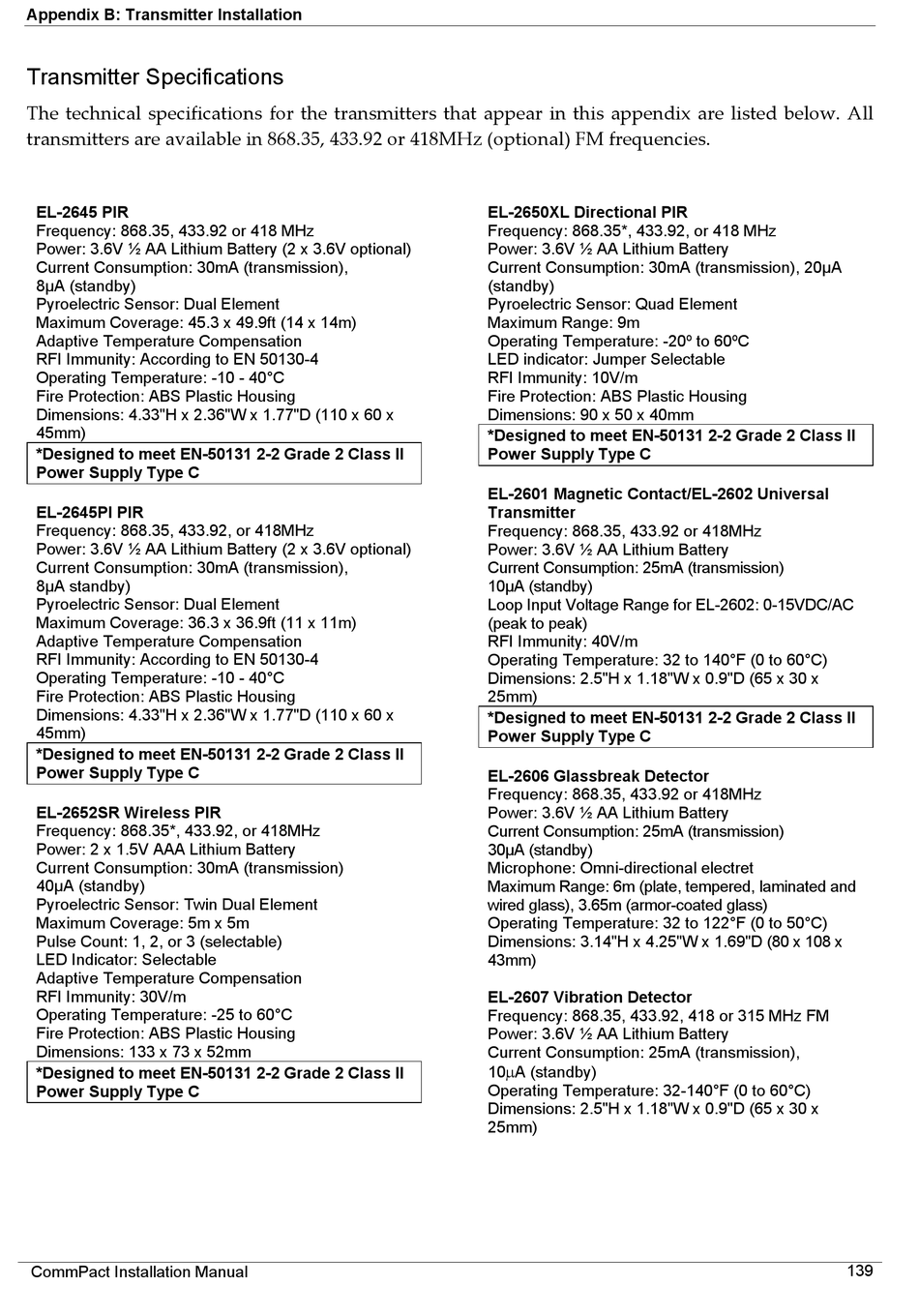

Transmitter Specifications

The technical specifications for the transmitters that appear in this appendix are listed below. All
transmitters are available in 868.35, 433.92 or 418MHz (optional) FM frequencies.
EL-2645 PIR
Frequency: 868.35, 433.92 or 418 MHz
Power: 3.6V ½ AA Lithium Battery (2 x 3.6V optional)
Current Consumption: 30mA (transmission),
8µA (standby)
Pyroelectric Sensor: Dual Element
Maximum Coverage: 45.3 x 49.9ft (14 x 14m)
Adaptive Temperature Compensation
RFI Immunity: According to EN 50130-4
Operating Temperature: -10 - 40°C
Fire Protection: ABS Plastic Housing
Dimensions: 4.33"H x 2.36"W x 1.77"D (110 x 60 x
45mm)
*Designed to meet EN-50131 2-2 Grade 2 Class II
Power Supply Type C
EL-2645PI PIR
Frequency: 868.35, 433.92, or 418MHz
Power: 3.6V ½ AA Lithium Battery (2 x 3.6V optional)
Current Consumption: 30mA (transmission),
8µA standby)
Pyroelectric Sensor: Dual Element
Maximum Coverage: 36.3 x 36.9ft (11 x 11m)
Adaptive Temperature Compensation
RFI Immunity: According to EN 50130-4
Operating Temperature: -10 - 40°C
Fire Protection: ABS Plastic Housing
Dimensions: 4.33"H x 2.36"W x 1.77"D (110 x 60 x
45mm)
*Designed to meet EN-50131 2-2 Grade 2 Class II
Power Supply Type C
EL-2652SR Wireless PIR
Frequency: 868.35*, 433.92, or 418MHz
Power: 2 x 1.5V AAA Lithium Battery
Current Consumption: 30mA (transmission)
40µA (standby)
Pyroelectric Sensor: Twin Dual Element
Maximum Coverage: 5m x 5m
Pulse Count: 1, 2, or 3 (selectable)
LED Indicator: Selectable
Adaptive Temperature Compensation
RFI Immunity: 30V/m
Operating Temperature: -25 to 60°C
Fire Protection: ABS Plastic Housing
Dimensions: 133 x 73 x 52mm
*Designed to meet EN-50131 2-2 Grade 2 Class II
Power Supply Type C
CommPact Installation Manual
EL-2650XL Directional PIR
Frequency: 868.35*, 433.92, or 418 MHz
Power: 3.6V ½ AA Lithium Battery
Current Consumption: 30mA (transmission), 20µA
(standby)
Pyroelectric Sensor: Quad Element
Maximum Range: 9m
Operating Temperature: -20º to 60ºC
LED indicator: Jumper Selectable
RFI Immunity: 10V/m
Fire Protection: ABS Plastic Housing
Dimensions: 90 x 50 x 40mm
*Designed to meet EN-50131 2-2 Grade 2 Class II
Power Supply Type C
EL-2601 Magnetic Contact/EL-2602 Universal
Transmitter
Frequency: 868.35, 43 3.92 or 418MHz
Power: 3.6V ½ AA Lithium Battery
Current Consumption: 25mA (transmission)
10µA (standby)
Loop Input Voltage Range for EL-2602: 0-15VDC/AC
(peak to peak)
RFI Immunity: 40V/m
Operating Temperature: 32 to 140°F (0 to 60°C)
Dimensions: 2.5"H x 1.18"W x 0.9"D (65 x 30 x
25mm)
*Designed to meet EN-50131 2-2 Grade 2 Class II
Power Supply Type C
EL-2606 Glassbreak Detector
Frequency: 868.35, 43 3.92 or 418MHz
Power: 3.6V ½ AA Lithium Battery
Current Consumption: 25mA (transmission)
30µA (standby)
Microphone: Omni-directional electret
Maximum Range: 6m (plate, tempered, laminated and
wired glass), 3.65m (armor-coated glass)
Operating Temperature: 32 to 122°F (0 to 50°C)
Dimensions: 3.14"H x 4.25"W x 1.69"D (80 x 108 x
43mm)
EL-2607 Vibration Detector
Frequency: 868.35, 43 3.92, 418 or 315 MHz FM
Power: 3.6V ½ AA Lithium Battery
Current Consumption: 25mA (transmission),
10A (standby)
Operating Temperature: 32-140°F (0 to 60°C)
Dimensions: 2.5"H x 1.18"W x 0.9"D (65 x 30 x
25mm)
