Appendix B: Transmitter Installation

Repeater (EL-2635)

The EL‐2635 is a wireless repeater designed to extend the range of wireless devices registered to the
Control System. Up to four repeaters can be registered to the Control System with 32 transmitters
registered to each repeater. The repeater is powered by either 9VAC with a 6V rechargeable backup
battery pack or 12VDC. Registration and maintenance tests are performed using a plug‐in LCD
programming keypad that provides a comprehensive interface to the repeater.

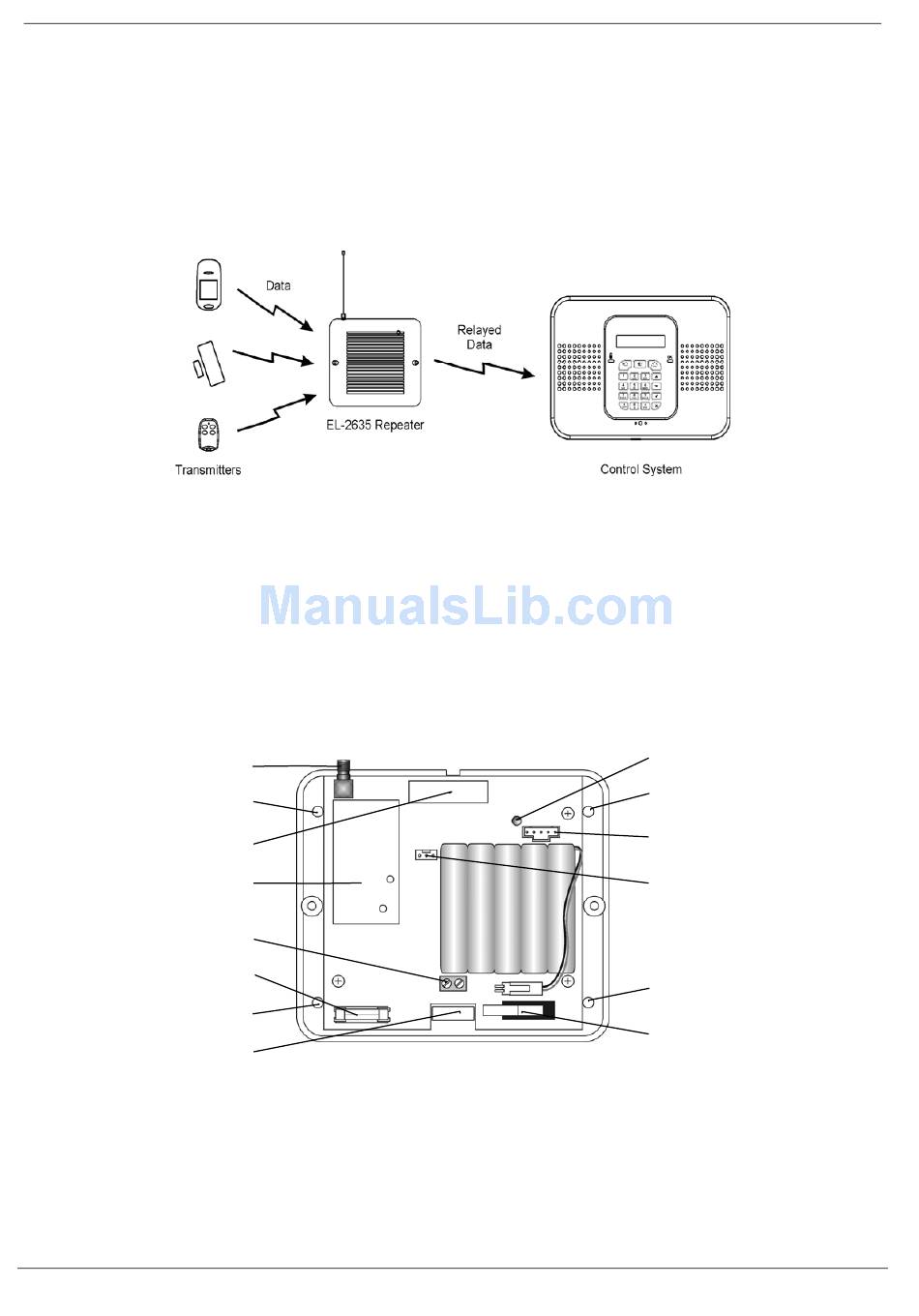

Figure B–52: Typical Single Repeater Application
Installation Procedure
1. Register all wireless devices to the CommPact Control System – see p. 39, 7.2.1
Registering Wireless Devices.
2. Define the Repeater option for each zone that is intended to transmit via the repeater as
ʺUse Repeaterʺ – see p.44, 7.3.7 Repeater
3. Open the EL‐2635's plastic housing. To do so, remove the two cover screws and lift the
front cover away from the base.
Transmitter
Power Input
Figure B- 53: EL-2635 (cover removed)
4. Connect the antenna provided to the antenna connector.
5. Connect the backup battery pack to the Battery connector.
6. Connect a 9VAC to the Power Input terminal block (polarity is not important when
connecting AC to the terminal block).
CommPact Installation Manual
Antenna
Connector
Upper
Mounting
Hole
Receiver
Terminals
AC Power
Protection
Fuse
Lower
Mounting
Hole
Wiring
Hole
LED Indicator
Upper
Mounting
Hole
Flash
Programming
Connector
Programming
Keypad
Connector
Lower
Mounting
Hole
Tamper
Switch
