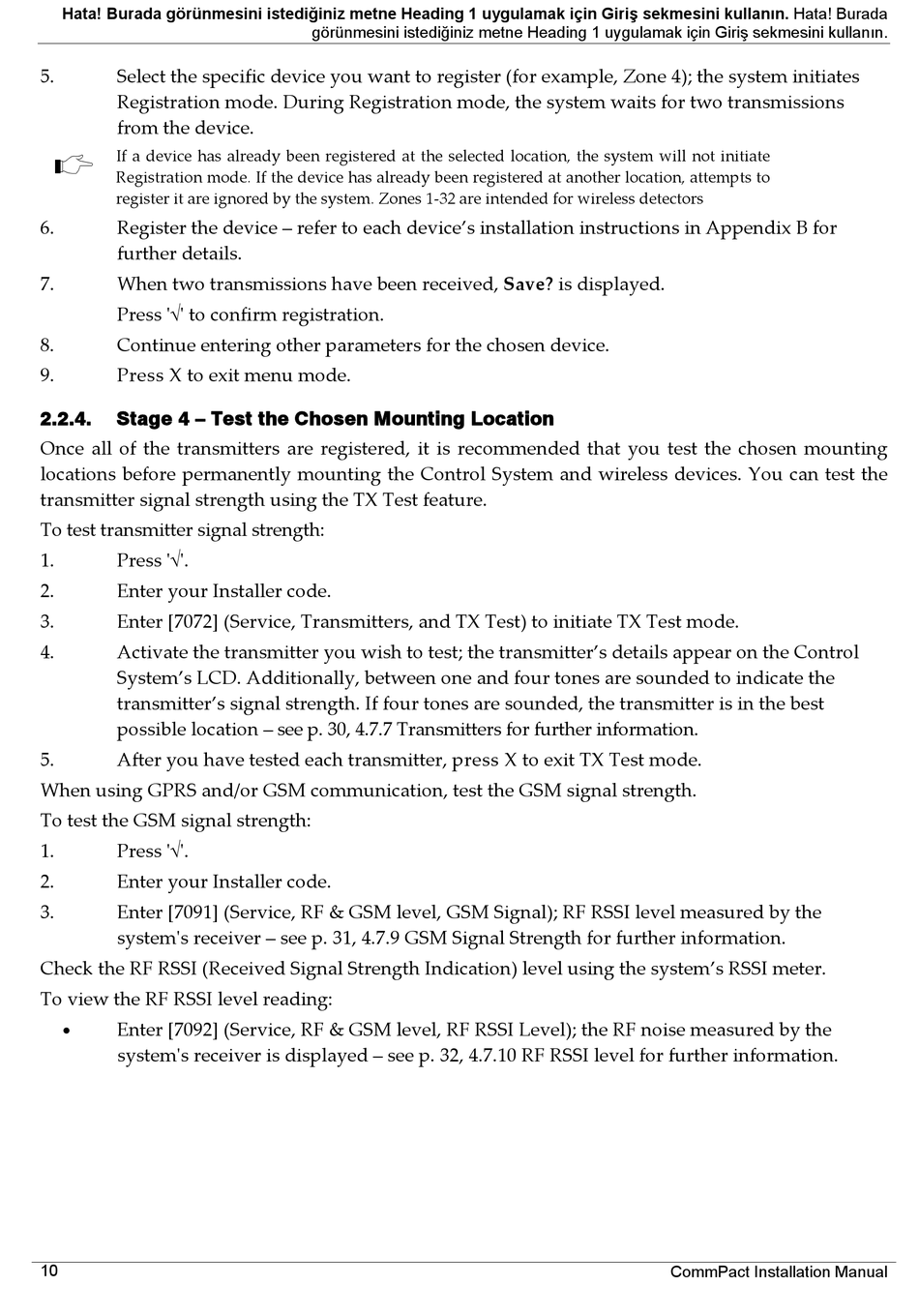

5. Select the specific device you want to register (for example, Zone 4); the system initiates
Registration mode. During Registration mode, the system waits for two transmissions
from the device.
If a device has already been registered at the selected location, the system will not initiate
Registration mode. If the device has already been registered at another location, attempts to
register it are ignored by the system. Zones 1‐32 are intended for wireless detectors
6. Register the device – refer to each device's installation instructions in Appendix B for
further details.
7. When two transmissions have been received, Save? is displayed.
Press ʹ√ʹ to confirm registration.
8. Continue entering other parameters for the chosen device.
9. Press Χ to exit menu mode.
2.2.4. Stage 4 – Test the Chosen Mounting Location
Once all of the transmitters are registered, it is recommended that you test the chosen mounting
locations before permanently mounting the Control System and wireless devices. You can test the
transmitter signal strength using the TX Test feature.
To test transmitter signal strength:
1. Press ʹ√ʹ.
2. Enter your Installer code.
3. Enter [7072] (Service, Transmitters, and TX Test) to initiate TX Test mode.
4. Activate the transmitter you wish to test; the transmitter's details appear on the Control
System's LCD. Additionally, between one and four tones are sounded to indicate the
transmitter's signal strength. If four tones are sounded, the transmitter is in the best
possible location – see p. 30, 4.7.7 Transmitters for further information.
5. After you have tested each transmitter, press Χ to exit TX Test mode.
When using GPRS and/or GSM communication, test the GSM signal strength.
To test the GSM signal strength:
1. Press ʹ√ʹ.
2. Enter your Installer code.
3. Enter [7091] (Service, RF & GSM level, GSM Signal); RF RSSI level measured by the
systemʹs receiver – see p. 31, 4.7.9 GSM Signal Strength for further information.
Check the RF RSSI (Received Signal Strength Indication) level using the system's RSSI meter.
To view the RF RSSI level reading:

Enter [7092] (Service, RF & GSM level, RF RSSI Level); the RF noise measured by the
systemʹs receiver is displayed – see p. 32, 4.7.10 RF RSSI level for further information.
