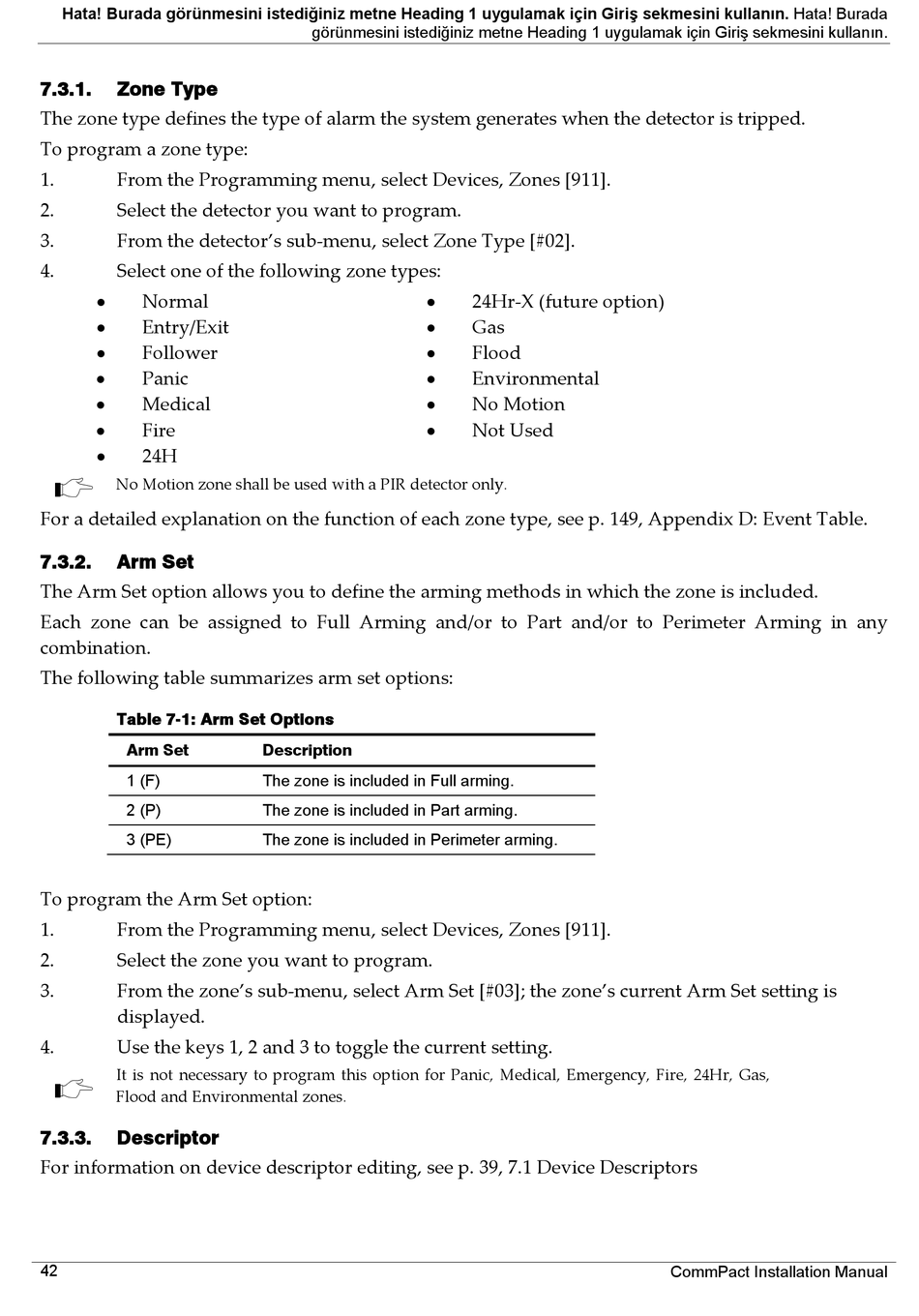

7.3.1. Zone Type
The zone type defines the type of alarm the system generates when the detector is tripped.
To program a zone type:
1. From the Programming menu, select Devices, Zones [911].
2. Select the detector you want to program.
3. From the detector's sub‐menu, select Zone Type [#02].
4. Select one of the following zone types:

Normal

Entry/Exit

Follower

Panic

Medical

Fire

24H
No Motion zone shall be used with a PIR detector only.
For a detailed explanation on the function of each zone type, see p. 149, Appendix D: Event Table.
7.3.2. Arm Set
The Arm Set option allows you to define the arming methods in which the zone is included.
Each zone can be assigned to Full Arming and/or to Part and/or to Perimeter Arming in any
combination.
The following table summarizes arm set options:
Table 7-1: Arm Set Options
Arm Set
1 (F)
2 (P)
3 (PE)
To program the Arm Set option:
1. From the Programming menu, select Devices, Zones [911].
2. Select the zone you want to program.
3. From the zone's sub‐menu, select Arm Set [#03]; the zone's current Arm Set setting is
displayed.
4. Use the keys 1, 2 and 3 to toggle the current setting.
It is not necessary to program this option for Panic, Medical, Emergency, Fire, 24Hr, Gas,
Flood and Environmental zones.
7.3.3. Descriptor
For information on device descriptor editing, see p. 39, 7.1 Device Descriptors
42
görünmesini istediğiniz metne Heading 1 uygulamak için Giriş sekmesini kullanın.






Description
The zone is included in Full arming.
The zone is included in Part arming.
The zone is included in Perimeter arming.
24Hr‐X (future option)
Gas
Flood
Environmental
No Motion
Not Used
