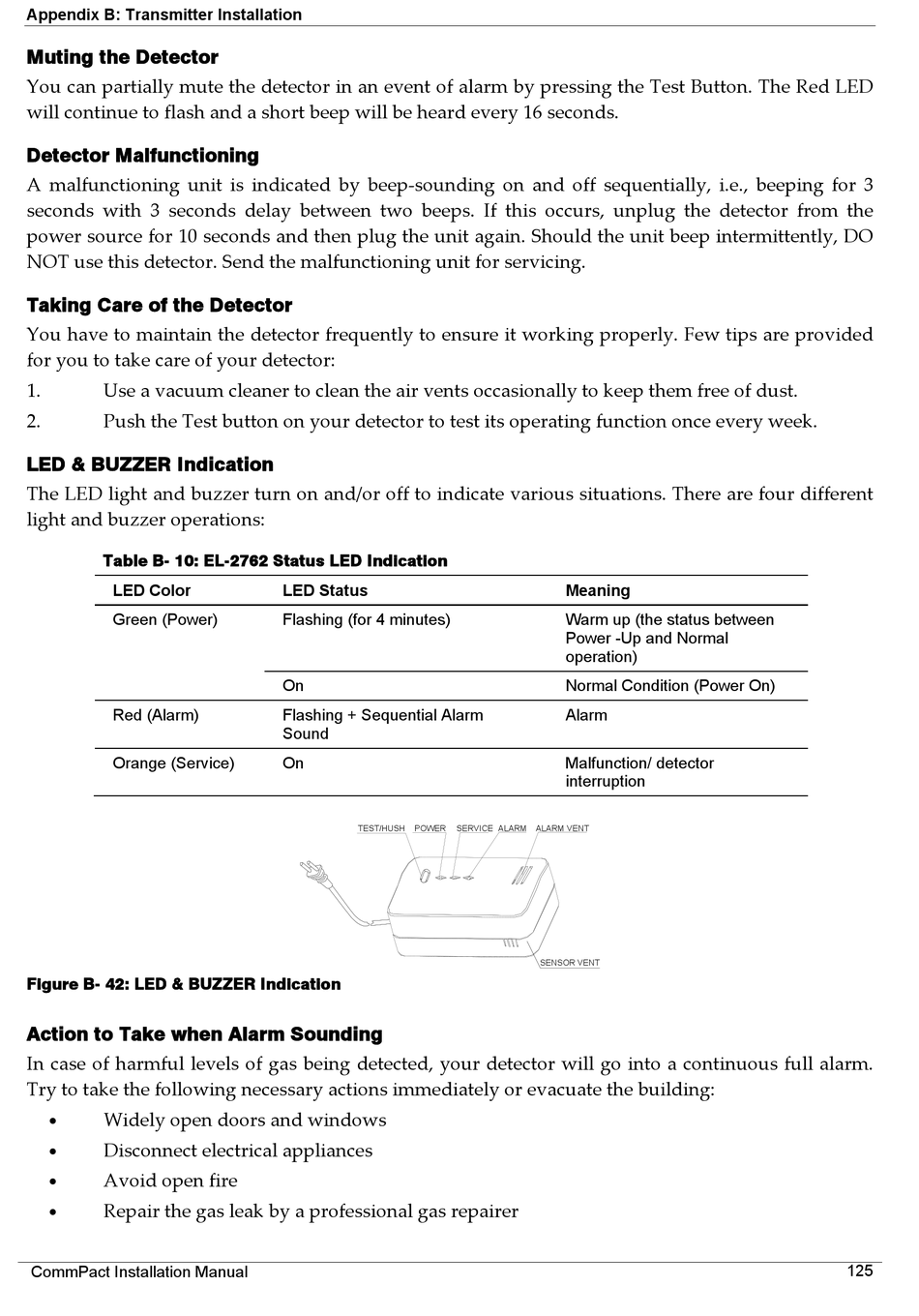

Appendix B: Transmitter Installation
Muting the Detector
You can partially mute the detector in an event of alarm by pressing the Test Button. The Red LED
will continue to flash and a short beep will be heard every 16 seconds.
Detector Malfunctioning
A malfunctioning unit is indicated by beep‐sounding on and off sequentially, i.e., beeping for 3
seconds with 3 seconds delay between two beeps. If this occurs, unplug the detector from the
power source for 10 seconds and then plug the unit again. Should the unit beep intermittently, DO
NOT use this detector. Send the malfunctioning unit for servicing.
Taking Care of the Detector
You have to maintain the detector frequently to ensure it working properly. Few tips are provided
for you to take care of your detector:
1. Use a vacuum cleaner to clean the air vents occasionally to keep them free of dust.
2. P ush the Test button on your detector to test its operating function once every week.
LED & BUZZER Indication
The LED light and buzzer turn on and/or off to indicate various situations. There are four different
light and buzzer operations:
Table B- 10: EL-2762 Status LED Indication
LED Color
Green (Power)
Red (Alarm)
Orange (Service)
Figure B- 42: LED & BUZZER Indication
Action to Take when Alarm Sounding
In case of harmful levels of gas being detected, your detector will go into a continuous full alarm.
Try to take the following necessary actions immediately or evacuate the building:

W idely open doors and windows

D isconnect electrical appliances

A void open fire

R epair the gas leak by a professional gas repairer
CommPact Installation Manual
LED Status
Flashing (for 4 minutes)
On
Flashing + Sequential Alarm
Sound
On
TEST/HUSH POWER
Meaning
Warm up (the status between
Power -Up and Normal
operation)
Normal Condition (Power On)
Alarm
Malfunction/ detector
interruption
SERVICE ALARM ALARM VENT
SENSOR VENT
