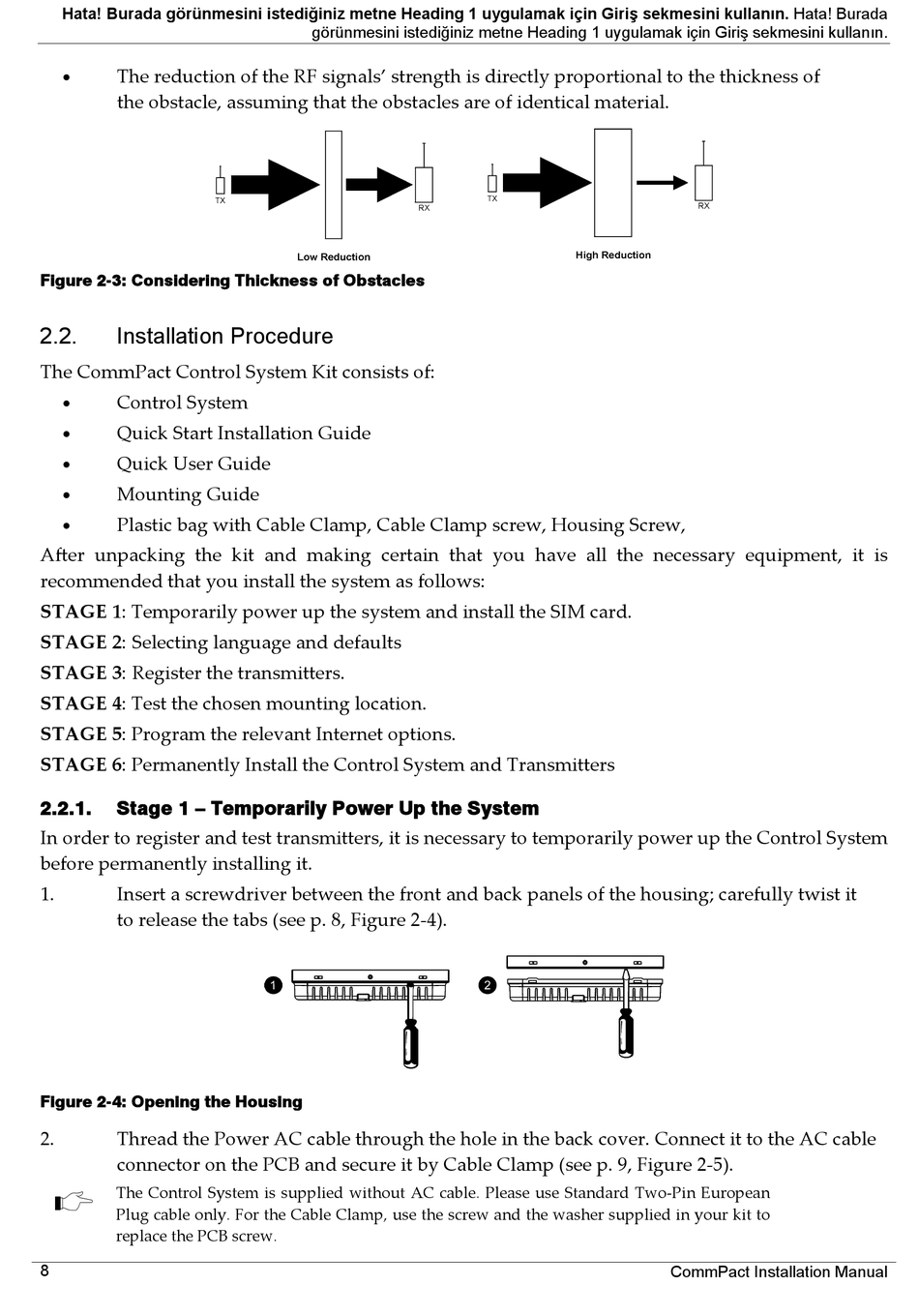

The reduction of the RF signals' strength is directly proportional to the thickness of
the obstacle, assuming that the obstacles are of identical material.
Figure 2-3: Considering Thickness of Obstacles
2.2.
Installation Procedure
The CommPact Control System Kit consists of:
Control System
Quick Start Installation Guide
Quick User Guide
Mounting Guide
Plastic bag with Cable Clamp, Cable Clamp screw, Housing Screw,
After unpacking the kit and making certain that you have all the necessary equipment, it is
recommended that you install the system as follows:
STAGE 1: Temporarily power up the system and install the SIM card.
STAGE 2: Selecting language and defaults
STAGE 3: Register the transmitters.
STAGE 4: Test the chosen mounting location.
STAGE 5: Program the relevant Internet options.
STAGE 6: Permanently Install the Control System and Transmitters
2.2.1.
Stage 1 – Temporarily Power Up the System
In order to register and test transmitters, it is necessary to temporarily power up the Control System
before permanently installing it.
1.
Insert a screwdriver between the front and back panels of the housing; carefully twist it
to release the tabs (see p. 8, Figure 2‐4).
Figure 2-4: Opening the Housing
2.
Thread the Power AC cable through the hole in the back cover. Connect it to the AC cable
connector on the PCB and secure it by Cable Clamp (see p. 9, Figure 2‐5).
The Control System is supplied without AC cable. Please use Standard Two‐Pin European
Plug cable only. For the Cable Clamp, use the screw and the washer supplied in your kit to
replace the PCB screw.
8
görünmesini istediğiniz metne Heading 1 uygulamak için Giriş sekmesini kullanın.
CommPact Installation Manual
