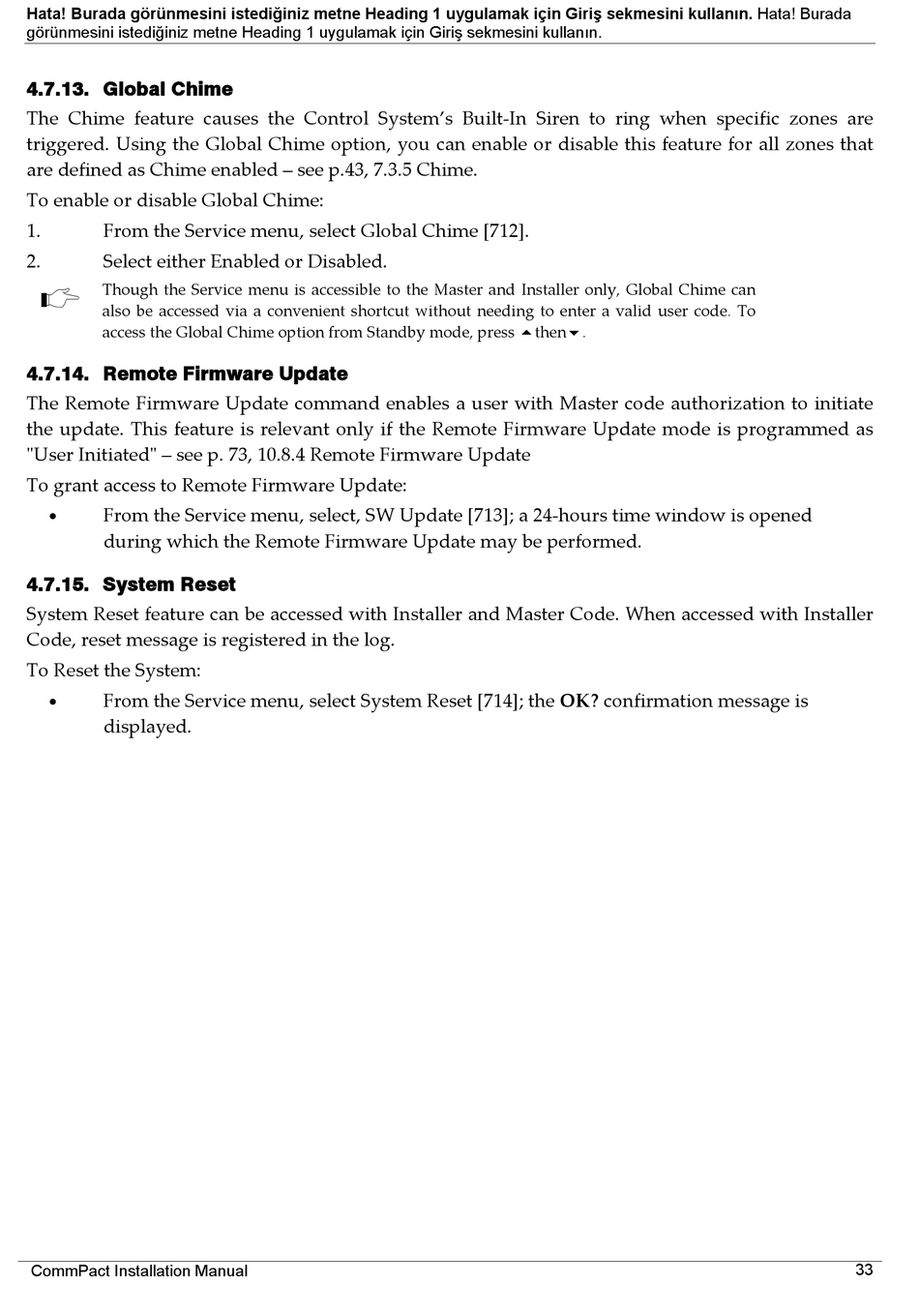

Electronics Line CommPact Installation Manual page 37

Hata! Burada görünmesini istediğiniz metne Heading 1 uygulamak için Giriş sekmesini kullanın. Hata! Burada
görünmesini istediğiniz metne Heading 1 uygulamak için Giriş sekmesini kullanın.
4.7.13. Global Chime
The Chime feature causes the Control System's Built‐In Siren to ring when specific zones are
triggered. Using the Global Chime option, you can enable or disable this feature for all zones that
are defined as Chime enabled – see p.43, 7.3.5 Chime.
To enable or disable Global Chime:
1. From the Service menu, select Global Chime [712].
2. Select either Enabled or Disabled.
Though the Service menu is accessible to the Master and Installer only, Global Chime can
also be accessed via a convenient shortcut without needing to enter a valid user code. To
access the Global Chime option from Standby mode, press then.
4.7.14. Remote Firmware Update
The Remote Firmware Update command enables a user with Master code authorization to initiate
the update. This feature is relevant only if the Remote Firmware Update mode is programmed as
ʺUser Initiatedʺ – see p. 73, 10.8.4 Remote Firmware Update
To grant access to Remote Firmware Update:

From the Service menu, select, SW Update [713]; a 24‐hours time window is opened
during which the Remote Firmware Update may be performed.
4.7.15. System Reset
System Reset feature can be accessed with Installer and Master Code. When accessed with Installer
Code, reset message is registered in the log.
To Reset the System:

From the Service menu, select System Reset [714]; the OK? confirmation message is
displayed.
