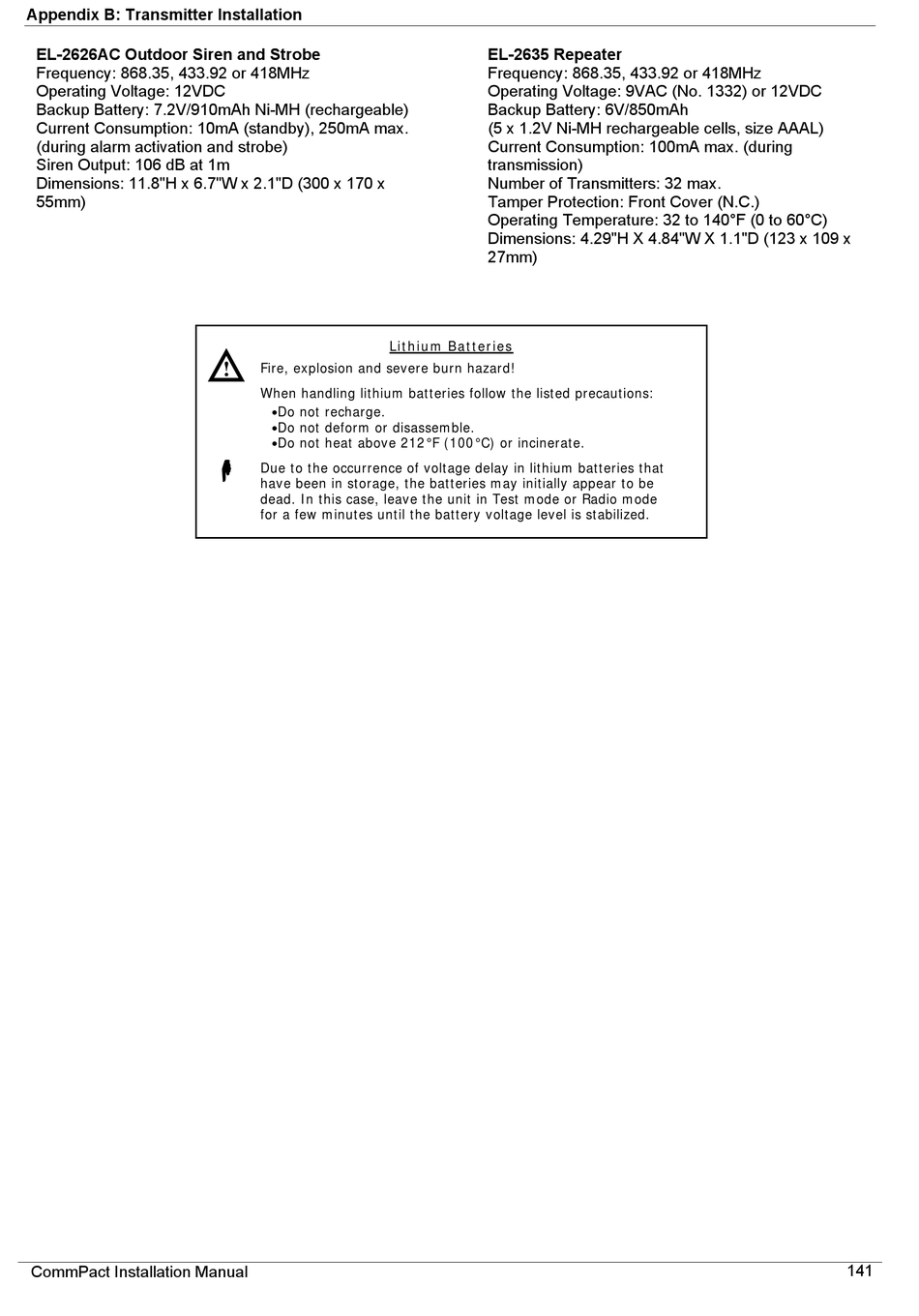

Appendix B: Transmitter Installation
EL-2626AC Outdoor Siren and Strobe
Frequency: 868.35, 433.92 or 418MHz
Operating Voltage: 12VDC
Backup Battery: 7.2V/910mAh Ni-MH (rechargeable)
Current Consumption: 10mA (standby), 250mA max.
(during alarm activation and strobe)
Siren Output: 106 dB at 1m
Dimensions: 11.8"H x 6.7"W x 2.1"D (300 x 170 x
55mm)
CommPact Installation Manual
Lithium Batteries
Fire, explosion and severe burn hazard!
!
When handling lithium batteries follow the listed precautions:
 Do not recharge.
 Do not deform or disassemble.
 Do not heat above 212°F (100°C) or incinerate.

Due to the occurrence of voltage delay in lithium batteries that
have been in storage, the batteries may initially appear to be
dead. In this case, leave the unit in Test mode or Radio mode
for a few minutes until the battery voltage level is stabilized.
EL-2635 Repeater
Frequency: 868.35, 433.92 or 418MHz
Operating Voltage: 9VAC (No. 1332) or 12VDC
Backup Battery: 6V/850mAh
(5 x 1.2V Ni-MH rechargeable cells, size AAAL)
Current Consumption: 100mA max. (during
transmission)
Number of Transmitters: 32 max.
Tamper Protection: Front Cover (N.C.)
Operating Temperature: 32 to 140°F (0 to 60°C)
Dimensions: 4.29"H X 4.84"W X 1.1"D (123 x 109 x
27mm)
