3 Basic System Operation

3. Basic System Operation
The iConnect Control System is available with the LCD front panel configuration. Below you will find description of
the LCD front panel layout.
3.1.

Front Panel Layout

The front panel provides a detailed interface for operating and programming the system. The following diagram will
familiarize you with the various elements of the front panel.
LCD
Display
Arming
Keys
Alpha-
numeric
Keypad

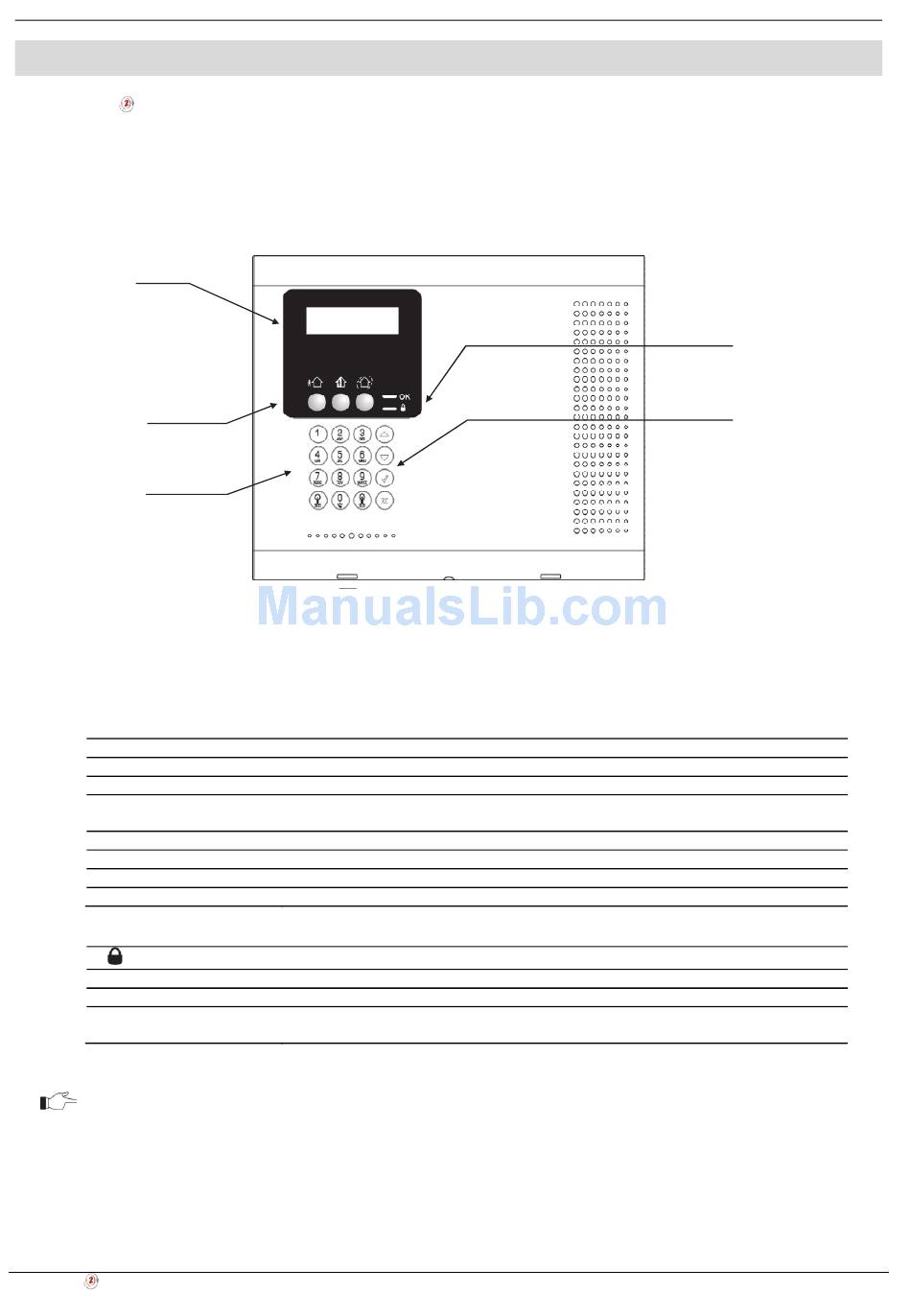

Figure 3-1: Front Panel
3.2.

Front Panel System Status LEDs

The two LEDs, OK and Arm Status, provide essential information on the status of the system.
Table 3-1: OK LED Indication
OK LED Status
Off
Green On
Green Flashing
Yellow On
Yellow Flashing (slow)
Yellow Flashing (fast)
Yellow Intermittent On/Off
Table 3-2: Arm Status LED Indication
LED Status
Off
Green On
Red Flashing
Alarm indication is not displayed after a silent panic alarm.
3.3.

Front Panel Keypad and Wireless LCD Keypad

The alphanumeric keypad on the front panel enables you to perform various operation and programming tasks. Apart
from the regular functions of a standard alphanumeric keypad, Full, Part, and Perimeter arming, Home Automation
and PGM control, the keypad offers a number of special functions.
iConnect Installation Manual
Meaning
Both AC and Battery power are disconnected.
System Power Status is OK and there is System Trouble.
Open Zone. Check that the windows and doors are closed and no movement is detected by
the detectors within the protected area.
System Trouble.
Backup battery low or low battery from transmitters.
AC loss.
System Trouble in addition to AC loss/Low Battery.
Meaning
The system is disarmed.
The system is armed.
An alarm has occurred. Alarm indication is cleared the next time you arm the system or
view the relevant event in the event log.
System
Status
LEDs
Menu
Navigation
Keys
13
