4.

Advanced System Operation

Besides the basic arming functions described in the previous chapter, you can access additional
functions via the menu. This chapter describes these functions and the menu navigation procedure.
4.1.

Menu Navigation

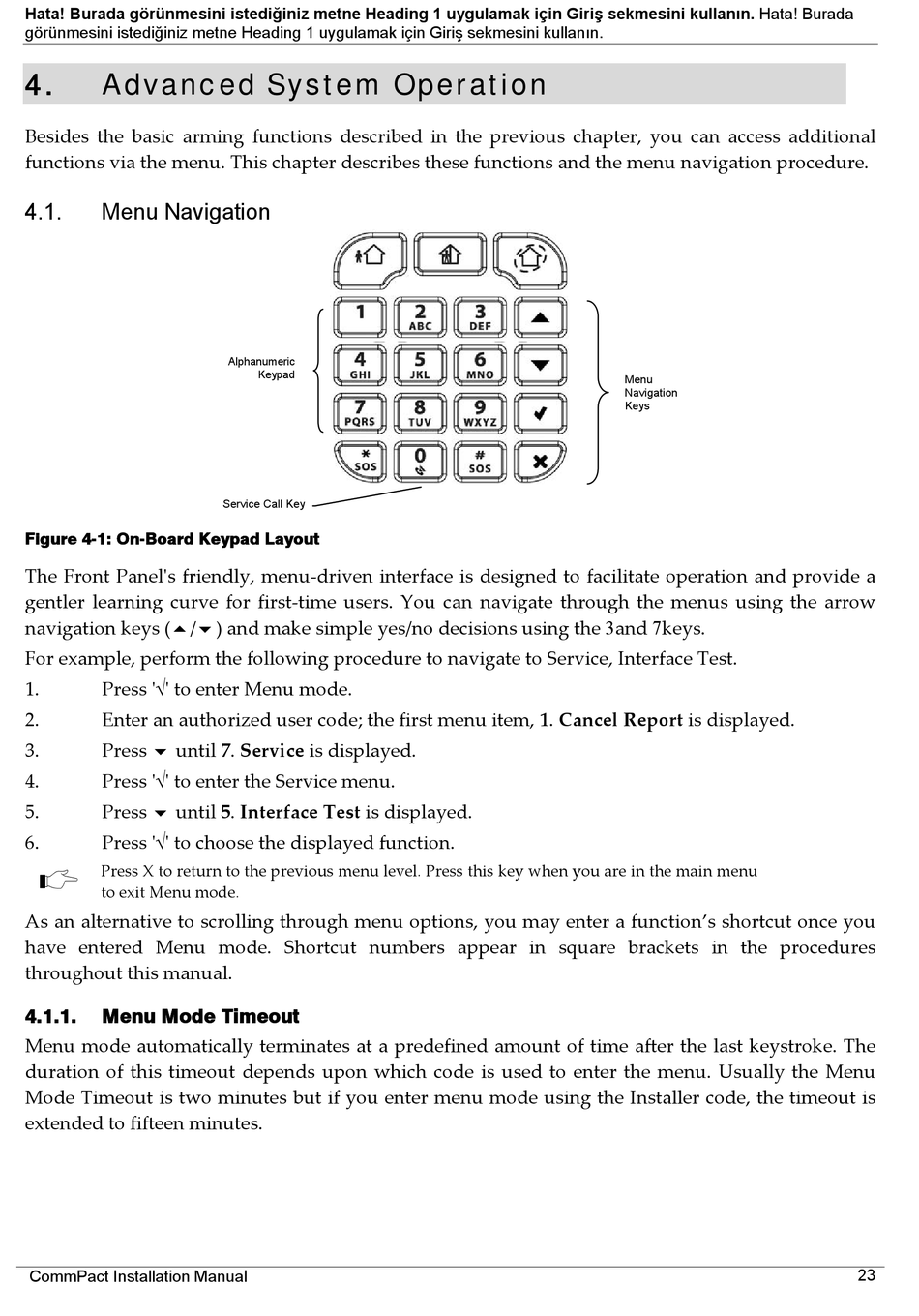

Figure 4-1: On-Board Keypad Layout
The Front Panelʹs friendly, menu‐driven interface is designed to facilitate operation and provide a
gentler learning curve for first‐time users. You can navigate through the menus using the arrow
navigation keys (/) and make simple yes/no decisions using the and keys.
For example, perform the following procedure to navigate to Service, Interface Test.
1. Press ʹ√ʹ to enter Menu mode.
2. Enter an authorized user code; the first menu item, 1. Cancel Report is displayed.
3. Press  until 7. Service is displayed.
4. Press ʹ√ʹ to enter the Service menu.
5. Press  until 5. Interface Test is displayed.
6. Press ʹ√ʹ to choose the displayed function.
Press Χ to return to the previous menu level. Press this key when you are in the main menu
to exit Menu mode.
As an alternative to scrolling through menu options, you may enter a function's shortcut once you
have entered Menu mode. Shortcut numbers appear in square brackets in the procedures
throughout this manual.
4.1.1. Menu Mode Timeout
Menu mode automatically terminates at a predefined amount of time after the last keystroke. The
duration of this timeout depends upon which code is used to enter the menu. Usually the Menu
Mode Timeout is two minutes but if you enter menu mode using the Installer code, the timeout is
extended to fifteen minutes.
CommPact Installation Manual
Alphanumeric
Keypad
Service Call Key
Menu
Navigation
Keys
