7.3.7. Repeater (Wireless Zones Only)
The EL‐2635 repeater is an additional module that extends the range of the wireless transmitters.
For a detector to use the repeater to relay transmissions to the system, you must define the Repeater
option for its zone as ʺUse Repeaterʺ.
To program the Repeater option:
1. From the Programming menu, select Devices, Zones [911].
2. Select the zone you want to program.
3. From the zone's sub‐menu, select Repeater [#09]; the zone's current Repeater setting is
displayed.
4. Select either No Repeater or Use Repeater.
Do not register the same transmitter to more than one repeater.
7.3.8. Loop Type (Wired zone 33 only)
This option enables you to determine the zone's loop type.
The Control System supports the following Loop Types:

Normally Closed (N.C.) – alarm on open, restore on close

Normally Open (N.O.) – alarm on close, restore on open

End of Line Resistor (E.O.L.R.) – alarm on short, alarm on open, restore on close

Double End of Line Resistor (D.E.O.L.R) – alarm on short, alarm on open, restore on
close, and tamper alarm on tamper.
The zone Loop Types must be defined accordingly at each zone's programming parameters.

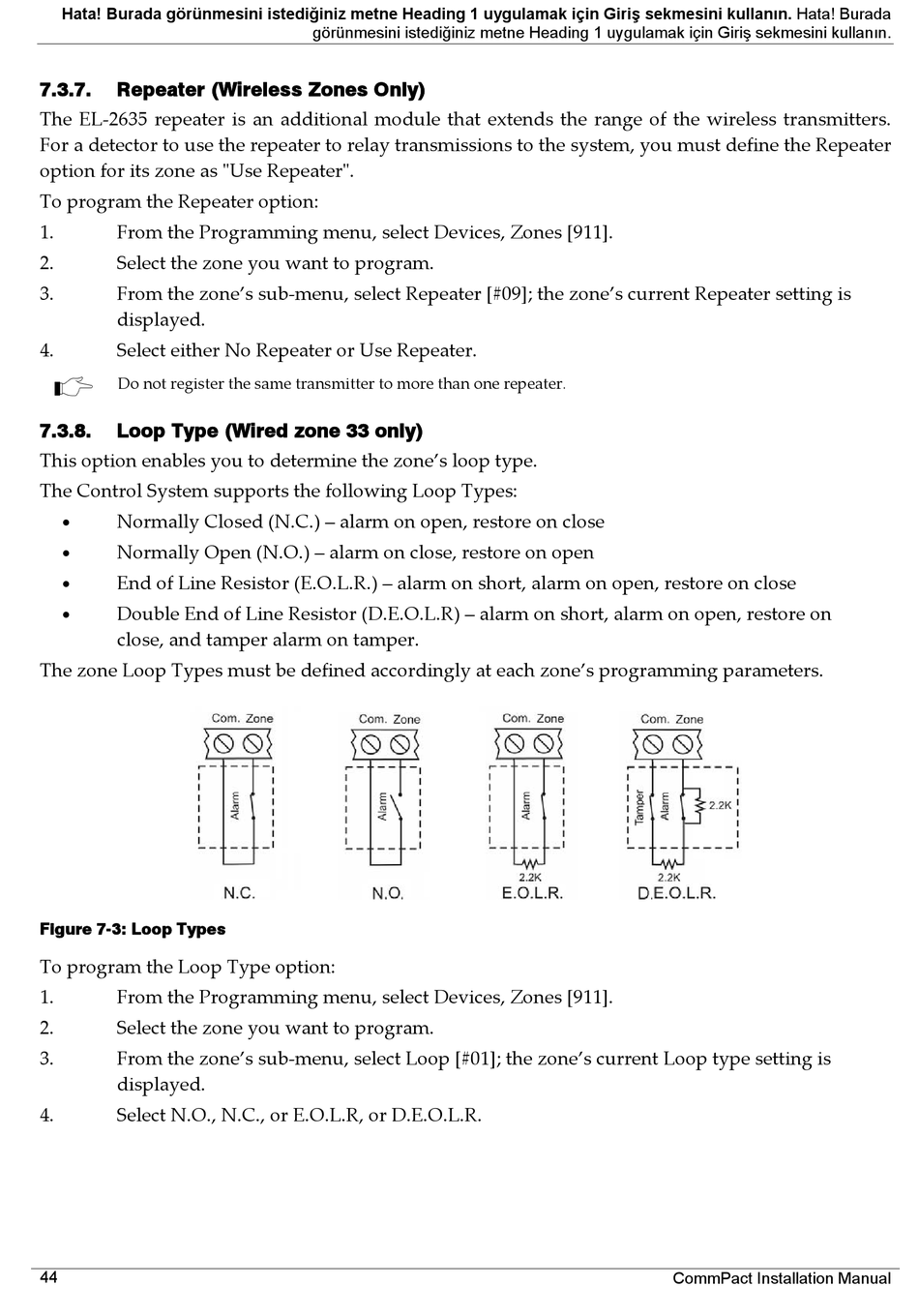

Figure 7-3: Loop Types
To program the Loop Type option:
1. From the Programming menu, select Devices, Zones [911].
2. Select the zone you want to program.
3. From the zone's sub‐menu, select Loop [#01]; the zone's current Loop type setting is
displayed.
4. Select N.O., N.C., or E.O.L.R, or D.E.O.L.R.
