Alternatively, the EL‐2663 can be registered to the receiver by manually entering the
transmitterʹs serial number.
4. Before permanently mounting the unit, test the transmitter from the exact mounting
position. If necessary, relocate the transmitter to a better position.
5. To remove the printed circuit board (PCB), press the PCB release tab, carefully lift the
board and slide it away from the back cover.
6. Mount the back cover to the wall using two screws and replace the PCB.
7. Test the transmitter making certain that the LED is lit during transmissions.
8. Close the front cover of the EL‐2663.

Outdoor Siren and Strobe (EL-2626AC)

The EL‐2626AC is a wireless siren and strobe designed for use with the control system. In the event
of an alarm the control system activates the siren and strobe. The siren is sounded until the end of
the siren cutoff programmed at the control system. After the siren cutoff has expired, the strobe
continues to flash until the system is disarmed.
Upper
Mounting
Hole
Backup
Battery Pack
Rear Tamper
Switch
Main Terminal
Block
Lower
Mounting Hole
Rear Tamper
Terminal Block
Transmission LED
External
Tamper Jumper
Front Tamper
Terminal Block
Transmitter Delete
Button

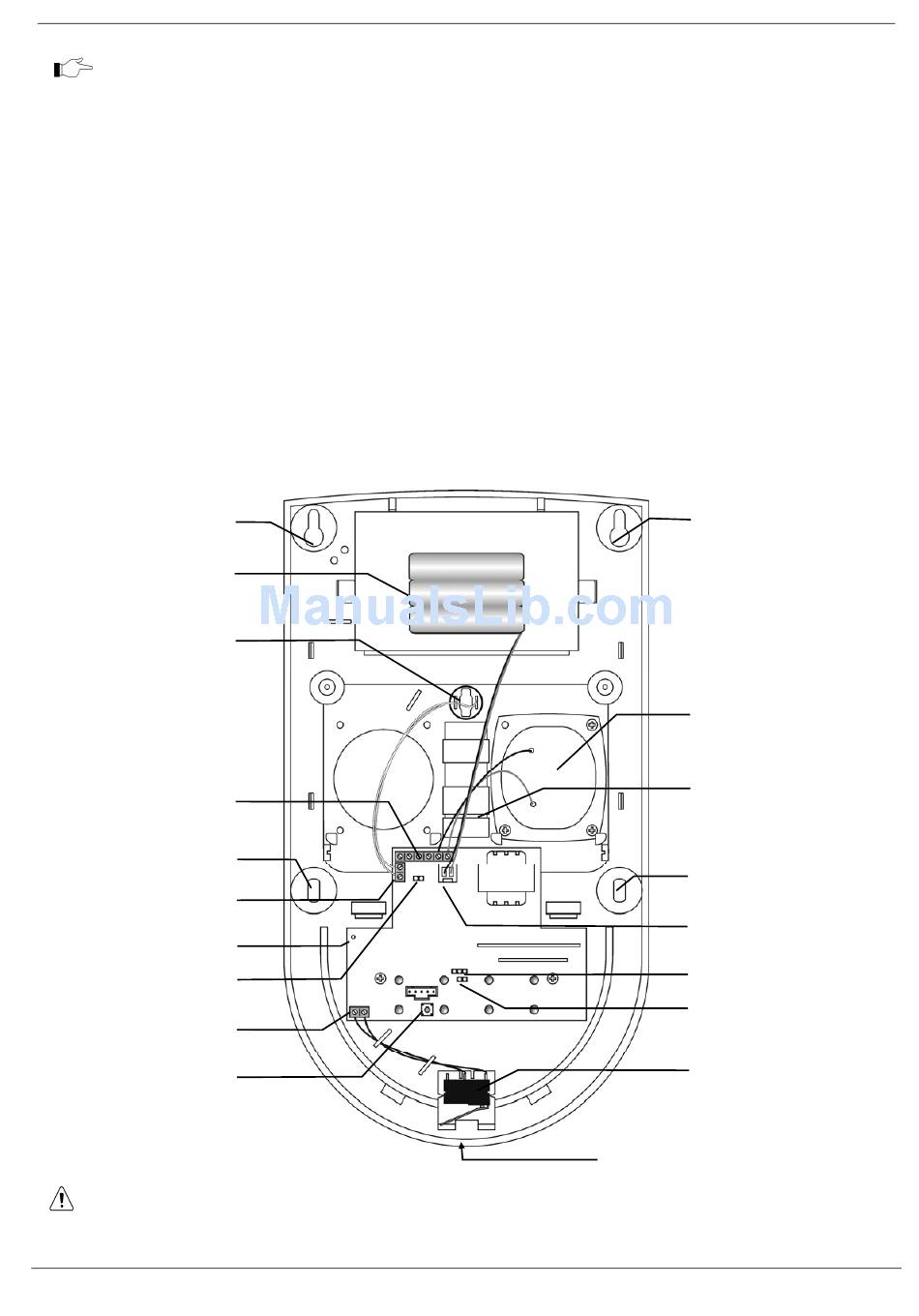

Figure B- 49: EL-2626AC Transmitter (Cover Off)
Wear hearing protection when installing the siren.
132
Appendix B: Transmitter Installation
Upper
Mounting
Hole
Siren
Cable Entry
Hole
Lower
Mounting Hole
Battery Connector
Mode Jumper (JP1)
Arming Tones
Jumper (JP2)
Front Cover
Tamper Switch
Location of
Cover Screw
