Appendix B: Transmitter Installation
LED & BUZZER Indication
The LED light and the buzzer turn on and/or off to indicate various situations. There are four
different light and buzzer operations:
Table B- 11: EL-2762 Status LED Indication
LED
Green (Power)
Red (Alarm)
Orange
(Service)
All LED's

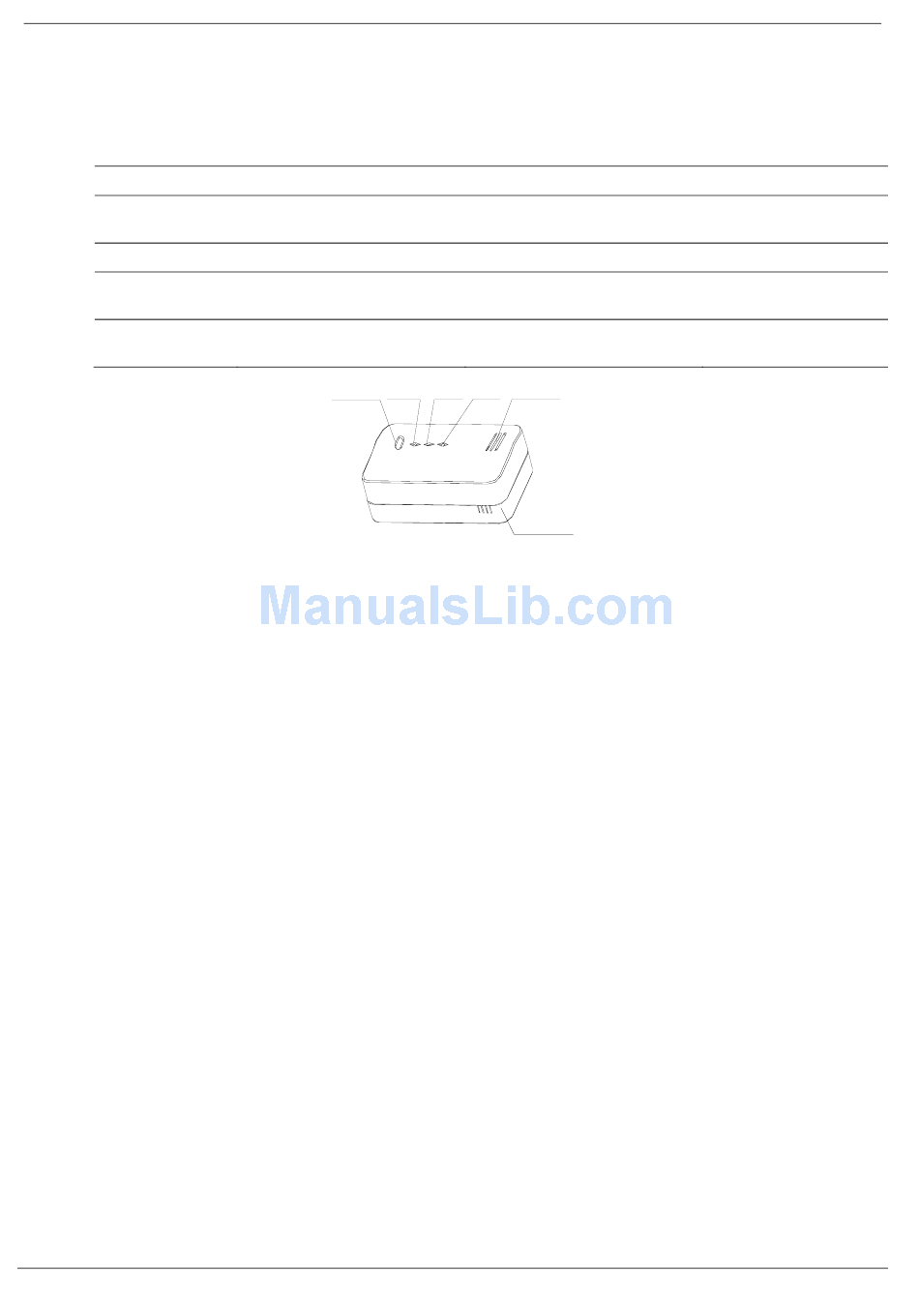

Figure B- 47: LED & BUZZER Indication
Testing and Resetting Your Detector
A green power light indicates that power is supplied. To test the detector, press the Test button. The
detector will beep intermittently and the three LEDs will flash. Release the Test button. The beep
and the three LEDs will stop and the green LED remains on or flashes every 60 seconds.
Muting Your Detector
You can partially mute the detector in an event of alarm by pressing the Test Button. The Red LED
will continue to flash and a short beep will be heard every 16 seconds.
Detector Malfunctioning
A malfunctioning unit is indicated by beep‐sounding on and off sequentially, i.e., beeping for 3
seconds with 3 seconds delay between two beeps. If this occurs, remove the batteries from the unit
for 10 seconds and then install them again. Should the unit again beep intermittently, DO NOT use
this detector. Send the malfunctioning unit to the manufacturer for servicing.
Taking Care of Your Detector
You have to maintain the detector to ensure proper operation:
1. Use a vacuum cleaner to clean the air vents occasionally to keep them free of dust.
2. Press the Test button on your detector to test its operation once every week.
CommPact Installation Manual
LED Status
Flashing On and Off every
30 seconds
Flashing
Flashing On and Off
Flashing
TEST/HUSH POWER
Buzzer
Sequential Alarm Sound
Sequential Alarm Sound
3 beeps for a period of 3
seconds
SERVICE ALARM ALARM VENT
SENSOR VENT
Meaning
Normal condition
Alarm
Internal self test fail
- service required
Test mode
