LED should only be disabled after successfully walk testing the detector.
Changing Lenses
To change a lens, release the cavity seal using a small screwdriver and fix the new lens into place
with the smooth side facing outwards. Verify that the word TOP is located at the top of the lens
(alternatively a notch may appear on the bottom edge of the lens) before snapping the cavity seal
back into place.
Battery Replacement
In case of a low battery (2.5 V and below), the sensor low battery condition is reported to the
Control System and low battery message is displayed
To replace a battery: Open the housing by removing the front cover (see Installation Instructions),
replace the battery, and close the front cover.
Close the front cover immediately after each battery replacement.

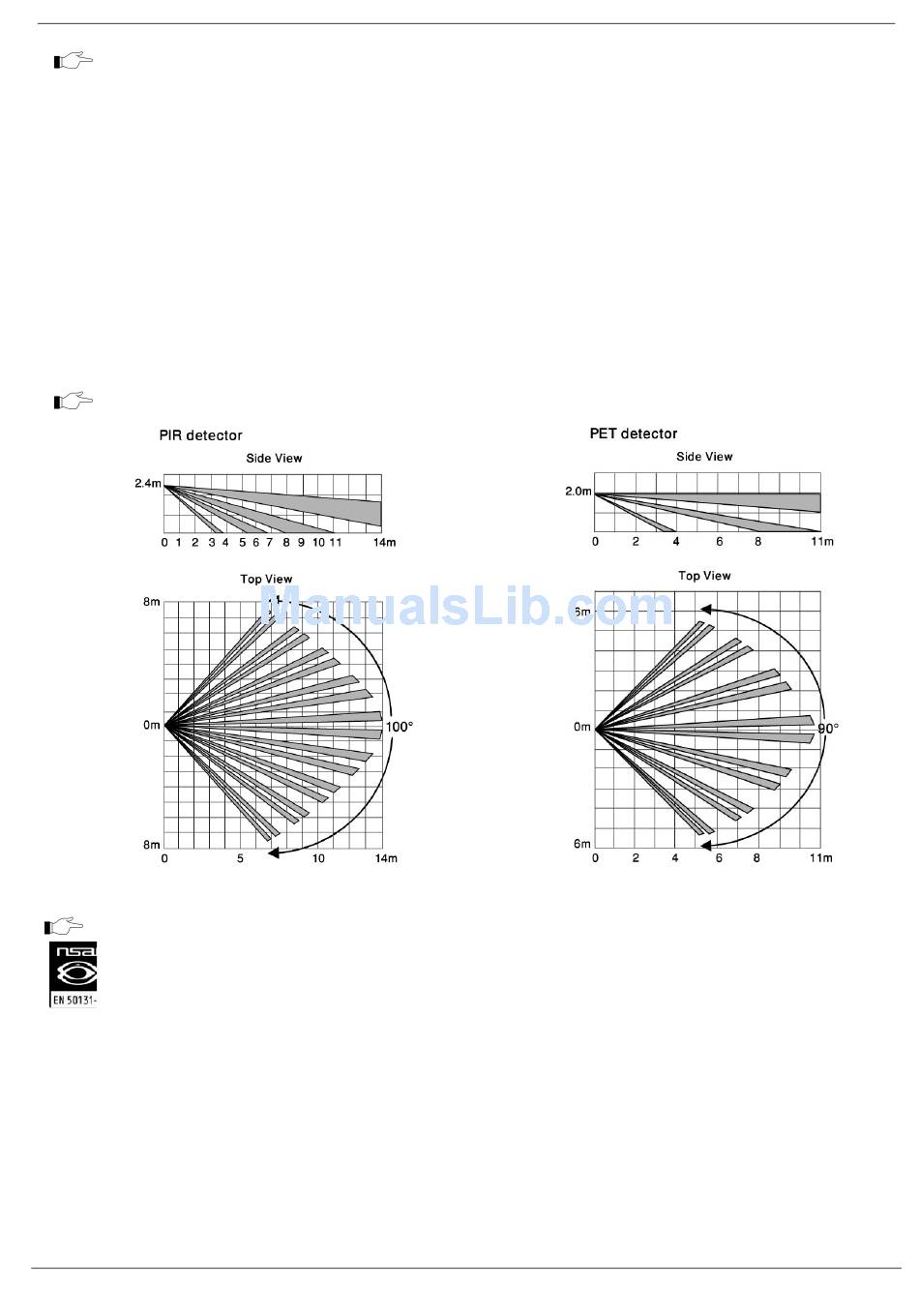

Figure B- 4: Lens Coverage Diagrams EL-2645 (left) and EL-2645PI (right)
The diagram shows the coverage pattern for the detector fitted with a standard lens.
EL‐2645 complies with EN‐50131 2‐2 Grade 2 Class II Power Supply Type C

Directional PIR (EL-2650XL)

The EL‐2650XL is a wireless PIR detector that is able to distinguish between permitted and non‐
permitted motion. This allows the occupants free movement within the premises while detecting
intrusion via doors or windows. The detector implements a feature to combat the problem of
multiple transmissions, which drastically reduce the life of the batteries. After a transmission is
made, the EL‐2650XL initiates a delay of approximately three minutes during which transmissions
will not be sent. The detector operates in two selectable modes: Curtain and Directional.
