Appendix B: Transmitter Installation
Registration Procedure
To register wireless keypad EL‐2620:
1. From the Programming menu, select Devices, Keypads [913].
2. Select the keypad you want to register; the system initiates Registration mode.
3. Press a button on the keypad making sure that a LED lights up when the button is
pressed.
4. Press the same button again. When Save? appears on the Control System's LCD display,
press ʹ√ʹ.
Do not write user codes on the reference card.

Wireless Indication Keypad (EL-2621)

The EL‐2621 Wireless Keypad offers additional two‐way functionality. Arm and alarm status is
indicated by LEDs—see Table B‐ 9. During operation, the Control System automatically
synchronizes the list of valid user codes at the keypad.
A slide‐out reference card on the rear of the EL‐2620 can be used for writing essential information.

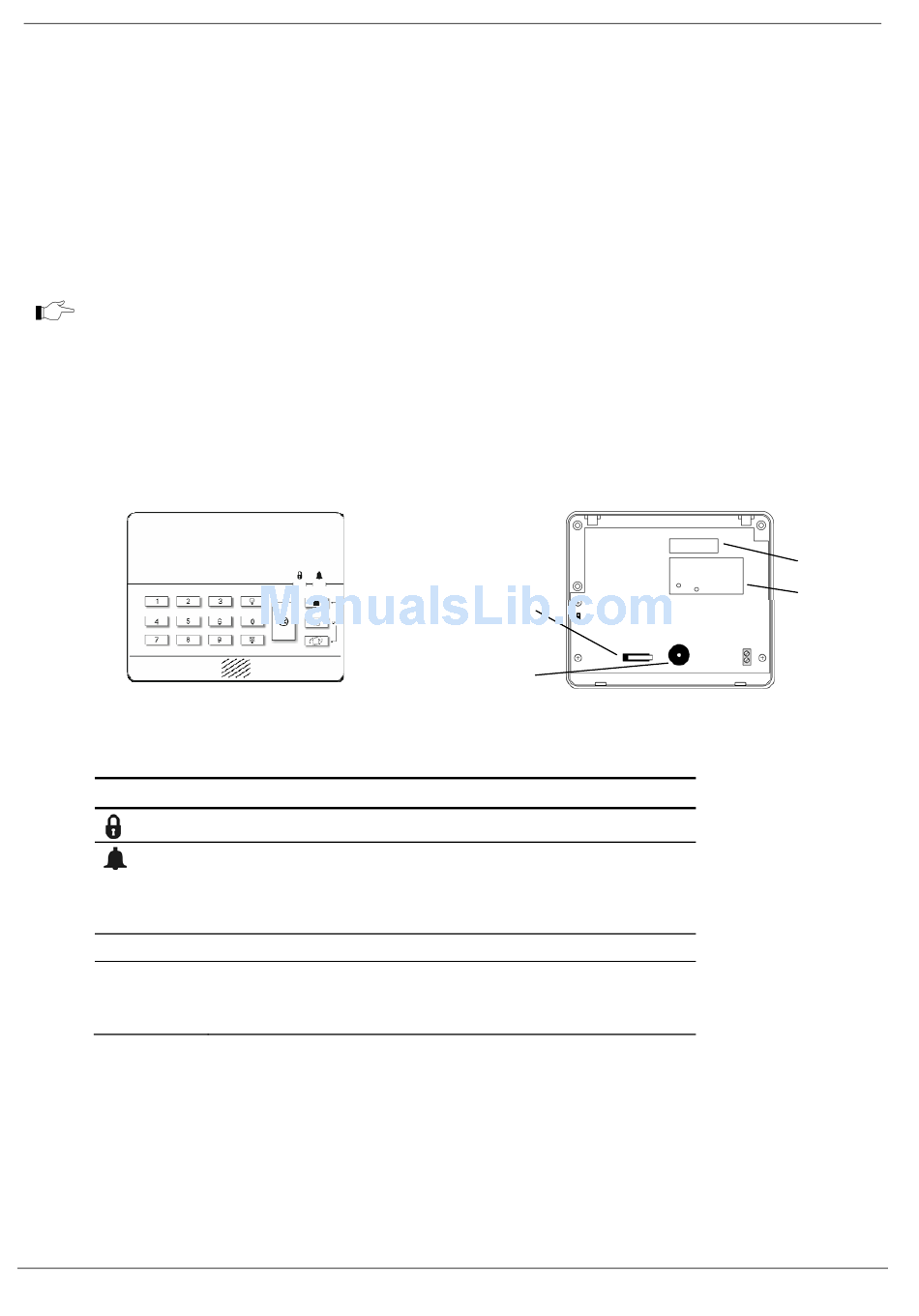

Figure B- 36: EL-2621
Table B- 9: EL-2621 Status LED Indication
LED Status
Both LEDs
Both LEDs &
Backlight
CommPact Installation Manual
Meaning
On – System Armed; Off – System Disarmed
Flashing – Alarm indication (in addition, the buzzer sounds two
tones every 10 seconds). The alarm indication continues until the
next change in arm/disarm status.
Note: Silent alarms are not indicated by the EL-2621.
Flashing – the keypad is in Registration mode.
Flashing – the Control System is updating the user codes list.
Note: During this indication, the keypad is temporarily
locked.
Tamper
Switch
Buzzer
Figure B- 37: EL-2621 (Back Cover Off)
Transmitter
Receiver
