Foundry IronPoint 200 User Guide

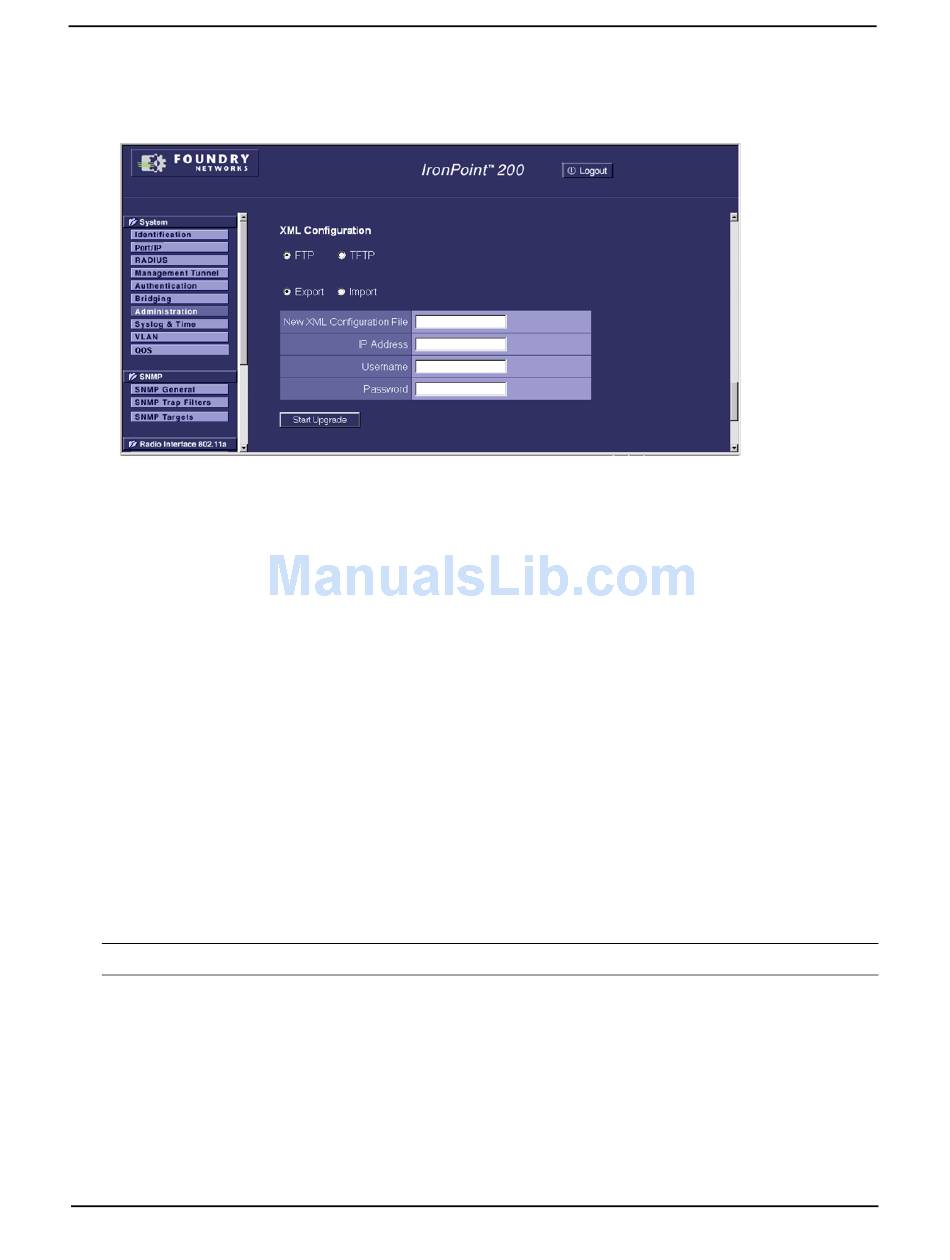

To upload or download a readable text XML configuration file, scroll down to the XML Configuration
section.
Configurable Parameters
XML Configuration – Uploads or downloads an access point XML configuration file to or from a
specified remote FTP or TFTP server. After filling in the following fields, click Export/Import XML
Config to proceed.
• FTP/TFTP: Selects either an FTP or TFTP server.
• Export/Import: Selects either an upload or download operation for the XML configuration file.
• New XML Configuration File: Specifies the name of the configuration file on the server. The
configuration file name must end with the file extension ".xml," such as "syscfg.xml." A path on the
server can be specified using "/" in the name, providing the path already exists; for example,
"myfolder/syscfg.xml." Other than to indicate a path, the file name must not contain any slashes (\
or /), the leading letter cannot be a period (.), and the maximum length for file names on the
FTP/TFTP server is 255 characters. (Valid characters: A-Z, a-z, 0-9, ".", "-", "_")
• IP Address: IP address or host name of FTP or TFTP server.
• Username: The user ID used for login on an FTP server.
• Password: The password used for login on an FTP server.
Note: The importing of XML configuration files is not supported in the current software release.
