Radio Interface Configuration
association timeout intervals. If you are using WEP keys, enter at least one key and set the keys to
use for each VAP interface. Modify other settings as required. Click Apply.

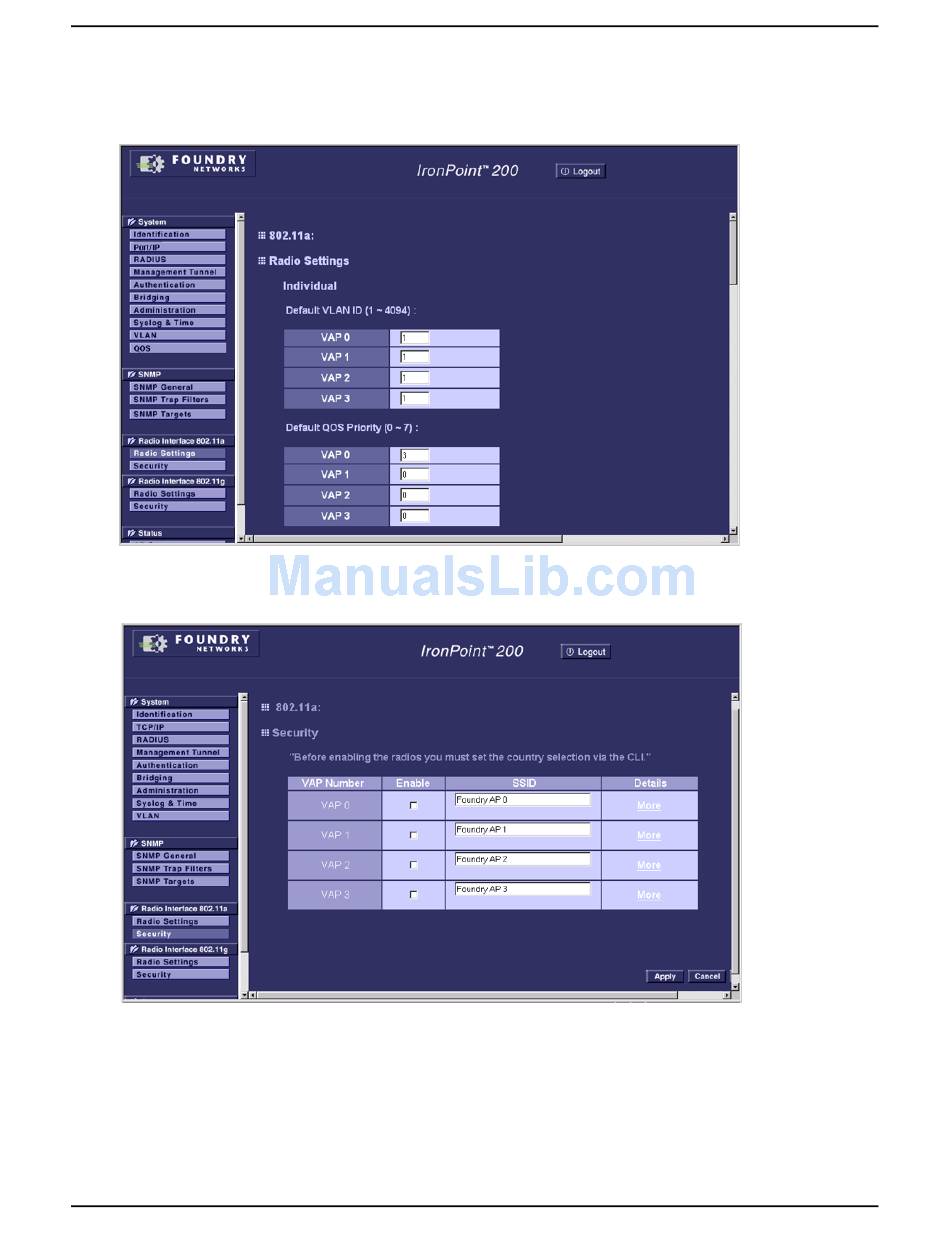

From the main menu, under the Radio Interface 802.11a, click Security. Set the SSID for each VAP
interface and select Enable. Click Apply.
Enable – Enables radio communications using the VAP interface. (Default: Disable)
SSID – The name of the basic service set provided by a VAP interface. Clients that want to connect
to the network through the access point must set their SSID to the same as that of an access point
VAP interface. (Default: Foundry AP (0 to 3); Range: 1-32 characters)
Default VLAN ID – The VLAN ID assigned to wireless clients associated to the VAP interface that
are not assigned to a specific VLAN by RADIUS server configuration. (Default: 1)
