Foundry IronPoint 200 User Guide

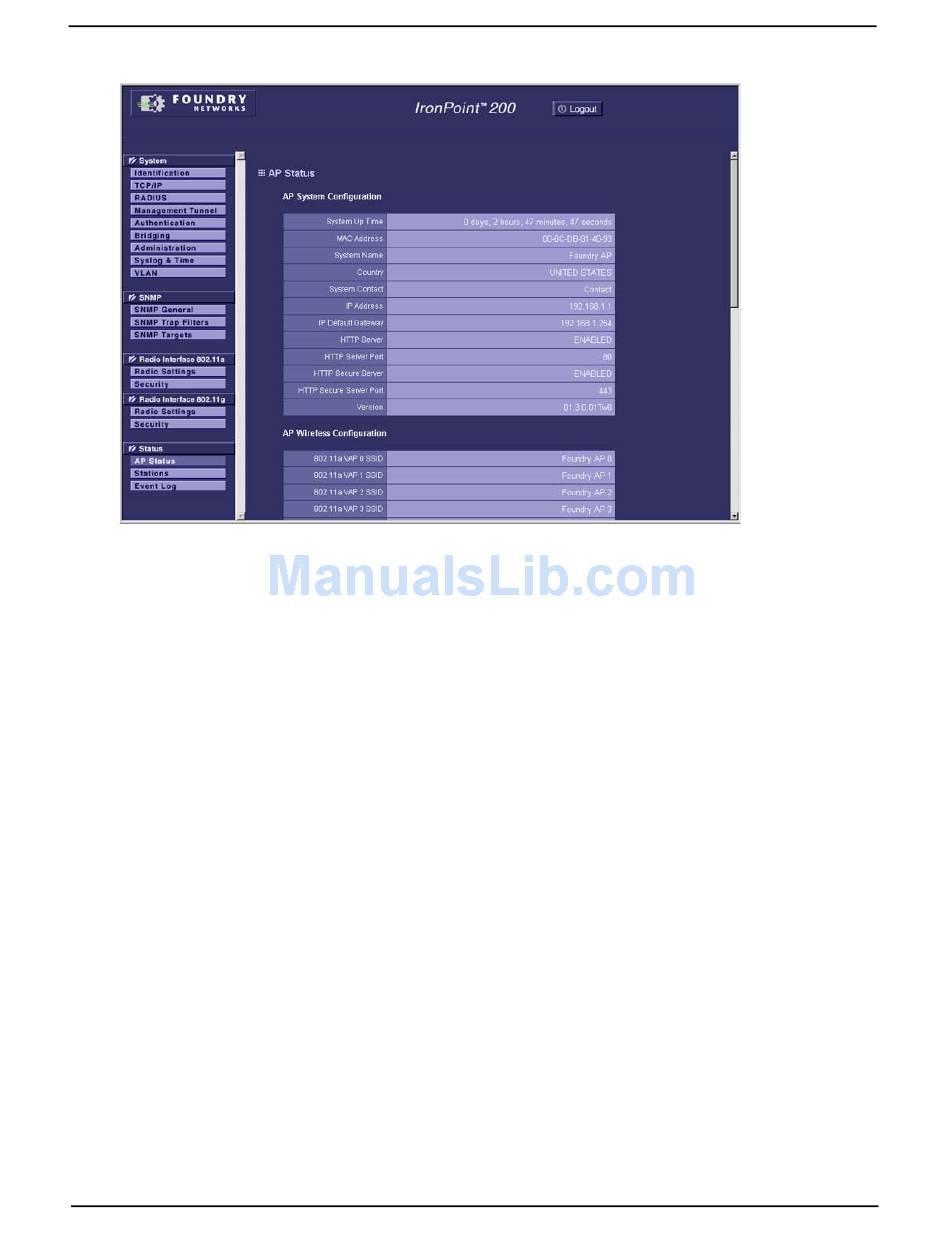

AP System Configuration – The AP System Configuration table displays the basic system
configuration settings:
•
System Up Time: Length of time the management agent has been up.
•
MAC Address: The physical layer address for this device.
•
System Name: Name assigned to this system.
•
Country: The access point's Country Code setting.
•
System Contact: Administrator responsible for the system.
•
Speed-Duplex Actual: The current speed and duplex mode of the Ethernet port.
•
Speed-Duplex Configured: The configured speed and duplex mode of the Ethernet port.
•
IP Address: IP address of the management interface for this device.
•
IP Default Gateway: IP address of the gateway router between this device and management
stations that exist on other network segments.
•
HTTP Server: Shows if management access via HTTP is enabled.
•
HTTP Server Port: Shows the TCP port used by the HTTP interface.
•
HTTP Secure Server: Shows if management access via secure HTTPS/SSL is enabled.
•
HTTP Secure Server Port: Shows the TCP port used by the secure HTTPS/SSL interface.
•
Version: Shows the version number for the runtime code.
23-4
© 2006 Foundry Networks, Inc.
December 2006
