Laser Setup
Laser On Position
Definition: Percentage of the full scan arc that the
scan beam moves through before the
laser turns ON. For example, if set for
30, the laser will be off during the first
30 percent of the scan.
When Laser Framing is disabled, the
laser is ON for 100 percent of the full
scan. When Laser Framing Status is
enabled, the laser remains OFF from
the start of the scan and remains OFF
for the specified percentage of the
scan, which is up to 70 percent of the
scan, as specified by this command.
Serial Cmd: <K700,laser on/off status,laser framing
off position,laser power>
Default: 10
Options: 1 to 80
Laser Off Position
Definition: Percentage of the full scan arc that
the scan beam moves through
before the laser turns OFF.
Notes:
The combined values of Laser On
Position and Laser Off Position
cannot exceed 100 percent, the total
arc of one scan.
Laser Off Position must always
exceed the value of Laser On Posi-
tion for an actual laser scan to take
place.
Serial Cmd: <K700,laser on/off status,laser framing status,laser on
off
Default: 90
Options: 20 to 100
MS-3 Laser Scanner User's Manual
4-22
position,laser power>
Laser On
Position

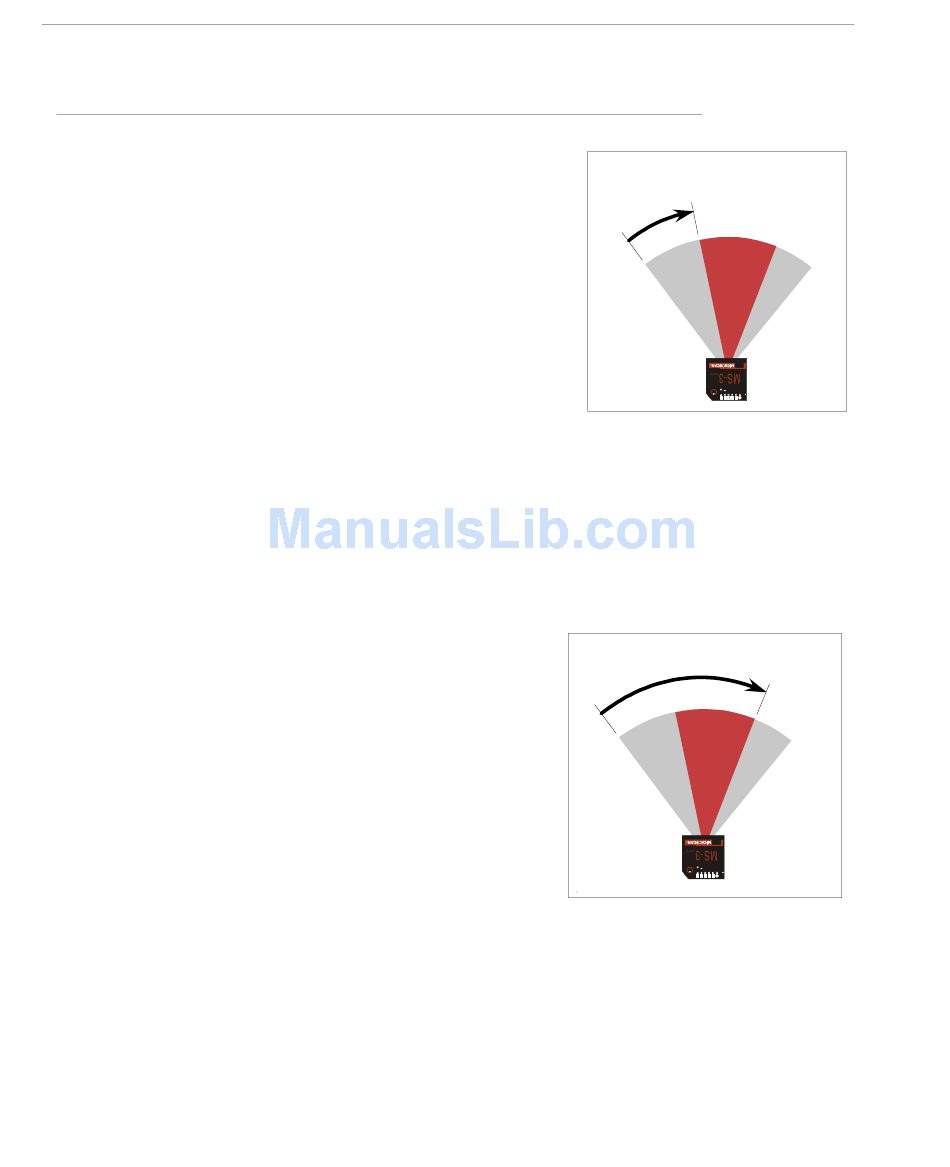

Figure 4-4 Laser On Position

status,laser on position,laser
Fi 4 5 L Off P
position,laser
Laser Off
Position
iti
