Appendix C — Connectivity
Standalone Setup with IC-331 and IB-131
In this configuration the IC-331
transforms incoming 10 to 28
VDC to 5VDC for the MS-3 scan-
ner's use.
• (1) MS-3 laser scanner.
• (2) IC-331 interface con-
verter, P/N 98-000050-01.
• (3) IB-131 Interface box,
P/N 99-400005-02.
• (4) Host computer.
• (5) Null modem configuration
cable, P/N 61-300026-01,
DB-25 plug to DB-9 socket,
6 ft.
• (6) Power supply P/N
97-100004-05 (USA plug) or
P/N 97-100004-06 (Euro
plug).
• (7) Optional object detector
P/N 99-440001-10 is shown
here.
IC-331 Interface Converter
5
15
3.08"
(78.2 mm)
1
4
1
6
(plug)
5
10
(plug)
15
3
5
6

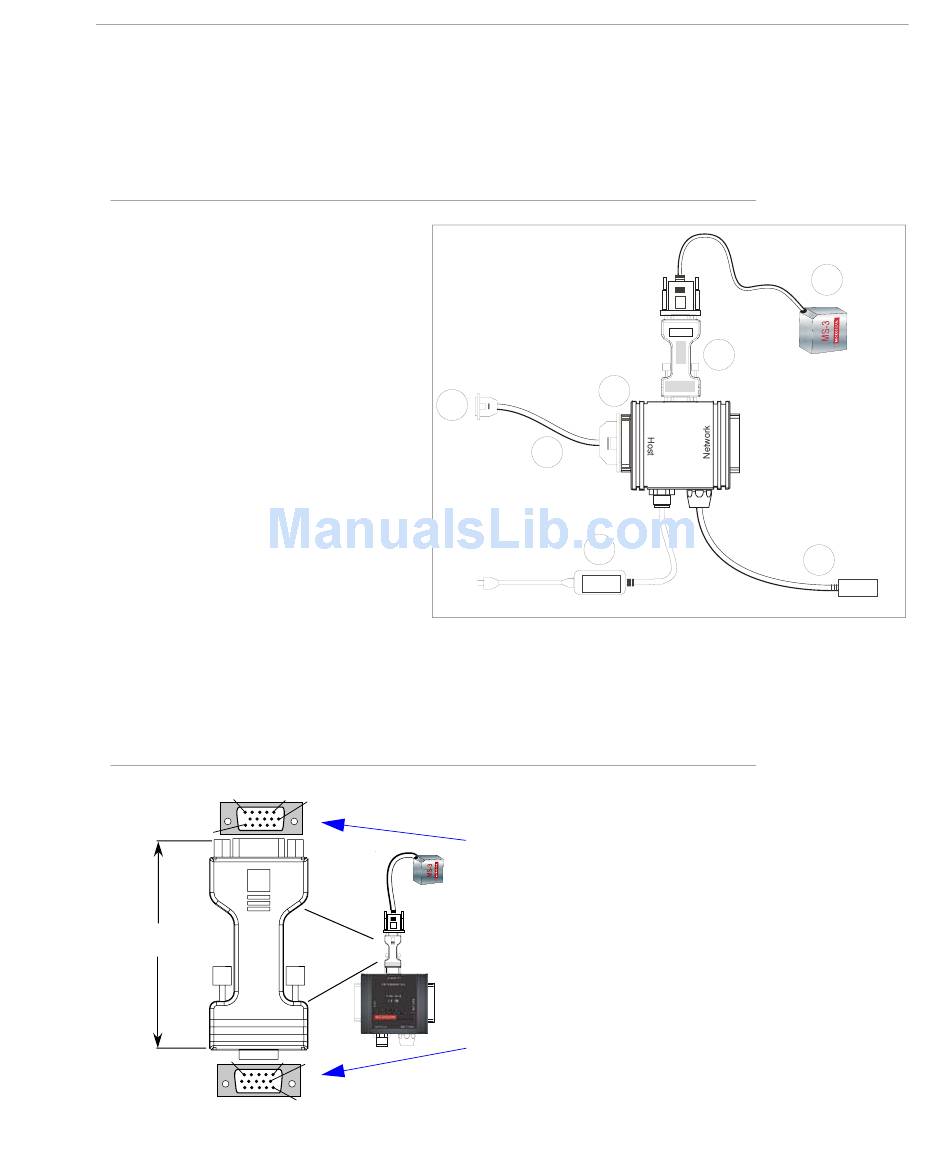

Figure A-2 MS-3/IB-131 Typical Setup

"SCANNER" connector to MS-3 (with fixed nuts).
See Figure A-3, IC-331 SCANNER Pinouts
"EXTERNAL" Connector to IB-131 (with thumbscrews).
See Figure A-4, IC-331 EXTERNAL Pinouts (to IB-
131)
