Delete Master Symbol
Store Next Symbol as Master
Symbol
Counts, Power-on/Resets
Hours Since Last Reset
Laser High/Low
Service Message
Serial Communication Programs
You can send serial commands from your
terminal window in ESP. You can also use a
terminal program such as Hyperterminal to
send serial commands from your PC to the
scanner.
From your PC host computer, you can ini-
tiate communications with the scanner by
with a terminal communications program
such as Hyperterminal™ provided in the
Windows™ operating system.
In order to communicate with the scanner,
you will need to use the following commu-
nications settings:
Baud = 9600
Parity = Even
Stop Bits = One
Data Bits = Seven
Flow Control = None
<K231, master symbol number
<G master symbol number>
Diagnostics
<K406, power-on,resets,power-on saves,custom default
saves>
<K407?> (read only— returns: hours,minutes)
<K411, laser high status,laser high message,laser low
status,laser low message>
status,service message,threshold,resolu-
<K409,
tion>
Chapter Appendices
,
>

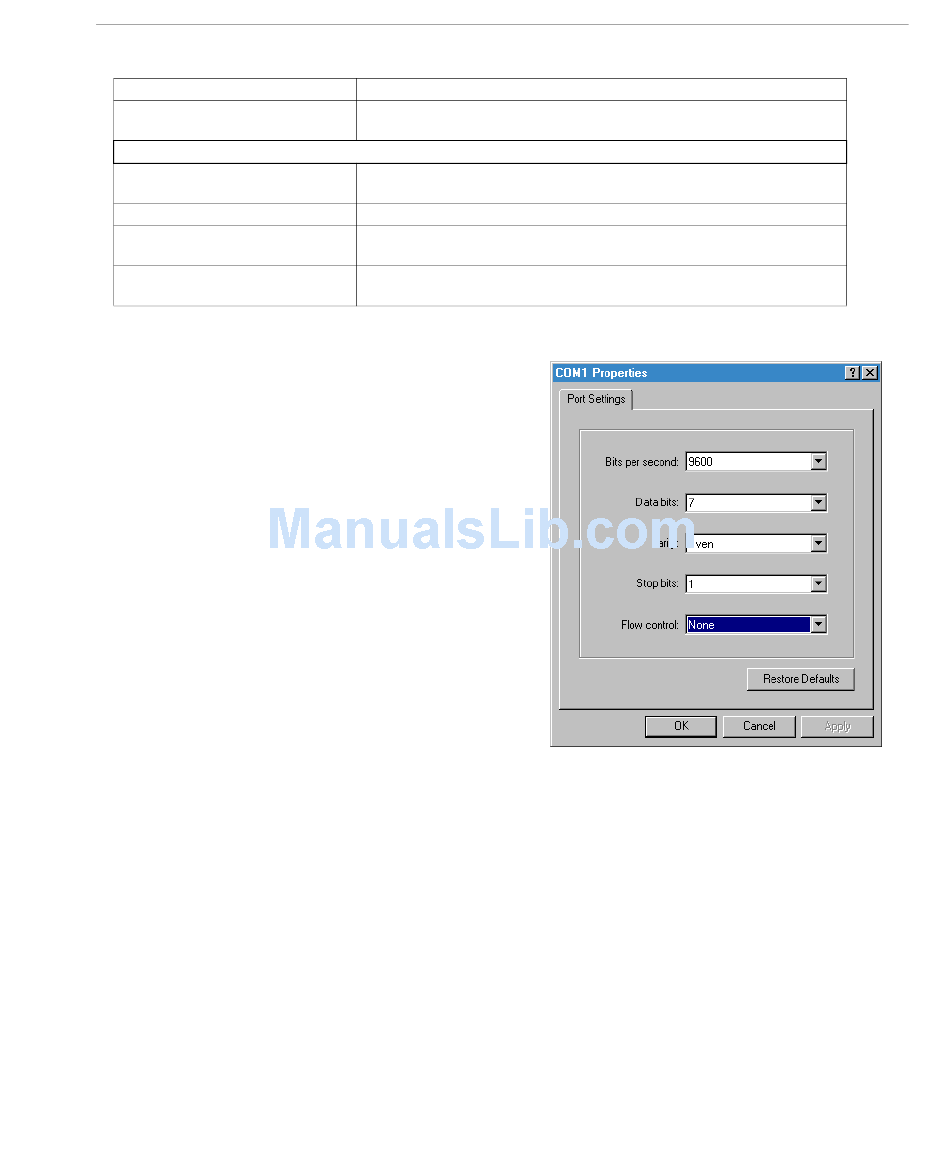

Figure A-8 Hyperterminal Dialog
