Figure A-6 Ib-131 Multidrop Setup - Microscan MS-3 User Manual

Multidrop Setup
This setup allows the user to link multiple scanners together to a Microscan MS-5000 con-
centrator and a host (not shown here). All scanners work independently of each other.
Host
• • • • • • • • • • • • •
• • • • • • • • • • • •
Power
LAN
8
9
7
4
• (1) MS-3 laser scanner
• (2) IC-331 interface converter, P/N 98-000050-01
• (3) IB-131 Interface box, P/N 99-400005-02
• (4) Power supply P/N 97-100004-05 (USA plug) or P/N 97-100004-06 (Euro plug)
• (5) Object detector P/N 99-440001-10
• (6) Multidrop trunk cable: 61-100030-02, 10 ft. (connects multiple IB-131s)
• (7) IB-131 to concentrator cable, P/N 61-300004-10, 10 ft.
• (8) Microscan MS-5000 concentrator
• (9) Null modem cable 61-300026-01
Monitor
• • • • •
• • • •
1
2
Scanner
6
3
4
5

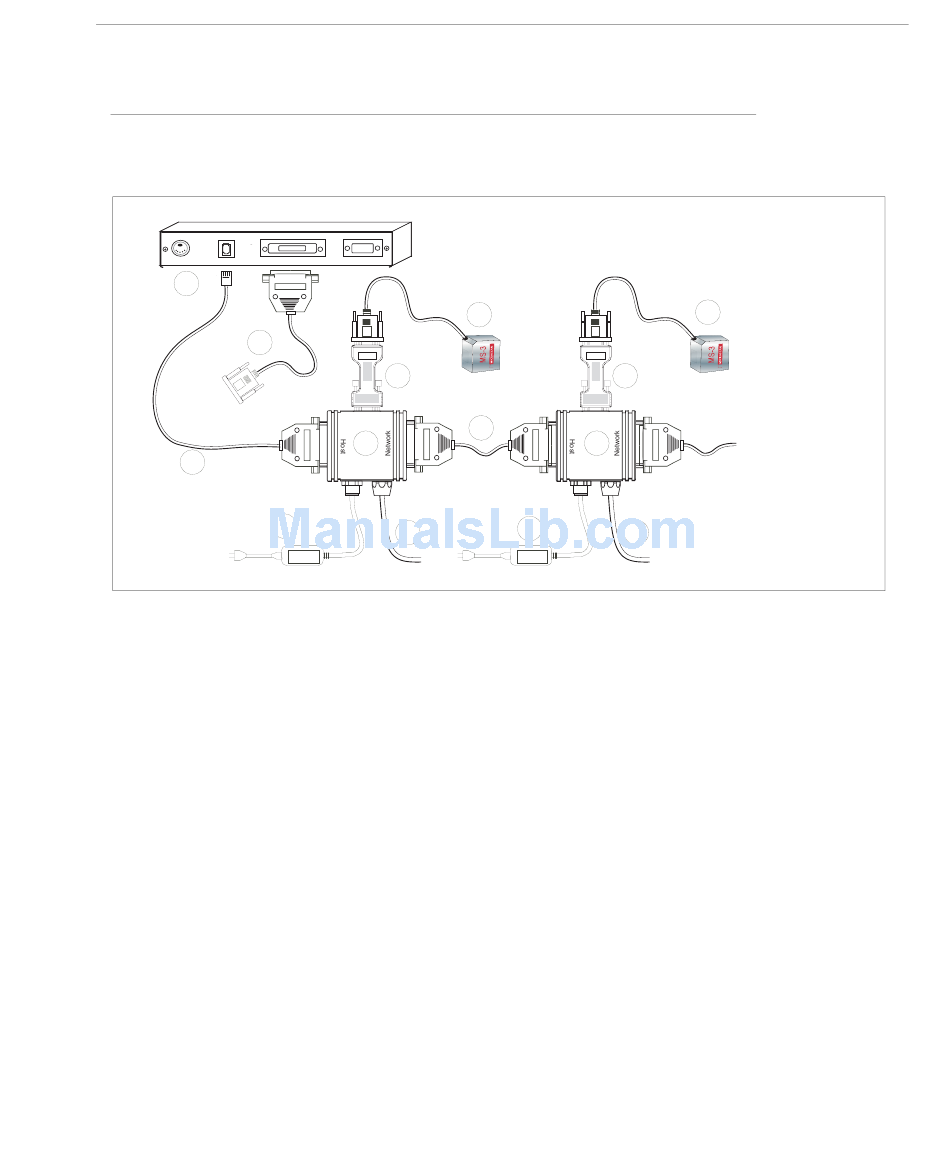

Figure A-6 IB-131 Multidrop Setup

Chapter Appendices
1
2
Scanner
3
5
MS-3 Laser Scanner User's Manual
To additional
scanners or
terminating
resistor
