Connect Menu

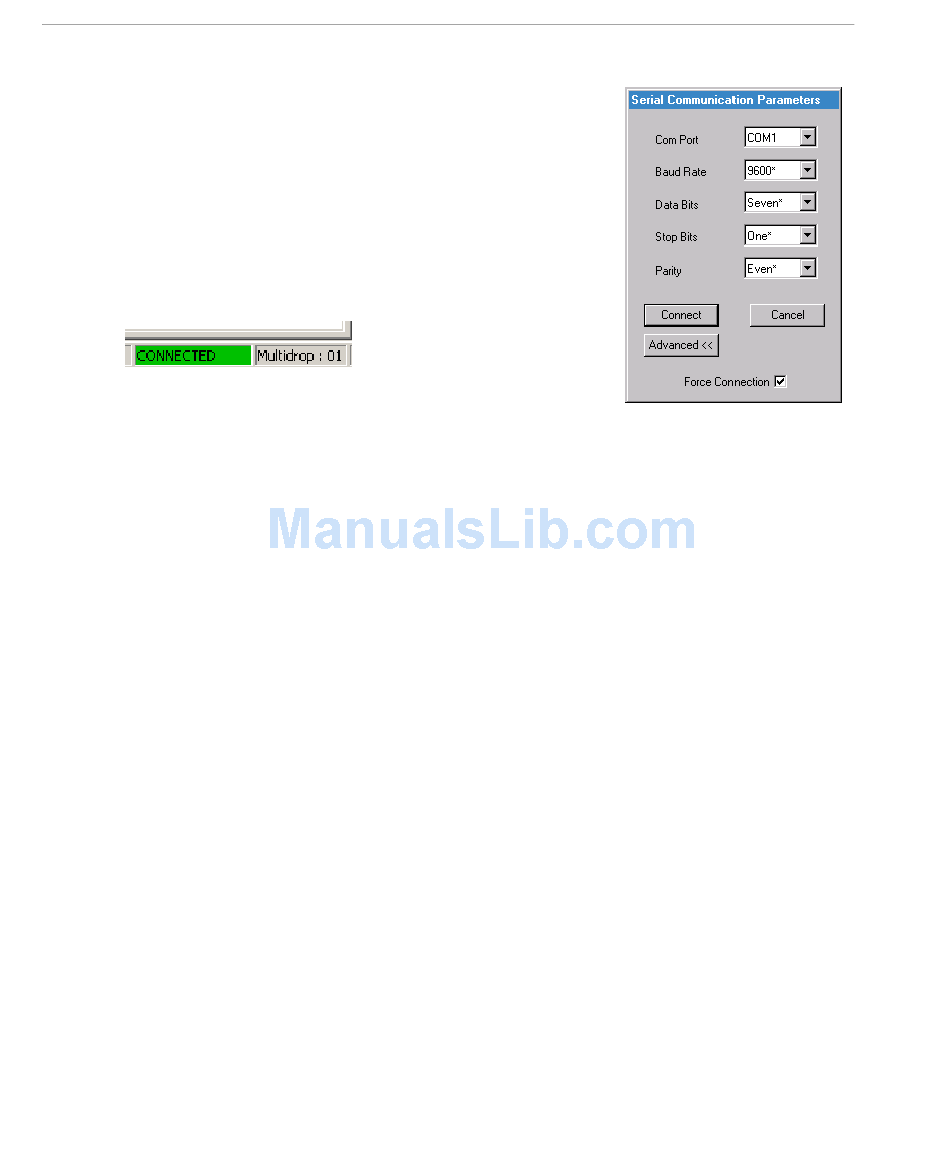

4. Select the concentrator's host port communications
settings.
When you click Connect, you will be connecting to
your concentrator, which can then relay commands to
the scanner whose address was set in the Multidrop
Settings dialog.
5. Click Connect.
6. You should see the CONNECTED message in green
at the bottom of the window along with the scanner's
Multidrop address.
7. Do Retrieve Scanner Settings
configuration
Serial Communication Parameters dialog and make the corrections.
8. Follow the same procedure for connecting other scanners to your
multidrop network.
Note: For more information, see your scanner user's manual or Microscan's MS-5000
Multidrop Concentrator User's Manual, 83-005000.
MS-3 Laser Reader User's Manual
2-10
to upload scanner's
(Step 4). If upload fails, return to the
