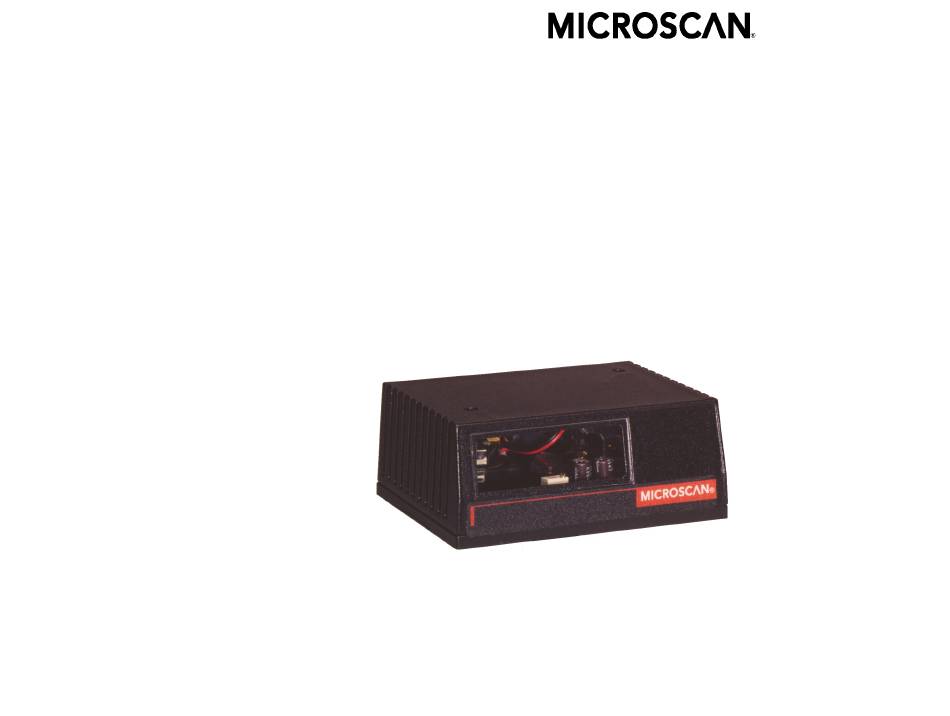

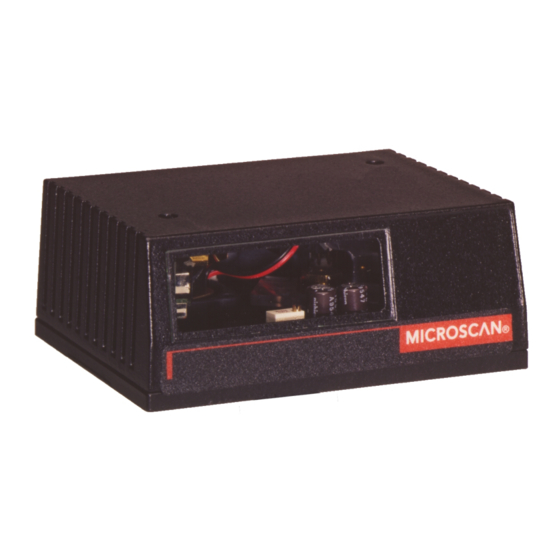

  • Page 1 MS-810 Industrial Scanner User's Manual P/N 83-000810 Rev B...
  • Page 2 A copy of a purchase order with the amount of the charge must be received by Microscan, either by mail or by FAX, before any equipment is returned. Warrantable products are repaired or replaced at no charge and returned freight prepaid.

  • Page 3: Table Of Contents

    Table of Contents List of Illustrations ..................v List of Tables .................... vi About the MS-810 Scanner ..............vii About This Manual ................... vii Keystroke Entries ..................vii Approvals ....................viii Warning and Caution Summary ..............viii Zulassungen ..................... ix Sicherheitshinweis und Vorsichtsmaßnahmen ......... ix Safety Labels ....................

  • Page 4: List Of Illustrations

    Appendix E — Transferring/Restoring Files ......... A-11 Appendix F — IB-130 Interface Module ..........A-13 Appendix G — Number of Scans ............A-18 Appendix H — Special 5 VDC MS-810 ..........A-21 Appendix I — Using the IB-105 ............A-22 Appendix J — Troubleshooting ............A-28 Appendix K —...
  • Page 5 Figure 2-9 Scanner Output Menu Structure ......... 2-33 Figure 2-10 Setup Menu Structure ............2-39 Figure A-1 MS-810 Dimensions .............A-2 Figure A-2 15-pin High-density D-subminiature plug ......A-4 Figure A-3 Grounding Diagram, Scanner-Host ........A-9 Figure A-4 Ladder Orientation ..............A-18 Figure A-5 Picket Fence Orientation ............A-18 Figure A-7 Label Dimensions ...............A-19...

  • Page 6: About The Ms-810 Scanner

    Chapter 4 lists serial commands that can be used for operations. For specifications, see appendix A. The appendices also include reference tables, as well as other useful information relating to bar coding and the MS-810 scanner. Keystroke Entries Keystrokes to be entered from your terminal are highlighted, as in <P>.

  • Page 7: Approvals

    10 V DC and 28 V DC. The SELV power supply must be rated at least 6,5 W at the output to avoid any hazard. European models must use a similarly rated Class I or Class II power supply that is certified to comply with standard for safety EN 60950. MS-810 Scanner User’s Manual...
  • Page 8 WARNING There are no user serviceable parts in the MS-810 scanner. Opening the scan head voids the Microscan Systems warranty and could expose the user to laser diode power of up to 7 mW.

  • Page 9: Zulassungen

    Die SELV Spannungsversorgung muß mindestens 6,5 ··· W am Ausgang liefern, um Gefahren zu vermeiden. Modelle für den europäischen Markt müssen eine entsprechende Stromversorgung der Klasse I oder II verwenden, die nach der Sicherheitsrichtlinie EN 60950 zertifi- ziert ist. MS-810 Scanner User’s Manual...
  • Page 10 Optimierungen am Bar Code Scanner vornimmt, muß der englischen Sprache mächtig sein und sollte fachkundigen Rat beim Hersteller oder Importeur einholen. Sollten Sie Fragen haben, kontaktieren Sie bitte Microscan Systems Inc. USA oder den entsprechenden europäischen Vertreter in Ihrem Land.
  • Page 11 This chapter provides step-by-step instructions for setting up and installing the MS-810 scanner. Note: Bar code labels should meet minimum ANSI (American National Standards Institute) standards as specified in ANSI Bar Code Print Quality Guideline, X3.182- 1990. MS-810 Industrial Scanner User’s Manual...

  • Page 12: Step 1 Plan Scanning System

    Detector cable lengths. (For wiring infor- mation, see “Attach Cabling” on page 1-3.) Figure 1-1 shows a typical scanning sys- MS-810 Host tem setup. Scanner To power supply Figure 1-1 Typical Setup MS-810 Industrial Scanner User’s Manual...

  • Page 13: Step 2 Attach Cabling

    Step 2 Attach Cabling The MS-810 has a 15-pin connector. RS-232 cabling from the 15-pin connector to the host can be up to 47 feet provided it does not include DC input. Scanner Host Transmit Transmit Receive Receive Signal Signal...

  • Page 14: Step 3 Consider Read Range And Scan Width

    Read range is the distance from the scanner in which a passing label can be read. For the MS-810, read range varies from 2 to 30 inches depending on label density and optical version of scanner. Scan width is that distance across the scan arc in which a label can be read. For a moving label, the closer to the scanner, the shorter the time it will be within the scan width, and hence the fewer scans it will receive.

  • Page 15: Step 4 Position Scanner

    Pitch label slightly to avoid specular reflection, the return of direct, non-dif- fused light. For the MS-810 raster scanner, specular reflection is avoided by pitching labels at least 5° plus or minus from a line perpendicular to the mir- ror.

  • Page 16: Step 5 Mount Scanner

    Chapter 1 Step 5 Mount Scanner The MS-810 scanner can be top or bottom mounted depending on your model type. Use the measurements provided in figure 1-6 to locate centers of mounting holes and drill as specified: Top mount – drill two 0.16 inch (4.06 mm) diameter holes.

  • Page 17: Step 6 Establish Communications

    Allow some time for the auto baud routine to test most of the combinations. You can watch this at the bottom of the dialog box. Once it has found it, it will change the host’s settings to match the scanner’s. The default settings for the MS-810 scanner are 9600 baud,...

  • Page 18: Step 7 Configure Scanner

    Note: You can check the scanner’s settings at any time by clicking SEND/RECV RECEIVE FROM SCANNER to receive the scanner’s current settings into ESP. As data is being received a blue bar will fill across the bottom of the dialog box. MS-810 Industrial Scanner User’s Manual...

  • Page 19: Step 8 Test Decode Rate With Static Label

    (see “Number of Scans” on page A-18). Note: Variations between labels are common. For this reason, the greater number of sample labels you test, the more likely you are to achieve optimum decode rates. MS-810 Industrial Scanner User’s Manual...

  • Page 20: Step 9 Test Decode Rate With Moving Label

    This means that all variables, label speed, read range, etc. are significant. To calculate in advance the number of scans that the label will receive, use the for- mulas described in Appendix G, “Number of Scans,” on page A-18. 1-10 MS-810 Industrial Scanner User’s Manual...

  • Page 21: Step 10 Increase The Number Of Scans

    Where possible, you can increase the number of scans a label receives by: • Increasing label height • Decreasing label length • Increasing scan rate (spinning mirror speed) • Slowing label speed Appendix G, “Number of Scans,” on page A-18. 1-11 MS-810 Industrial Scanner User’s Manual...
  • Page 22 Chapter 1 1-12 MS-810 Industrial Scanner User’s Manual...
  • Page 23 Output Menu ..................2-32 Setup Menu..................2-38 With Microscan’s ESP™ (Easy Setup Program) configuration changes can be made in the ESP menus and sent and saved to your scanner. You can also send serial com- mands to the scanner via the ESP’s Terminal window.

  • Page 24: About The Menu Configuration Program

    Alt key plus underlined letters and the tab key to move to the desired field, use arrow keys or the space bar to scroll through selections, and the Enter key to accept changes. MS-810 Industrial Scanner User’s Manual...
  • Page 25 To save those settings to the scanner, click Apply. To restore defaults to the scanner (for ALL menus), click the DEFAULT button on the Interface tab of the Utilities menu, or send an <Ad> serial command. You can also default by hardware command. MS-810 Industrial Scanner User’s Manual...
  • Page 26 Caution: Defaulting the scanner will reset all standard configuration parameters except Scanner Type, Scans per Second, and Gain Adjustment to their original default values. Note: Power must be available to the scanner during the default procedure. MS-810 Industrial Scanner User’s Manual...

  • Page 27: Communications Menu

    Note: Changes in Communications parameters or assigning an address to the scanner can cause loss of communications with the configuration terminal when you exit the menu pro- gram (whether or not changes are saved for power-on). MS-810 Industrial Scanner User’s Manual...
  • Page 28 Options: Disabled, Transparent, Half Duplex, Full Duplex, and Daisy Chain Note: Aux Port is only available through Microscan’s IB-105. Allows you to set communications parameters between the scanner and an auxiliary port. An auxiliary port can be used to configure the menus, send data to the host, and display data transmissions originating from the host or scanner.
  • Page 29 Port <B ____> (e.g., to send the word “LUNCH” to the aux port, it must be sent in the format <BLUNCH>). • In unpolled mode, all host data is echoed to the aux port. MS-810 MS-810 Industrial Scanner User’s Manual...
  • Page 30 <B____> (i.e.: to send the word Port “LUNCH” to the terminal, it must be sent in the format <BLUNCH>). • In unpolled mode, all host data is MS-810 echoed to the aux port. MS-810 Industrial Scanner User’s Manual...
  • Page 31 <B____> (for example, to send the Port word “LUNCH” to the terminal, it must be sent in the for- mat <BLUNCH>). • In unpolled mode, all host data is echoed to the aux port. MS-810 MS-810 Industrial Scanner User’s Manual...
  • Page 32 7. If Multilabel is enabled, Multilabel Separator characters and Number of Labels must match in all scanners in the daisy chain. 8. Symbology ID enable/disable must be the same in all scanners. 9. All but the primary scanner must have their diagnostic warning messages disabled. 2-10 MS-810 Industrial Scanner User’s Manual...
  • Page 33 Each scanner enabled for Daisy Chain can be assigned a one or two character Daisy Chain ID that appears in front of the data decoded by that scanner. Enable/disable and length must be the same in all scanners. 2-11 MS-810 Industrial Scanner User’s Manual...

  • Page 34: Protocol Menu

    Point-to-Point with RTS/CTS (Request-to-Send/Clear-to-Send) Used only with RS-232. This is a simple handshaking protocol that allows a device to initiate data transfers to the host with an RTS (request-to-send) transmission. The 2-12 MS-810 Industrial Scanner User’s Manual...
  • Page 35 (FS) and a 1D hex select address (GS) are substituted for the 1. Multidrop Note: Scanners intended to link up to a Microscan MS-5000 multidrop concentrator must be configured in standard Multidrop protocol. Similar to Polling Mode D except that a unique poll address and select address are required for each multidrop device, and only one host port connection is needed for up to 50 devices.
  • Page 36 Options: Disabled, Enabled Messages sent to the host from the MS-810 will always include the scanner’s defined protocol. The status of From Host determines if messages sent to the MS-810 from the host must also include the defined protocol. If From Host is disabled, the defined protocol is not included.
  • Page 37 A high setting will significantly slow down commu- nications. For example, a 200 setting will result in a 1/5 second delay between each character that is transmitted. 2-15 MS-810 Industrial Scanner User’s Manual...

  • Page 38: Operation Menu

    Continuous Read 1 Output mode. Trigger input options are disabled and the scanner is always in the read cycle. Bar code data is decoded, and label information is transmitted repeatedly, as long as the 2-16 MS-810 Industrial Scanner User’s Manual...

  • Page 39: Figure 2-5 External Level Trigger Signals

    Rising edge is the trigger signal associated with the appearance of an object. Falling edge is the trigger signal associated with the subsequent disappearance of the object. 2-17 MS-810 Industrial Scanner User’s Manual...

  • Page 40: Figure 2-6 External Edge Trigger Signals

    Mode option is set in an External or Serial mode of operation, the trigger event initiates the read cycle. Note: When operating in Continuous Read or Continuous Read 1 Output, the scanner is always in the read cycle. 2-18 MS-810 Industrial Scanner User’s Manual...
  • Page 41 Note: Timeout or Timeout & New Trigger under End of Read Cycle (page 2-19) must be enabled for Timeout (in 10 ms incs) to take effect. Allows you to define the duration of the timeout period. 2-19 MS-810 Industrial Scanner User’s Manual...
  • Page 42 Allows you to determine whether a positive or negative transition will initiate the read cycle. Note: If using the Microscan object detector (P/N 99-440001-03), use positive trigger polarity. Trigger Filter Level Default: (approximately 10 ms).
  • Page 43 5. All noread messages are posted at the end of the data string. 6. If more than one label is within the scan beam at the same time, label data may not be displayed in the order of appearance. 2-21 MS-810 Industrial Scanner User’s Manual...

  • Page 44: Figure 2-7 Match Code Type

    3. If you wish to send a pulse on a Good Read, Match Code Type must be disabled (see “Output On” on page 2-34). Disabled Disabled has no effect on operations. Enabled Instructs the scanner to compare labels or portions of labels with the master label. 2-22 MS-810 Industrial Scanner User’s Manual...
  • Page 45 Match Start Position to 3, the first 2 characters read in the label will be ignored and only the 3rd and subsequent characters to the right will be com- pared, up to the number of characters specified by Match Length. 2-23 MS-810 Industrial Scanner User’s Manual...
  • Page 46 IB-105) will save the next label read as the master label. 3. Sending serial command <G> allows the next label read to be the master label. 4. Sending a serial command in the format <)XXXX)> downloads data as the master label. 2-24 MS-810 Industrial Scanner User’s Manual...

  • Page 47: Code Type Menu

    Code 39 is self-checking and does not normally require a check digit. However, for additional data integrity, a Modulus 43 check digit can be added to the bar code mes- sage. With Check Digit and an External or Serial trigger option enabled (see “Trig- 2-25 MS-810 Industrial Scanner User’s Manual...
  • Page 48 Default: Disabled Options: Disabled, Enabled Start & Stop Match Default: Enabled Options: Enabled, Disabled Requires the Codabar start and stop characters (a, b, c, or d) to match before a valid read can occur. 2-26 MS-810 Industrial Scanner User’s Manual...
  • Page 49 Allows you to select the type of checksum system Codabar will use. Check Digit Output Default: Disabled Options: Disabled, Enabled When enabled, the check digit character is sent along with the label data. When dis- abled, label data is sent without the check digit. 2-27 MS-810 Industrial Scanner User’s Manual...
  • Page 50 If using a second label, you may also specify a zero or any even code length from 2 to 30. If not using a second label, set Code Length #2 to 0 to ensure data integrity. 2-28 MS-810 Industrial Scanner User’s Manual...
  • Page 51 For example, if Supplementals is set to Required, Separator is enabled, and an aster- isk is defined as the Separator Character, then the data will be displayed as: LABEL * SUPPLEMENTAL. If set to disabled, the following will be displayed: LABEL SUPPLEMENTAL. 2-29 MS-810 Industrial Scanner User’s Manual...
  • Page 52 “Quiet zone” is the space at the leading and trailing ends of a label. Each quiet zone can be as narrow as only five times the width of the narrow bar element when Narrow Margins is enabled. 2-30 MS-810 Industrial Scanner User’s Manual...

  • Page 53: Table 2-1 Symbology Identifier Option Values

    Example 2: For Codabar, if check digit and check digit output are both enabled, a 2 will be output; but if check digit output is disabled, a 6 (the sum of 2 and 4) will be output. Autodiscrimination Default: Disabled Options: Disabled, Enabled When enabled, all symbology types are enabled. 2-31 MS-810 Industrial Scanner User’s Manual...
  • Page 54 Chapter 2 Background Color Default: White Options: White, Black Allows the scanner to be set to read symbols on white (light) or black (dark) backgrounds. 2-32 MS-810 Industrial Scanner User’s Manual...

  • Page 55: Output Menu

    Note: Relay-1 output also causes closure of a relay in the IB-105 box, accessible through pin 15 of the IB-105 host connector only in the 5 V version (see table A-9 on page A-23). Relay-1 and relay-2 can allow simultaneous output under individually programmed conditions. 2-33 MS-810 Industrial Scanner User’s Manual...
  • Page 56 Allows you to set the duration of the good match/noread output signals at the relay output pin that is enabled. Note: After completing changes to Output On, Polarity, and Pulse Width, press M to advance to Bar Code Output and continue scrolling through the Scanner Output options. 2-34 MS-810 Industrial Scanner User’s Manual...
  • Page 57 As Soon As Possible, End of Read Cycle Allows you to choose when bar code data is sent to the host. As Soon As Possible Causes bar code data (good reads) to be transmitted immediately upon a good decode. 2-35 MS-810 Industrial Scanner User’s Manual...
  • Page 58 When enabled, the laser is ON only during the read cycle. When disabled, the laser operates continuously. Note: Laser On/Off does not relate to the Enable Laser Scanning (<H>) or Disable Laser Scanning (<I>) operational commands on page 4-6. 2-36 MS-810 Industrial Scanner User’s Manual...
  • Page 59 ASCII control character output includes a control character as shown in the “Ctrl” col- umn of Table A-4, “ASCII Table with Control Characters,” on page A-10. When set to Hex, the output is the actual character. 2-37 MS-810 Industrial Scanner User’s Manual...
  • Page 60 1 to 63 Allows you to determine the first character from the beginning of a label to transmit. Partial Length Default: Options: 1 to 63 Allows you to determine the number of characters to be transmitted. 2-38 MS-810 Industrial Scanner User’s Manual...

  • Page 61: Setup Menu

    Adjustment are not saved for power-on (but are initialized) when you press Y. To save new settings to NOVRAM for these parameters, enter the <Zp> command. See “Save Scanner Type, SPS, and Gain for Power-on” on “Save Scanner Type, SPS, and Gain for Power-on,” on page 4-12. 2-39 MS-810 Industrial Scanner User’s Manual...
  • Page 62 Standard, High Density The Scanner Type “default” from the factory indicates the density type of the scanner (with the unit’s optics adjusted accordingly). Do not change this setting unless instructed to do so by a Microscan representative. Important Entering the <Zp>...
  • Page 63 Serial command strings are entered from an ASCII terminal. As with menu configura- tion commands, serial configuration commands relate to the initial scanner setup. To quickly reference the serial configuration commands, see table 3-1 on page 3-2. MS-810 Industrial Scanner User’s Manual...

  • Page 64: Table 3-1 Summary Of Serial Configuration Commands

    Partial Output <KYstatus,start position,length> Scanner Output Status Request <KX?> Scanner Type <KPdensity> Scanner Scans per Second <KEspeed> Setup Auto Gain Control <KDgain adjustment,AGC sampling> Scanner Setup Status Request <KU?> Return All K Commands <K?> MS-810 Industrial Scanner User’s Manual...

  • Page 65: About Serial Configuration

    • All fields following the modified field can be left out. For example, in the RS-232 port, to change Baud Rate to 4800, send <Ka3>. (See examples on following pages.) 1. See “Initializing serial configuration commands” on page 3-4 for definitions and examples. MS-810 Industrial Scanner User’s Manual...
  • Page 66 CAUTION: Defaulting the scanner will reset all standard configuration parameters except Scanner Type, Scans per Second, and Gain Adjustment to their original default values. Note: Power must be available to the scanner during the default procedure. MS-810 Industrial Scanner User’s Manual...

  • Page 67: Communications Port Commands

    2 = Odd Default is Example: To change Aux Port Baud Rate to 2400, send <Ky2>. Communications Status Request Format: <KT?> Returns status of each command in the group. 1. For use with Microscan’s IB-105. MS-810 Industrial Scanner User’s Manual...

  • Page 68: Protocol Commands

    Multidrop <Kf7...>. Format: <Kfprotocol,RES,address,REQ,EOT,STX,ETX,ACK,NAK,from host> protocol: 6 = User Defined; From Host: 0 = disabled 1 = enabled 1. Polling Mode D, Multidrop, User Defined, and User Defined Multidrop are for use with Micros- can’s IB-105. MS-810 Industrial Scanner User’s Manual...
  • Page 69 A-10 for more information.) Explanation of the From Host option Suppose STX, ETX and EOT are defined in the MS-810, the trigger counter is currently T/ 00000, and you want to send the Trigger Counter Request command to the scanner.

  • Page 70: Table 3-2 Protocol Commands

    Enter one or two postamble characters except a null (00H). Default characters are ^M^J. 1 = Enabled Example: To disable Postamble, send <Ke0>. Format: <Kcstatus> status: 0 = Disabled 1 = Enabled Example: To enable LRC, send <Kc1>. MS-810 Industrial Scanner User’s Manual...
  • Page 71 Intercharacter Delay Format: <KBtime interval> time interval (between characters in milliseconds): Default is 0. Any number from 0 to 255. Example: To change Inter-character Delay to 30 ms, send <KB30>. 1. For use with Microscan’s IB-105. MS-810 Industrial Scanner User’s Manual...

  • Page 72: Operations Commands

    C cannot be used as a serial trigger character because it is the operational command for Enter Decode Rate Test. However, a lowercase c could be used without initiating the decode rate test. 3-10 MS-810 Industrial Scanner User’s Manual...

  • Page 73: Operations Commands

    If 001, 002, mismatch, more than 1, then the sequence resumes and searches then search for 004. If mis- indefinitely. match occurs again, then When enabled, the scanner sequences on every mis- search for 005, etc. match. 3-11 MS-810 Industrial Scanner User’s Manual...
  • Page 74 Default is Any number from 1 to 6 Any valid ASCII character Example: To change Number of Labels to 3, send <KL3>. Operations Status Request Format: <KV?> Returns status of each command in the group. 3-12 MS-810 Industrial Scanner User’s Manual...

  • Page 75: Code Types Commands

    3 = Both 1 = Mod 16 1 = Enabled Example: To set Fixed Code Length to 9, send <Kq1,,,,1,9> or <Kq1,1,1,0,1,9>. I 2 of 5 Format: <Krstatus,check digit status,check digit output status,code length #1,code 3-13 MS-810 Industrial Scanner User’s Manual...
  • Page 76 0 = Disabled Default is 10. 1 = Enabled 1 = Enabled Any number from 1 to 64. Example: To enable Code 128, enable Fixed Code Length, and set Code Length to 9, send <Kt1,1,9>. 3-14 MS-810 Industrial Scanner User’s Manual...
  • Page 77 Note For maximum scanning speed, enable only those symbologies used in the applica- tion. Code Types Status Request Format: <KW?> Example: Returns status of each command in the group 3-15 MS-810 Industrial Scanner User’s Manual...
  • Page 78 0 = As Soon As Possible 1 = Match 1 = End of Read Cycle 2 = Mismatch 3 = Good Read Example: To set When to Output to End of Read Cycle, send <Kl3,1>. 3-16 MS-810 Industrial Scanner User’s Manual...
  • Page 79 Default is 1 Default is 63 1 = Enabled 1 to 63 1 to 63 Example: To enable Partial Output, set start position to 5, and set length to 6 charac- ters, send <KY1,5,6>. 3-17 MS-810 Industrial Scanner User’s Manual...
  • Page 80 1 = Hex Example: To enable Serial Command Echo Status and Beep Status, and Hex output, send <KS1,1,1>. Scanner Output Status Request Format: <KX?> Returns status of each command in the Scanner Output group. 3-18 MS-810 Industrial Scanner User’s Manual...
  • Page 81 2 = Continuous Example: To set the gain threshold to 40 and the AGC status to Leading Edge, send <KD40,1,0>. Scanner Setup Status Request Format: <KU?> Returns status of each command in the group. 3-19 MS-810 Industrial Scanner User’s Manual...
  • Page 82 Chapter 3 3-20 MS-810 Industrial Scanner User’s Manual...
  • Page 83 Checksum ..................4-13 Code Type Commands..............4-15 The Utilities menu allows you to send operational commands to the MS-810 to carry out routine operations “on the fly” as distinguished from serial configuration commands that are generally used during your initial setup.

  • Page 84: Code Types Commands

    Display Current NOVRAM Checksum and Display NOVRAM Check- sum at Power Up,) < > Autodiscriminate All Codes < > Code Types Enable Code 39 Only < > (not in ESP) Enable Codabar Only < > Enable I 2 of 5 Only MS-810 Industrial Scanner User’s Manual...

  • Page 85: Read Rate

    (if any) for multiple labels. Associated serial command: <Cm> Multi-label Decode Rate Test Clicking Multi-label Decode/Sec Start instructs the scanner to output the decode rate and label data (if any) for multiple labels. Associated serial command: <Cs> MS-810 Industrial Scanner User’s Manual...
  • Page 86 * Example shows output when Postamble is enabled and defined as a carriage return and a line feed. Associated serial command: <Ce> after <C>, <Cs>, <C>, <Cs> : The <Ce> command has no immediate effect if not preceded by <C>, <Cs>, Note <C>, or <Cs>. MS-810 Industrial Scanner User’s Manual...

  • Page 87: Trigger

    : Your scanner must be in a point-to-point protocol for Trigger Setup to work. Note : You can define the trigger character in the Operations menu. Note Associated serial command: <Ki serial trigger character> MS-810 Industrial Scanner User’s Manual...

  • Page 88: Scanner

    This command is useful for long idle periods. Associated serial command: <KF> Output-1 Clicking Output #1 activates the output between pin 7 (regardless of Master Label or Output-1 Driver status). Associated serial command: <L1> MS-810 Industrial Scanner User’s Manual...

  • Page 89: Counters

    Match Counter (or Good Read Counter) Clicking Request displays the total number of good reads matching the master label or, if Master Label is not enabled, the number of good reads since the last reset. This MS-810 Industrial Scanner User’s Manual...
  • Page 90 Clicking Request displays the message the number of labels successfully read that do not match the master label since the last reset. Associated serial command: <X> Mismatch Counter Reset Clicking Reset sets the Mismatch Counter to zero. Associated serial command: <Y> MS-810 Industrial Scanner User’s Manual...

  • Page 91: Master Label

    Downloads master label information into RAM from the host or a terminal. A stored master label will not affect standard operation unless Match Code Type is enabled. The Xs denote alphanumeric data, from 1 to 64 characters. Associated serial commands: <)XXXX)> MS-810 Industrial Scanner User’s Manual...
  • Page 92 Delete Master Label Information Deletes master label information that has previously been loaded by either <)XXXX)> Download Master Label Information Command or <G> Store Next Label as Master Label command. Associated serial commands: <))> 4-10 MS-810 Industrial Scanner User’s Manual...

  • Page 93: Reset

    Does not effect Scanner Type, Scans per Second, or Gain Adjustment. Associated serial command: <Ad> NOVRAM Reset/Read NOVRAM Reads the NOVRAM settings then initializes them < > to RAM. Initialize Associated serial command: <An> NOVRAM 4-11 MS-810 Industrial Scanner User’s Manual...
  • Page 94 2. Scanner Type should not be changed from its factory setting. 4-12 MS-810 Industrial Scanner User’s Manual...

  • Page 95: Checksum

    2. Refer to table 4-3 to find the Hex value’s binary conversion. The binary bit digits for “4” equal 0100; the binary bit digits for “D” equal 1101. Hence, the binary conversion of 4D is 01001101. 4-13 MS-810 Industrial Scanner User’s Manual...

  • Page 96: Table 4-4 Finding Scanner Status From Binary Bit Digits

    Sends the following in this order: status byte, part number, ROM checksum for both possible lengths of ROM (1 megabyte and 512 bytes), current NOVRAM checksum, and NOVRAM checksum at power up. Associated serial command: <?1> 4-14 MS-810 Industrial Scanner User’s Manual...

  • Page 97: Code Type Commands

    Associated serial command: <Q> Codabar Only Allows only Codabar labels to be read. Associated serial command: <R> I 2 of 5 Only Allows only Interleaved 2 of 5 labels to be read. Associated serial command: <S> 4-15 MS-810 Industrial Scanner User’s Manual...
  • Page 98 Chapter 4 4-16 MS-810 Industrial Scanner User’s Manual...

  • Page 99: Appendices

    Appendix E — Transferring/Restoring Files ........A-11 Appendix F — IB-130 Interface Module ........... A-13 Appendix G — Number of Scans ............. A-18 Appendix H — Special 5 VDC MS-810 ..........A-21 Appendix I — Using the IB-105 ............A-22 Appendix J — Troubleshooting ............A-28 Appendix K —...

  • Page 100: Appendix A - Scanner Specifications

    (6.58 cm) Stop Bits: 1, 2Data Bits: 7, 8 (2 places) Protocols Bottom Point-to-Point, Point-to-Point w/RTS/CTS, Point-to- Point w/XON/XOFF, Point-to-Point w/RTS/CTS & XON/XOFF, Polling Mode D, Multidrop, User Defined, Figure A-1 MS-810 Dimensions User Defined Multidrop. MS-810 Industrial Scanner User’s Manual...

  • Page 101: Table A-1 Range Data

    Enclosure: Die-cast aluminum, IP65 rated FIS Options Operating Temperature (inside ambient): Each MS-810 model is identified by an FIS (final 32° to 122°F (0° to 50°C) instruction sheet) number that refer to a set of Storage Temperature: –20° to 158°F (–29° to options.

  • Page 102: Appendix B - Electrical Specifications

    Optoisolator Connection Diagrams for 10-28 Volt With the MS-810 scanner’s optoisolator, input and output signals can be isolated from the scanner’s internal circuitry. Please carefully observe the following schematics and their indicated current limitations before connecting to power.
  • Page 103 Pin 11 & 5 (- outputs 1 & 2) Pin 4 (GND) LOAD MS-810 Pin 1 (+10-28V) 10-28V Pin 7 & 14 (+ outputs 1 & 2) (Load Signal) Pin 11 & 5 (- outputs 1 & 2) (Load) Pin 4 (GND) MS-810 Industrial Scanner User’s Manual...
  • Page 104 Isolated SECONDARY RELAY or RELAY ACTIVATION CIRCUIT. MS-810 (Non-isolated application would Pin 1 (+10-28V) connect MS-810 and LOAD Power and/or GND.) Pin 7 & 14 (+ outputs 1 & 2) Pin 11 & 5 (- outputs 1 & 2) Pin 4 (GND) MS-810...
  • Page 105 PULL-UP resistor. Pin 15 (trigger–) Source Signal Pin 4 (GND) SOURCE SOURCE configured to "SOURCE" Pin 1 (+10-28V) 10-28V activation current. Shows optional Source Pin 9 (trigger+) PULL-DOWN resistor. Signal Pin 15 (trigger–) Pin 4 (GND) MS-810 Industrial Scanner User’s Manual...
  • Page 106 Voltage/ Current.) Pin 15 (trigger-) SOURCE MS-810 Isolated PLC configured to "SINK" +24V TRIGGER current. (Output must be Pin 9 (trigger+) capable of sinking required Voltage/ Current.) Pin 15 (trigger-) TRIG MS-810 Industrial Scanner User’s Manual...

  • Page 107: Appendix C - Ground And Shield Considerations

    Figure A-3 Grounding Diagram, Scanner-Host scanner, and their power sup- plies are connected to a common earth ground. MS-810 Industrial Scanner User’s Manual...

  • Page 108: Appendix D - Ascii Table

    Chapter A Appendix D — ASCII Table Table A-4 ASCII Table with Control Characters Ctrl " & < > A-10 MS-810 Industrial Scanner User’s Manual...

  • Page 109: Appendix E - Transferring/Restoring Files

    The MS-810 ESP offers a variety of options for receiving, saving, and defaulting config- uration files. Receiving Settings from the MS-810 If you want your host computer to receive the current settings from the MS-810, click RECEIVE FROM SCANNER. Note : If receiving scan data and you are in Continuous Read, symbols being scanned may interfere with your data request.
  • Page 110 3. Momentarily short these wires and listen for a series of short beeps. 4. Within 3 seconds, short them again. A longer beep should be heard. If not, repeat the process. A-12 MS-810 Industrial Scanner User’s Manual...

  • Page 111: Appendix F - Ib-130 Interface Module

    The network port is used for multidrop or daisy chain configurations. See next page for configura- tion diagrams and a list of cables offered by Microscan for ease of connectivity when using the IB-130.
  • Page 112 T r i g g e r S c a n n e r P o w e r MS-810 This configuration allows the scanners to operate independently, communicating directly with the host. Typical configuration: MS-810 scanner IB-130: 99-400005-01 (1 per MS-810) 61- 100031 ( 6 Feet ) RS-232 Serial Cable: 61-300026 (for To PC To H ost...
  • Page 113 Load Pins 6, 8, & 15 Note: Only one (+ outputs 1, 2, & 3) relay can be connected in Pin 17 (– outputs 1, 2, & 3) this mode Input Pin 7 (GND) A-15 MS-810 Industrial Scanner User’s Manual...
  • Page 114 Load activation circuit. (Non-isolated Pins 6, 8, & 15 RELAY application would connect scanner Pin 17 and LOAD Power Pin 7 (GND) and/or GND.) Note: Only one relay can be connected in this mode A-16 MS-810 Industrial Scanner User’s Manual...
  • Page 115 PULL-DOWN resistor. Signal Pin 10 (trigger+) Pin 7 (GND) Source IB-130 Isolated PLC configured to Pin 10 (trigger+) TRIG "Source" Trigger current. (Output must be capable of supplying required Voltage/ Current.) Pin 7 (GND) A-17 MS-810 Industrial Scanner User’s Manual...

  • Page 116: Appendix G - Number Of Scans

    1. The -3 component in the formula is included to allow for AGC acquisition, an incomplete first scan, and an incomplete last scan. This applies only if the number inside the parentheses equals 4 or more. If the number equals 3, then only subtract 2 to derive 1 good scan. A-18 MS-810 Industrial Scanner User’s Manual...

  • Page 117: Figure A-7 Label Dimensions

    300 to 800 scans per second. A slower scan rate may allow greater label range and/or higher decode rates, but at the cost of fewer scans per label. To adjust the scan rate (motor speed), see Factory Settings in the Setup menu. A-19 MS-810 Industrial Scanner User’s Manual...
  • Page 118 Gain and Tracking These adjustments, typically made by qualified technicians, are done from within the Scanner Setup menu (see “Setup Menu” on page 2-39). Changes to tracking will generally have a limited effect on decode rates. A-20 MS-810 Industrial Scanner User’s Manual...

  • Page 119: Appendix H - Special 5 Vdc

    Special 5 VDC MS-810 Appendix H — Special 5 VDC MS-810 A 5 Volt version of the MS-810 is available for special applications which requires the scanner to have 5 volts input or connections congruent with the IB-105 adaptor box.

  • Page 120: Appendix I - Using The

    Chapter A Appendix I — Using the IB-105 : The IB-105 can only be used with the 5V version of the MS-810. Important Note It cannot work with the 10 to 28 VDC version. P/N: 99-420001 The IB-105 is a separately sold item that provides additional functionality to the MS-810.

  • Page 121: Table A-6 Ib-105 Trigger Connector

    Relay contact normally open (up to 1watt) Host RS-232 TXD (RS-232) VCC (+5V) Host RS-232 RXD (RS-232) VBB (+12V, if using Microscan’s stan- Host RS-232 RTS or under software dard object detector control aux RS-232 TXD, or RS-485 transmitter enable (out)

  • Page 122: Table A-10 Ib-105 Lan (Rj11) Connector

    Default Switch Provides a convenient way to restore factory configuration settings to the scanner. This switch is recessed to prevent accidentally defaulting the scanner. For default instruc- tions, see “Transferring/Restoring Files” on page A-11. A-24 MS-810 Industrial Scanner User’s Manual...
  • Page 123 Connects the +5V supply (pin 3 of power connector) to the IB-105. Power Connector Designed to accept the standard +5V Microscan power supply. Chassis ground must be properly connected for the IB-105 and scanner to pass all regulatory requirements (FCC, CE, CISPER-22).
  • Page 124 This configuration has the same features as the previous configurations except that the Scanner connector pins for TXD, RXD, CTS, RTS are used by the MS-810 for 422 com- munications. So to connect an RS-232 terminal to the MS-810, the IB-105 converts these signals to RS-232 levels and back.
  • Page 125 1. Access to the configuration menus of a scanner that is in a polled mode can be forced (without <D> defaulting) by sending the command from an auxiliary terminal via the auxiliary RS-232 port. A-27 MS-810 Industrial Scanner User’s Manual...

  • Page 126: Appendix J - Troubleshooting

    The MS-810 scanner when used correctly should produce good reads. If not, table A-12 lists some of the more common problems associated with setting up and using the scanner. If you are unable to locate or correct the problem, call your Microscan representative.
  • Page 127 Ensure the bar code is in the scan line when it ing direct laser light is supposed to be. Ensure that the bar code is pitched or skewed slightly so as to avoid specular reflection. A-29 MS-810 Industrial Scanner User’s Manual...
  • Page 128 Trigger circuit not correctly triggered mode scanner requirements. (See“Attach Cabling” wired (trigger not work- on page 1-3.) ing) Check detector range and sensitivity. Object detector inoperative Try a detector that is known to be good. A-30 MS-810 Industrial Scanner User’s Manual...

  • Page 129: Appendix K - Bar Code Symbology

    • the speed of the conveyor • label printer capabilities Microscan standard scanner firmware supports the following five bar code symbologies. (Firmware can also be custom ordered to support other symbologies.) Code 39. An alphanumeric code with unique start/stop code patterns, composed of nine black and white elements per character, three of which are always wide.

  • Page 130: Appendix L - Interface Standards

    Interface Standards, established by the Electronic Industries Association (EIA), specify such things as the signaling voltage levels, maximum cable lengths, and number of drivers. With Microscan devices, selection of interface is made by pin assignment and, in the case of the host communications, by software switching between RS-232 and RS-422.

  • Page 131: Appendix M - Multidrop Communications

    LRC (longitudinal redundancy check) character. If the concentrator (or controller) receives the data from the scanner and is able to validate it with an LRC calculation, it responds with an ACK (acknowledgment). If the scanner in A-33 MS-810 Industrial Scanner User’s Manual...

  • Page 132: Figure A-11 Select Sequence

    02T/00012. (The 02 at the beginning of the string is the scanner’s address.) Select Reset • If the scanner receives bad data from the concentrator, it transmits a SEL (its select A-34 MS-810 Industrial Scanner User’s Manual...

  • Page 133: Table A-12 Multidrop Address Characters

    Table A-12 Multidrop Address Characters Poll Select Poll Select Multidrop Multidrop Character Character Character Character Address Address ASCII ASCII ASCII ASCII " & < > 1. For additional information on Multidrop, see the MS-5000 Multidrop Concentrator User's Manual. A-35 MS-810 Industrial Scanner User’s Manual...

  • Page 134: Appendix N - Glossary Of Terms

    Good Read. The event that occurs when a label's data is accurately scanned and decoded. Intercharacter Gap. The extra space between the last element of one character and the first element of the adjacent character of a specific bar code symbol. A-36 MS-810 Industrial Scanner User’s Manual...
  • Page 135 Picket Fence Label Orientation. A bar code label in which the bars are perpendicular to the label’s direction of travel. Pitch. Label (or scanner) rotation around the center a line perpendicular to the label’s bars. A-37 MS-810 Industrial Scanner User’s Manual...
  • Page 136 Skew. Label (or scanner) rotation around the center of the skew axis. Specular Reflection. The direct, mirror-like reflection of laser light back to the scan- ner, causing over-light saturation. For the MS-810 scanner, specular reflection is avoided A-38 MS-810 Industrial Scanner User’s Manual...
  • Page 137 Timeout. A user-selected period of time that ends a scanner's read cycle. Tracking. Parameter of analog-to-digital converter that affects the accuracy to the dig- itized signal. Wild Card. User-defined character entered into a master label to permit matches with variable characters. A-39 MS-810 Industrial Scanner User’s Manual...
  • Page 138 Chapter A A-40 MS-810 Industrial Scanner User’s Manual...
  • Page 139 Check Digit Output (Codabar) 2-27 Delete Master Label Information 4-10 Check Digit Output (Code 39) 2-26 Discrete I/O A-4 Check Digit Output (I 2 of 5) 2-28 DTE Host Connection 1-3 Codabar 2-26, 3-13, A-31 Codabar Only 4-15 MS-810 Industrial Scanner User’s Manual...
  • Page 140 Good Decode Reads 2-21, 3-11 Loss of communications 3-4 Good Read Counter 4-7 LRC 2-15 Ground Loops A-9 Master Label 4-9 Half duplex 3-5 Match Code 2-22, 3-11, 4-9 Half Duplex Mode 2-8 Match Counter 4-7 Host Connector MS-810 Industrial Scanner User’s Manua...
  • Page 141 Number of Scans 1-11, A-18 Protocol 3-5 Protocol Commands 3-8 Protocol Menu 2-12 Operating Environment A-3 Pulse Width 2-34, 3-16 Operating Life A-2 Operation Commands 3-10 Operation Menu 2-16 Quiet Zones 2-30 Operations Status Request 3-12 MS-810 Industrial Scanner User’s Manual...
  • Page 142 Technische Daten xii Scan Width Angle A-2 Tilt 1-5 Scan Width definition A-19 Timeout 2-19 Scanner 4-6 Timeout & New Trigger 2-19, 3-10 Scanner Connector Timeout (end of read cycle option) 2-19, 3-10 IB-130 A-13 MS-810 Industrial Scanner User’s Manua...
  • Page 143 UPC/EAN 2-29, 3-14, A-31 User Defined 3-6 User Defined Multidrop 2-14, 3-6 User Defined Point-to-Point 2-13 Vorsichtsmaßnahmen xi Warning Summary ix Warnung xii Warranty Information iv When to Output 2-35, 3-16 Wild Card 2-23 Wild Card Character 2-24 MS-810 Industrial Scanner User’s Manual...

  • Page 144: Index

    Index MS-810 Industrial Scanner User’s Manua...

Table of Contents
