Chapter 7
Laser On Position
Definition: Percentage of the full scan arc that the
scan beam moves through before the
laser turns ON. For example, if set for
30, the laser will be off during the first
30 percent of the scan.
When Laser Framing is disabled, the
laser is ON for 100 percent of the full
scan. When Laser Framing Status is
enabled, the laser remains OFF from
the start of the scan and remains OFF
for the specified percentage of the
scan, which is up to 70 percent of the
scan, as specified by this command.
Serial Cmd: <K700, laser on/off status,laser framing
tion,laser off position,laser power>
Default: 10
Options: 1 to 70
MS-3 Laser Scanner User's Manual
Scanner Setup
Laser On
Position

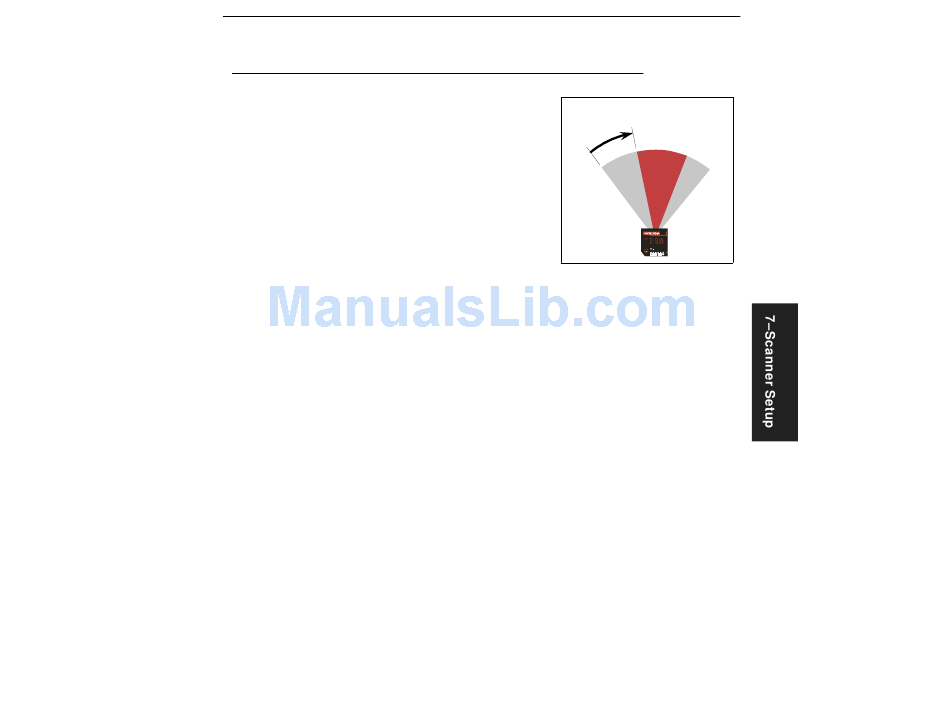

Figure 7-1 Laser On Position

status,laser on posi-
7-7
