Microscan MS-3 User Manual page 197

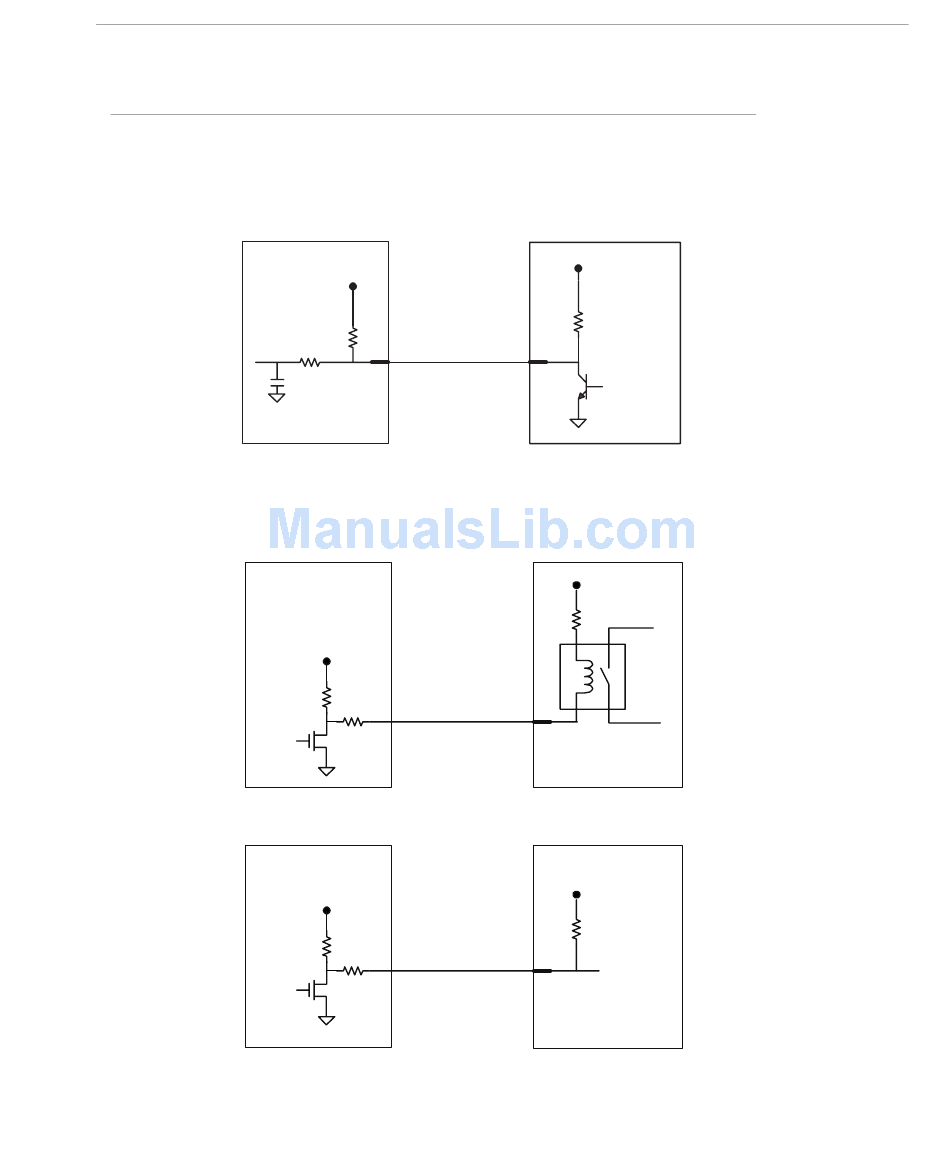

Direct Input/Output Scanner Diagrams
Trigger Input Example
Trigger, New Master Inputs: 3 to 24 V rated, 1 mA @ 5 VDC
Output Examples
Outputs (1, 2, 3): 5 V TTL compatible, can sink 10 mA and source 2 mA
Scanner
+5VDC
Pin 9 (trigger)
Scanner
+5VDC
Pins 7,11,14
(outputs)
Scanner
+5VDC
Pins 7,11,14
(outputs)
Chapter Appendices
Source
V
3-24V
Source
Signal
Target
+VDC
RELAY
Target (PLC, PC,
Light Stack, etc.)
+VDC
Signal
MS-3 Laser Scanner User's Manual
A-5
